- 7th generation Intel® Core™ i5-7260U processor
- Intel® Iris™ Plus Graphics 640
- Two DDR4 SO-DIMM sockets (up to 32 GB, 2133 MHz)
- M.2 slot with flexible support for a 42 or 80 mm M.2 SSD
- Intel® Dual Band Wireless-AC 8265 and Bluetooth 4.2
- Back panel DC power connector (12–19V)
- One full-size HDMI 2.0
- Intel® Gigabit LAN
- Two USB 3.0 ports on the back panel
- Thunderbolt 3 port with support for USB 3.1 gen 2, DisplayPort* 1.2 and 40 Gb/s Thunderbolt
- Kensington lock support
- Micro SD card slot
- Two USB 3.0 ports (including one charging port) on the front panel
- Front panel headphone/microphone jack
- Dual-array front microphones

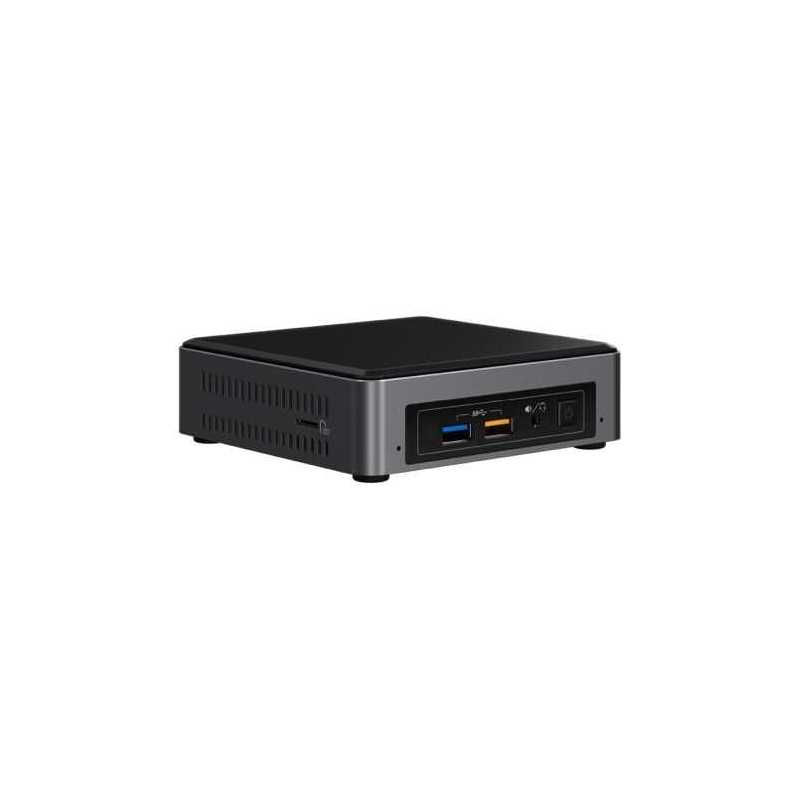

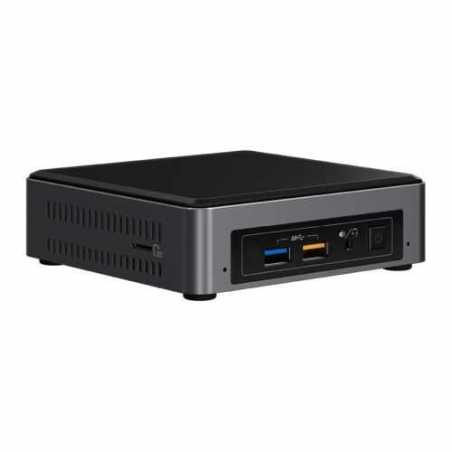

Get ready for truly responsive performance. The newest member of the Intel® NUC family is built with a dual-core 7th generation Intel® Core™ i5 processor. The Intel NUC Kit NUC7i5BNK gives you the performance to turn the Intel NUC into a powerhouse of productivity and play, running analytics and working late into the night, or streaming your favourite movies and music to unwind at the end of your day.
New Features Let You Use Windows® 10 To Its Full Potential
The Intel NUC7i5BNK has some cool new features including dual-array front microphones so you can take advantage of Cortana’s* capabilities if you install Windows® 10 with no additional hardware needed. There’s also a front power button and a multi-color LED ring so you can personalize the NUC with the look you want, along with 7.1 surround sound via the HDMI* port so that you can be deeply immersed in your music, movies, and games. Or listen with headphones via the front microphone/audio jack. The choice is yours. With four USB 3.0 ports, including a charging port, you can connect a USB keyboard, mouse, and printer, and still have room to charge your phone or connect external storage.
Intel® Iris™ Plus Graphics and Thunderbolt™ 3
Intel® Iris™ Plus Graphics lets you see images in brilliant 4K and adds better clarity, letting you see data visualizations or on screen text in brilliant definition. The Intel NUC7i5BNK can connect up to three 4K monitors so you can spread your work out across screens. The kits also come with Thunderbolt™ 3 which supports up to 40 Gbps transfer speeds for your intensive data needs and has built-in 10 GbE for networking with another Thunderbolt 3 system.
Cut The Cords, Not The Performance
Each kit comes with Intel® 802.11ac wireless, Intel’s fastest wireless available today, for connectivity right out-of-the-box. This makes it simple to immediately access files in the cloud, and with built-in Bluetooth* 4.2, you can connect wireless peripherals like headsets and keyboards.
