- Out of stock

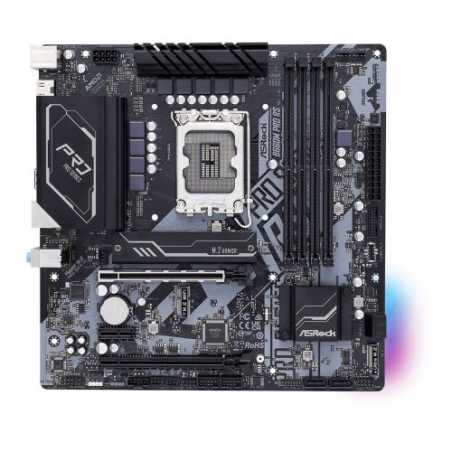

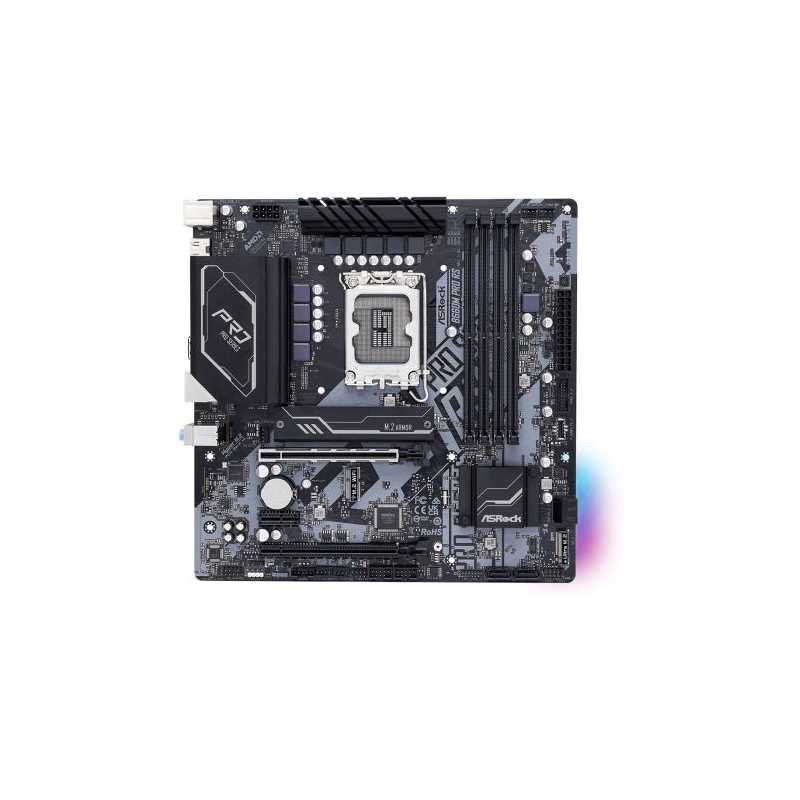

Asrock B660M PRO RS, Intel B660, 1700, Micro ATX, 4 DDR4, HDMI, DP, PCIe4, RGB, 2x M.2
£117.82
VAT included
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 8 Phase Power Design
- Supports DDR4 4800MHz (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- 1 M.2 Key-E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
- 1 Hyper M.2 (PCIe Gen4 x4)
- 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 7 USB 3.2 Gen1 (4 Rear, 2 Front, 1 Front Type-C)
- 6 USB 2.0 (2 Rear, 4 Front)
- Intel® Gigabit LAN
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
B660M PRO RS
Data sheet
- .
- 1 x USB 3.2 Gen11 x Front Panel Type-C USB 3.2 Gen1 Header
- Wireless
- -
- RAM Speeds
- up to 4800+(OC)
- Accessories
- Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets1 x Standoff for M.2 Socket
- USB Ports Supported
- 6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)1 x USB 3.2 Gen1 Type-C front panel connector
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2280 ) - SATA & PCIe
- RAID
- Supports RAID 0,1, 5,10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1700
- Chipset
- Intel B660
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD CrossFire
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Back Panel I/O Ports
- 3 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard1 x HDMI1 x DisplayPort 1.44 x USB 3.2 Gen12 x USB 2.01 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x SPI TPM1 x Chassis Intrusion and Speaker1 x RGB LED3 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan3 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Panel Audio1 x Thunderbolt AIC2 x USB 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 2 x PCIe 4.0 x161 x PCIe 3.0 x1
Specific References
- EAN13
- 4710483936524
