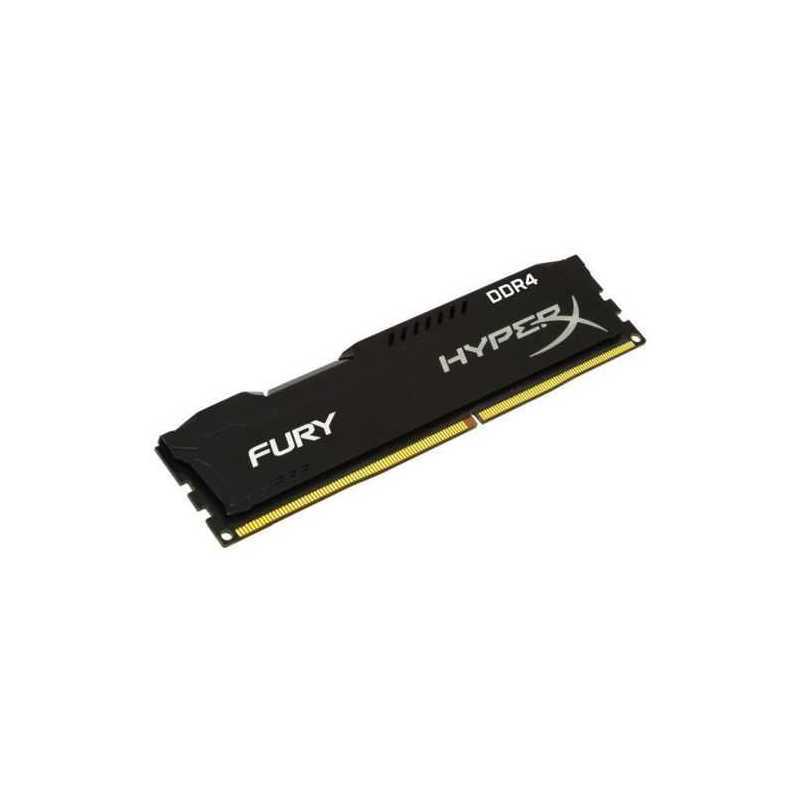

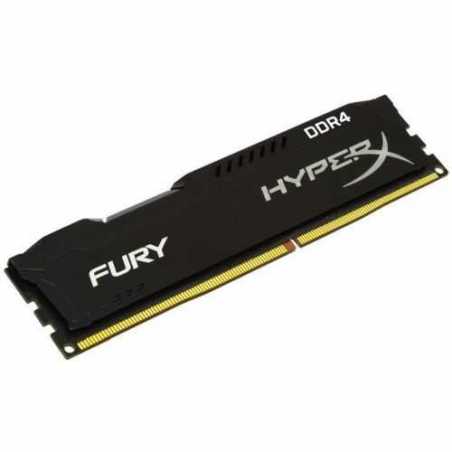

HyperX Fury Black 4GB, DDR4, 2400MHz (PC4-19200), CL15, 1.2V, XMP 2.0, DIMM Memory
£27.26
VAT included
HyperX HX424C15FB/4 is a 512M x 64-bit (4GB) DDR4-2400 CL15 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 512M x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-2400 at a low latency timing of 15-15-15 at 1.2V.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP - 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- Height 1.340” (34.04mm), w/heatsink
Unleash your style. Unleash your FURY.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP - 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for
- data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- Height 1.340” (34.04mm), w/heatsink
HyperX HX424C15FB/4 is a 512M x 64-bit (4GB) DDR4-2400 CL15 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 512M x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0.
HX424C15FB/4
Data sheet
- Warranty
- Lifetime
- DDR Type
- DDR4
- Package Type
- Retail
- Package Weight
- 0.0225 kg
- Heatsink
- Yes
- Series
- Kingston HyperX Fury
- Size
- 1 x 4GB
4GB - Speed
- 2400 MHz
- Compliance
- PC4-19200
- Pins
- 288-pin
- CAS Latency
- CL15
- Data Integrity Check
- Non-ECC
- Low Voltage
- No
- Voltage
- 1.2V
- Additional Information
- See Overview
- Timings
- 15-15-15
- LED Lighting
- No
- Individual Module Size
- 4GB
- Total Capacity
- 4GB Total
Specific References
- EAN13
- 740617244335
