- Out of stock

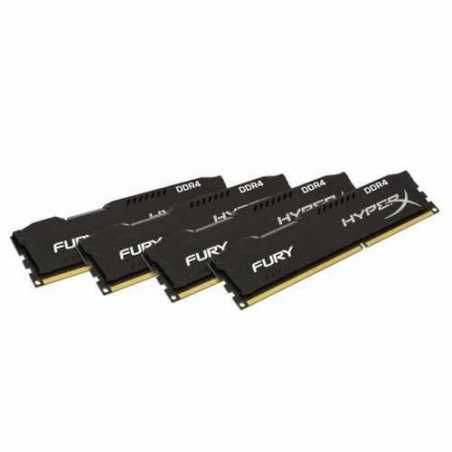

HyperX Fury Black 32GB Kit (4 x 8GB), DDR4, 2400MHz (PC4-19200), CL15, 1.2V, XMP 2.0, DIMM Memory
£211.90
VAT included
32GB (8GB 1G x 64-Bit x 4 pcs.) DDR4-2400 CL15 288-Pin DIMM
HyperX HX424C15FBK4/32 is a kit of four 1G x 64-bit (8GB) DDR4-2400 CL15 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 32GB. Each module has been tested to run at DDR4-2400 at a low latency timing of 15-15-15 at 1.2V.
Features
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP - 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- Height 1.340” (34.04mm), w/o heatsink
Description
Specification
- Series: Kingston HyperX Fury
- DDR Type: DDR4
- Size: 4 x 8GB
- Speed: 2400 MHz
- Compliance: PC4-19200
- Pins: 288-pin
- CAS Latency: CL15
- Data Integrity Check: Non-ECC
- Low Voltage: No
- Voltage: 1.2V
- Timings: 15-15-15
- Heatsink: Yes
- #Hide#LED Lighting: No
- Additional Information: See Overview
- Package Type: Retail
- Package Weight: 0.0225 kg
- Warranty: Lifetime
HX424C15FB2K4/32
Data sheet
- Warranty
- Lifetime
- DDR Type
- DDR4
- Package Type
- Retail
- Package Weight
- 0.0225 kg
- Heatsink
- Yes
- Series
- Kingston HyperX Fury
- Size
- 4 x 8GB
- Speed
- 2400 MHz
- Compliance
- PC4-19200
- Pins
- 288-pin
- CAS Latency
- CL15
- Data Integrity Check
- Non-ECC
- Low Voltage
- No
- Voltage
- 1.2V
- Additional Information
- See Overview
- Timings
- 15-15-15
Specific References
- EAN13
- 740617240672
