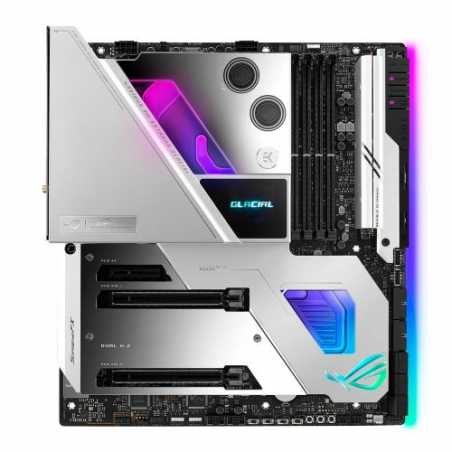

Asus ROG MAXIMUS XIII EXTREME GLACIAL, Intel Z590, 1200, EATX, 4 DDR4, SLI, HDMI, Thunderbolt 4, AX Wi-Fi, 10GB & 2.5GB LAN, RGB

Data sheet

.

ROG DIMM.2 with Heatsink1 x ROG DIMM.2 with heatsink1 x M.2 pad for ROG DIMM.22 x M.2 screw package for ROG DIMM.2Misc1 x ASUS Wi-Fi moving antennas1 x Q-connector1 x ROG CLAVIS DAC1 x ROG key chain1 x ROG logo plate stickers1 x ROG screwdriver1 x ROG sti

Wireless

Intel Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5/6GHz frequency bandBluetooth v5.2 hardware ready

RAM Speeds

up to 5333(OC)

Accessories

1 x 1-to-3 ARGB splitter cable2 x 1-to-4 fan splitter cable1 x RGB extension cable3 x ROG weave SATA 6G cables1 x 3-in-1 Thermistor cables packROG Fan Controller1 x ROG Fan Controller1 x Fan EXT PWR cable1 x ARGB input cable1 x USB input cable1 x ROG Fan

USB Ports Supported

2 x Thunderbolt 4 USB-C (at back)8 x USB 3.2 Gen2 Type-A (at back)4 x USB 3.2 Gen1 (at mid-board) 4 x USB 2.0 (at mid-board)1 x USB 3.2 Gen2x2 connector Type-C at mid-board1 x USB 3.2 Gen2 connector Type-C at mid-board

Storage

6 x SATA III2 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280) - PCIe*1 x DIMM.2_1 via ROG DIMM.2 (2242/2260/2280/22110) - SATA & PCIe1 x DIMM.2_1 via ROG DIMM.2 (2242/2260/2280/22110) - PCIe*This slot is only active with 11th gen CPUs

RAID

RAID 0, 1, 5, 10

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

Extended ATX

Socket

Intel 1200

Chipset

Intel Z590

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

Maximum Memory

128GB

Multi-GPU Support

Supports NVIDIA 2-Way SLI Technology

LAN

10GB LAN & 2.5GB LAN

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Back Panel I/O Ports

2 x Thunderbolt 4 USB Type-C8 x USB 3.2 Gen2 Type-A1 x HDMI1 x ASUS Wi-Fi Module1 x Marvell AQtion AQC113CS 10Gb Ethernet1 x Intel I225-V 2.5Gb Ethernet5 x LED-illuminated audio jacks1 x Optical S/PDIF out1 x BIOS FlashBack button 1 x Clear CMOS button

Internal I/O Connectors

1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan2 x 4-pin Chassis Fan2 x 4-pin Radiator Fan2 x W_PUMP+1 x WB_SENSOR1 x 2-pin Water In1 x 2-pin Water Out1 x 3-pin Water Flow1 x 24-pin Main2 x 8-pin +12V1 x 6-pin PCIe Graphics Card

CPU Support

Click here for CPU support

Package Type

Retail

Graphics Ports

1 x HDMI 2.0*2 x Thunderbolt 4 (USB-C) - support DisplayPort 1.4 and Thunderbolt outputs*Only Intel 11th Core processors support HDMI 2.0, others will support HDMI 1.4

Additional Features

See Overview

Graphics

Integrated Graphics**Graphics specifications may vary between CPU types

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

2 x LAN

Max LAN Speed

10GB LAN

RGB Lighting

Yes (RGB)

PCI/PCI Express

2 x PCIe 4.0 x161 x PCIe 3.0 x4

Wi-Fi

Yes (Wi-Fi)
