- Out of stock

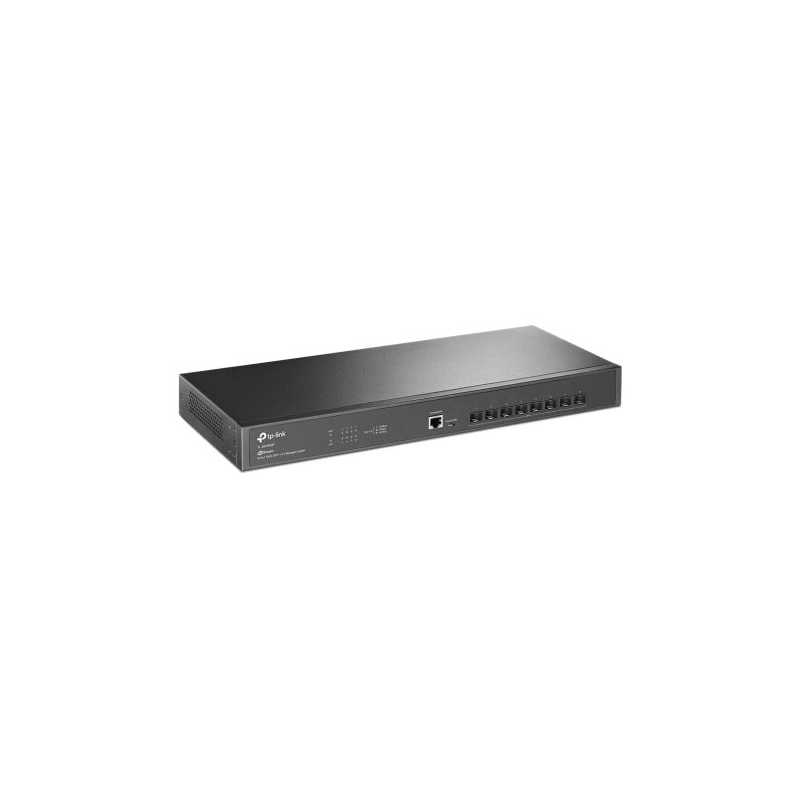

TP-LINK (TL-SX3008F) JetStream 8-Port 10GE SFP+ L2+ Managed Switch, Centralized Management, Fanless, Rackmountable
£219.05
VAT included
JetStream 8-Port 10GE SFP+ L2+ Managed Switch
- 10G Lightning-Fast Connections: 8x 10 Gbps SFP+ Ports enable high-bandwidth connectivity and non-blocking 160 Gbps switching capacity.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Easy and convenient management with cloud access and Omada app.
- Static Routing: Route internal traffic for the efficient use of network resources.
- Robust Security Strategies: Keep your data safe with systems including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, and Radius Authentication.
- Voice and Video Application Optimization: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Full Fiber Switch with Lightning-Fast 10G
Build and expand your lightning-fast network with TP-Link TL-SX3008F - a fully managed switch with full 8-port 10G fiber ports and 160 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.#
Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features**
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.
Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.
Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.
ISP Features
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.
IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.
*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
**L3 and ISP features can only be configured in standalone mode.
TL-SX3008F
Data sheet
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Dimensions
- (W x D x H) 440 x 180 x 44 mm
- Power Supply
- 100-240 V AC~50/60 HzMax Power Consumption: 15.46 W (220 V / 50 Hz)
- Interface(s)
- 8 x 10GE SFP+ Slots1 x RJ45 Console Port1 x Micro-USB Console Port
- Package Contents
- SwitchPower CordQuick Installation GuideRackmount KitRubber Feet
- Rackmountable
- Yes
- Management
- Web-based GUICLI through the console port, telnetSNMP v1/v2c/v3SDM TemplateDHCP/BOOTP Client802.1ab LLDP/LLDP-MEDDHCP AutoInstallDual Image, Dual ConfigurationCPU MonitoringCable DiagnosticsEEEPassword RecoverySNTPSystem Log
- Number of Ports
- 8
- PoE Ports (RJ45)
- -
- Switching Capacity
- 160 Gbps
- Environment
- Operating Temperature: 0–45 °C (32–113 °F)Storage Temperature: -40–70 °C (-40–158 °F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
- Security
- IP-MAC-Port BindingIPv6-MAC-Port BindingDoS DefendStatic/Dynamic Port SecurityBroadcast/Multicast/Unicast Storm Control802.1XAAA (including TACACS+)Port IsolationSecure web management - HTTPS with SSLv3/TLS 1.2Secure CLI management with SSHv1/SSHv2IP/Port
- Advanced Functions
- Support Omada Hardware, Software & Cloud-Based ControllerAutomatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradingIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot ScheduleZTP (Zero-Touch Provisioning)
- Quality of Service
- Advanced Quality of Service
- Mac Address Table
- 32 K
- Packet Forwarding Rate
- 119.04 Mpps
- Jumbo Frame
- 9 KB
- Layer Features
- L2 and L2+ FeaturesLink AggregationSpanning Tree ProtocolLoopback DetectionFlow ControlMirroringL2 MulticastIGMP SnoopingIGMP AuthenticationMLD SnoopingMVRMulticast Filtering: 256 profiles & 16 entries per profileLL3 Features16 IPv4/IPv6 InterfacesStatic
- VLAN
- VLAN Group802.1Q Tagged VLANMAC VLAN: 7 EntriesProtocol VLAN: Protocol Template 16, Protocol VLAN 16Private VLANGVRPVLAN VPN (QinQ)Voice VLAN
- Access Control
- Time-based ACLMAC ACLIP ACLCombined ACLPacket Content ACLIPv6 ACLPolicyACL apply to Port/VLAN
- POE
- No
Specific References
- EAN13
- 6935364006464
