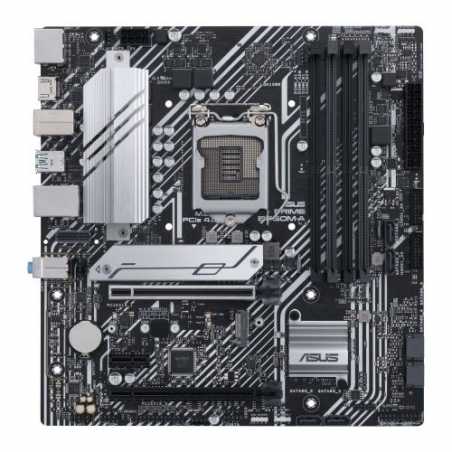

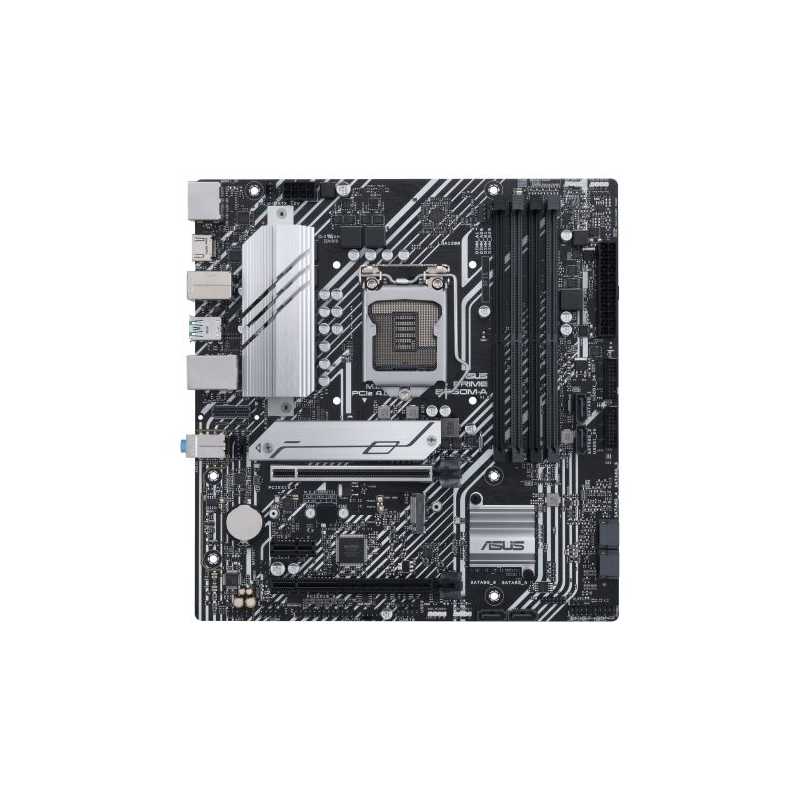

Asus PRIME B560M-A, Intel B560, 1200, Micro ATX, 4 DDR4, 2 HDMI, DP, RGB, 2x M.2

Data sheet

.

1 x COM Port1 x Front Audio1 x LPT header1 x S/PDIF Out1 x SPI TPM (14-1pin)1 x 20-3 pin System Panel

Wireless

-

RAM Speeds

Up to 5000(OC)

Accessories

2 x SATA 6Gb/s cables1 x M.2 Rubber Package1 x M.2 SSD screw package1 x Vertical M.2 Key E bracket set

USB Ports Supported

2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)4 x USB 3.2 Gen1 Type-A (at mid-board)7 x USB 2.0 (4 at back, 3 at mid-board)

Storage

6 x SATA III1 x M.2 (2242/2260/2280) - PCIe*1 x M.2 (2242/2260/2280) - SATA & PCIe*This slot is only active with 11th gen CPUs

RAID

-

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1200

Chipset

Intel B560

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

Maximum Memory

128GB

Multi-GPU Support

-

LAN

GB LAN

Audio

Realtek ALC897 7.1 Surround Sound High Definition Audio CODE

Back Panel I/O Ports

2 x USB 3.2 Gen2 (Type-A & C)4 x USB 2.0 Type-A1 x DisplayPort2 x HDMI1 x Intel I219-V 1Gb1 x V-M.2 slot (Key E)3 x Audio jacks1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan2 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V2 x M.2 slots (Key M)6 x SATA 6Gb/s2 x USB 3.2 Gen12 x USB 2.02 x AURA Addressable Gen22 x AURA RGB1 x Clear CMOS

CPU Support

Click here for CPU support

Package Type

Retail

Package Weight

1.0300 kg

Graphics Ports

2 x HDMI1 x DisplayPort

Additional Features

See Overview

Graphics

Integrated Graphics**Graphics specifications may vary between CPU types

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

Max LAN Speed

GB LAN

RGB Lighting

Yes (RGB)

PCI/PCI Express

1 x PCIe 4.0 x161 x PCIe 3.0 x161 x PCIe 3.0 x1
