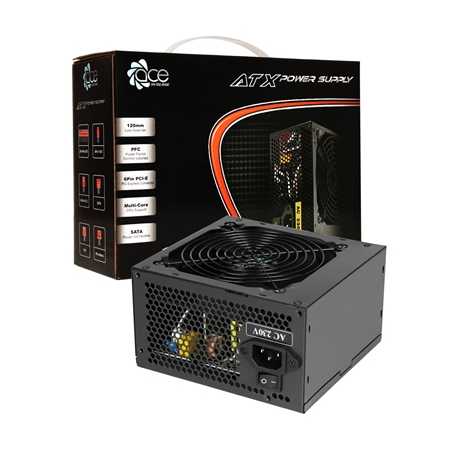

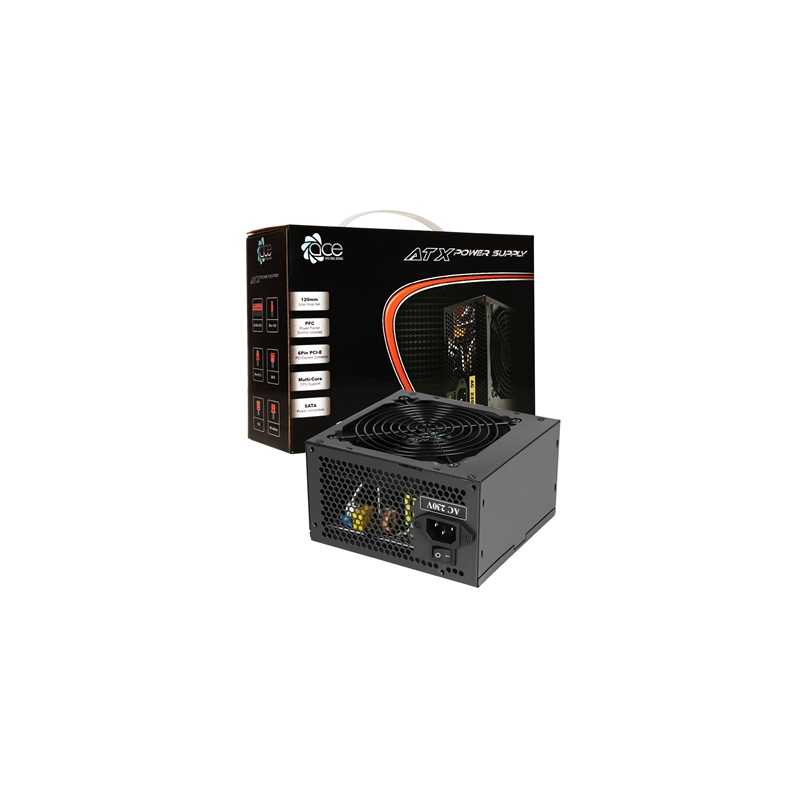

Ace A-550BR 550W 120mm Black Silent Fan PSU

Ace PSUs are certified RoHS compliant and with power factor control-giving you a safe and stable foundation to build your system from. Ace PSUs come with a superb 12cm fan that offers a quiet operation but with excellent cooling meaning you are working in a more peaceful environment and the right cooling ensures maximum lifespan of your products. Supplied with all the appropriate cables Ace provides maximum compatibility with popular CPU's and mainboards.

Key Features
- Power Factor Control (PFC)
- Cooling: 12cm Black Fan
- New Version ATX1.3/2.03
- Silent with better ventilation
- ATX 12V compliant for most CPUs and mainboards
- Input Range: 230Vac, 5A, 50-60Hz
- 3 x SATA Connectors
- 2 x Molex Connectors
- 20+4 Pin Motherboard Connector

Wattage
550W

Input Voltage
230 VAC

Input Current
5A

Input Frequency Range
50-60Hz

Power Factor Control (PFC)
Yes

Power Good Signal
150-450 ms

Hold Up Time
1ms-40ms

Efficiency
75%

MTBF
100,000 Hours

Protection
OVP / UVP/ OPP

Operation Temperature
45C

Safety
CE / ROHS

Cooling
120mm Black Fan

Noise
< 17 dBA

Connections
1 x 20+4 Pin Mainboard
1 x 4+4 Pin 12V
3 x SATA
2 x 4-Pin Molex
1 x Floppy Drive

What's In The Box
PSU
Manual
Screws
Cable Ties

Product Dimensions ( W x H x D )
150mm x 85mm x 140mm

Packaging Dimensions ( W x H x D )
230mm x 169mm x 95mm

Weight
Net: 1.01 KGs
Gross: 1.18 KGs
