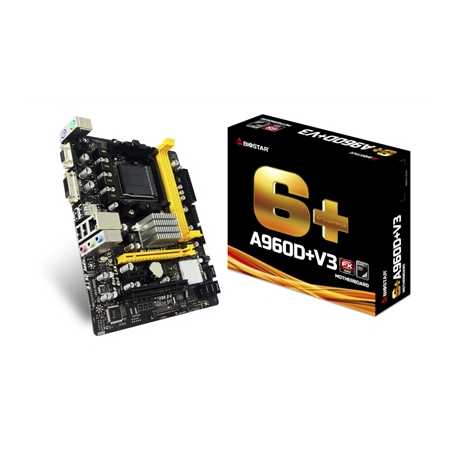

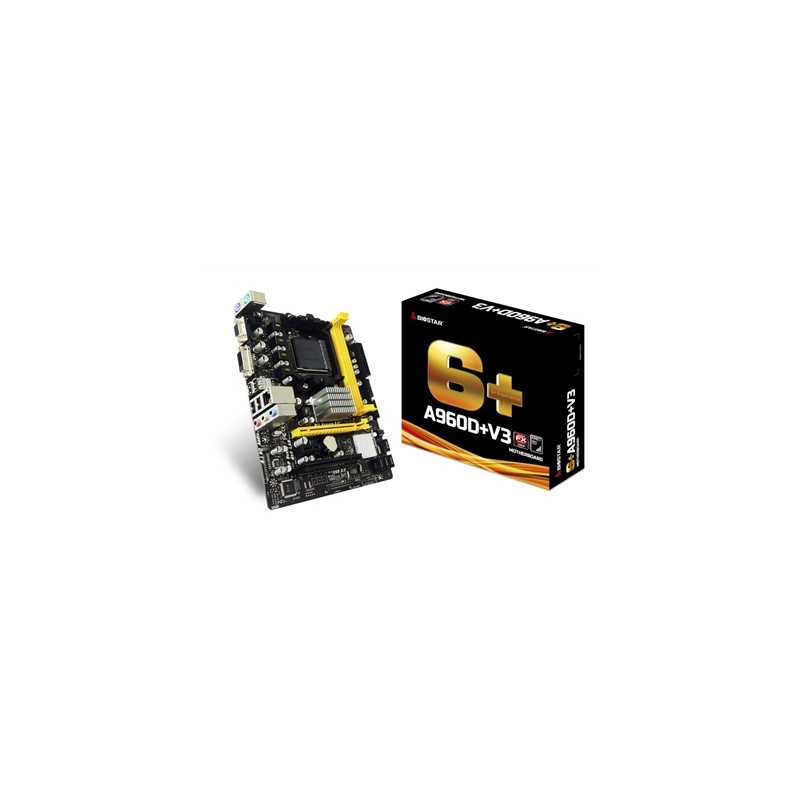

Biostar A960D+V3 AMD Socket AM3+ Micro ATX VGA/DVI DDR3 Motherboard

- Socket AM3+
- Supports AMD FX Series/Phenom II Series/Athlon II Series /Sempron Series Processors
- Hyper Transport Technology up to 5.2G
- Support 2-DIMM DDR3-1866(OC)/ up to 16G maximum capacity
- Supports AMD Cool'n'Quiet Technology

Specification

Chipset
AMD 760G / SB710

CPU Support
AMD FX Processor
AMD Phenom II X6 Processor
AMD Phenom II X4 Processor
AMD Phenom II X3 Processor
AMD Phenom II X2 Processor
AMD Athlon II X4 Processor
AMD Athlon II X3 Processor
AMD Athlon II X2 Processor
AMD Sempron Processor
Maximum CPU TDP (Thermal Design Power) : 125Watt

HT
Support HT3.0 up to 5.2GT/s (Depends on AMD CPU Specification)

Memory
Support Dual Channel DDR3 800/1066/1333/1600(OC)/1866(OC) MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory
DDR3-1866 for AM3+ CPU only

Integrated Video
ATI Radeon HD3000 Graphics, On Board Graphic Max. Memory Share Up to 1024 MB

Storage
4 x SATA2 Connector s
1 x IDE Connector
Support SATA RAID: 0,1,10

LAN
Realtek RTL8111H - 10/100/1000Mb/s Controller

Codec
Realtek ALC662 6-Channel HD Audio

USB
4 x USB 2.0 Ports
2 x USB 2.0 Header

Expansion Slot
1 x PCI-E 2.0 x16 Slot
1 x PCI-E 2.0 x1 Slot
1 x PCI Slot

Rear I/O
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 2.0 Ports
1 x DVI Connector
1 x VGA Port
1 x LAN port
3 x Audio Jacks

Internal I/O
1 x Printer Header
2 x USB 2.0 Header
4 x SATA2 3Gb/s Connector
1 x IDE Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector

H/W Monitoring
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

Dimensions
Micro ATX Form Factor Dimension: 23.5cm x 19cm ( W x L )

OS Support
Support Windows XP / Vista / 7 / 8 / 8.1 / 10

Bundled Software
BullGuard
BIO-Remote2
Smart Speed LAN

Accessories
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
