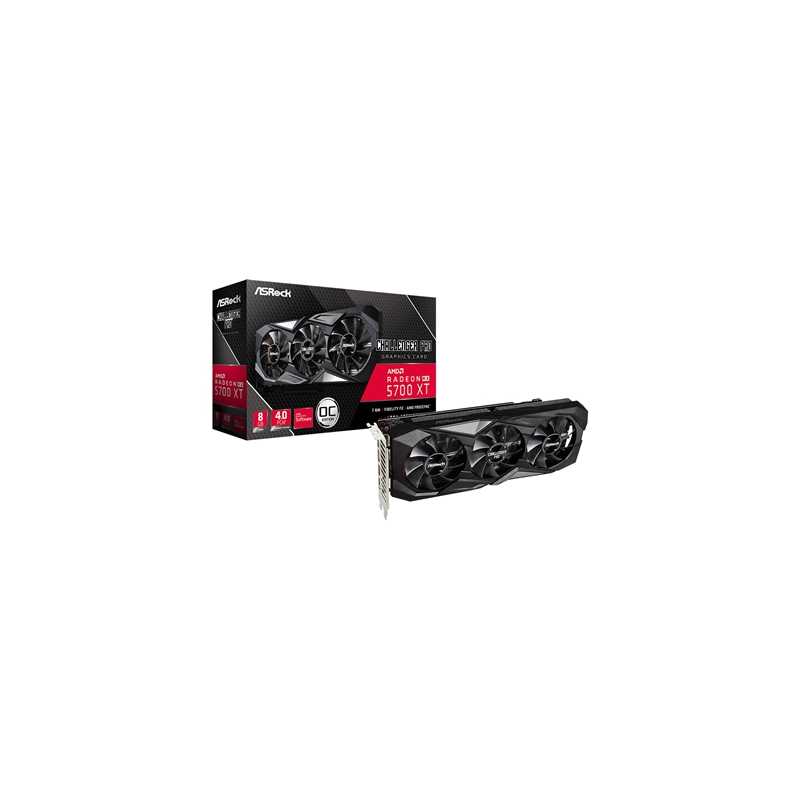

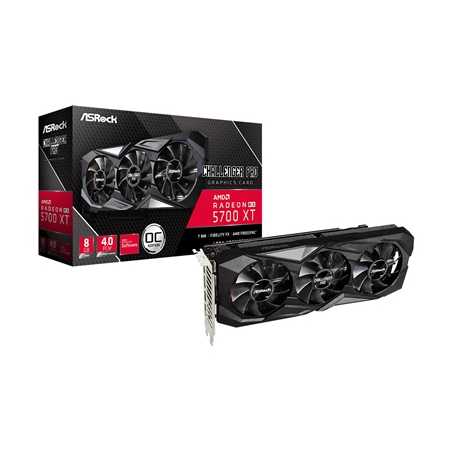

ASRock AMD Radeon RX 5700 XT Challenger Pro 8GB OC Triple Fan Graphics Card

Clock: GPU / Memory
Boost Clock: Up to 1905 MHz / 14 Gbps
Game Clock: Up to 1795 MHz / 14 Gbps
Base Clock: 1580 - 1650 MHz / 14 Gbps

Key Specification
AMD Radeon RX 5700 XT Graphics
2nd Gen 7nm GPU
8GB 256-bit GDDR6
3 x DisplayPort, 1 x HDMI
2 x 8-pin Power Connectors
279 x 118 x 52 mm (without bracket)
291 x 133 x 52 mm (with bracket)

Key Features:
Triple Fan Design
2.7-slot Design
Stylish Metal Backplate
0dB Silent Cooling
ASRock Tweak
AMD Eyefinity Technology
AMD FreeSync

Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.

Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.

2.7-slot Design
Provides more area for the larger heat-sink to enhances the thermal capability to make the graphics card cooler and quieter.

0dB Silent Cooling
Makes the fan stop when the temperature goes low for the complete silence.

Specifications

Graphics Engine
AMD Radeon RX 5700 XT

Bus Standard
PCI Express 4.0

DirectX
12

OpenGL
4.6

Memory
GDDR6 8GB

Engine Clock
Boost Clock: 1905 MHz
Game Clock: 1795 MHz
Base Clock: 1650 MHz

Stream Processors
2560

Memory Clock
14 Gbps

Memory Bus
256-bit

Resolution
8K HDR 60 Hz

Interface
1 x HDMI 2.0b
3 x DisplayPort 1.4 with DSC 1.2a

HDCP
Yes

Multi-View
4

Recommended PSU
650W

Power Connector
2 x 8-Pin

Accessories
Quick Start Guide

Dimensions
279 x 118 x 52 mm (without bracket)
291 x 133 x 52 mm (with bracket)
