- Out of stock

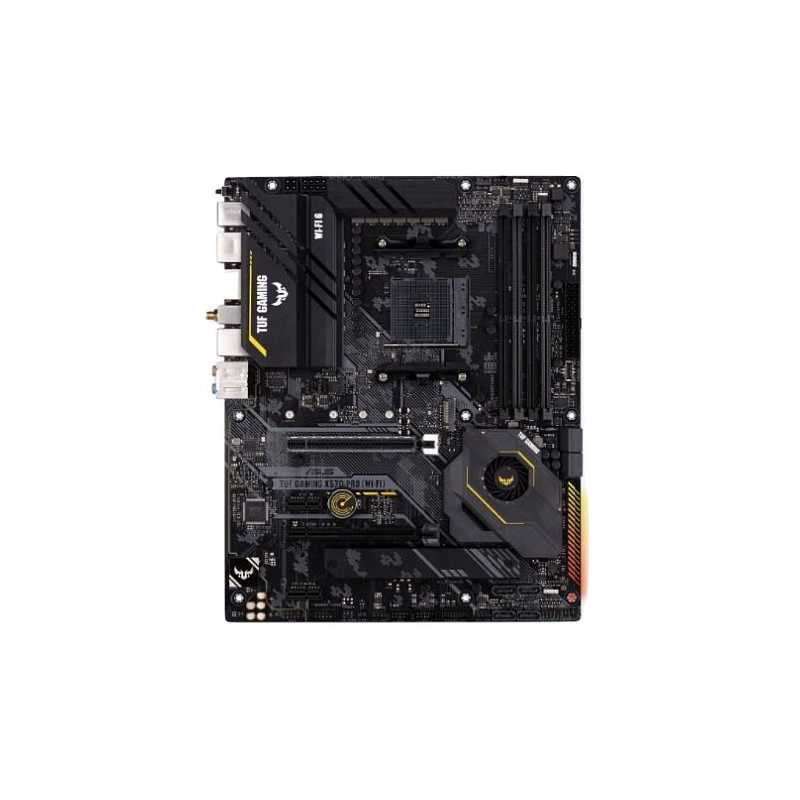

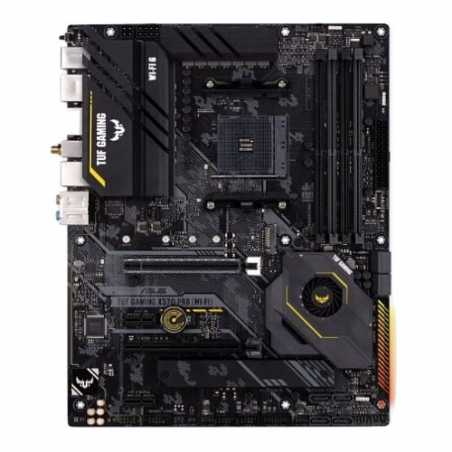

Asus TUF GAMING X570-PRO (WI-FI), AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, XFire, Wi-Fi, 2.5GB LAN, PCIe4, RGB Lighting, M.2
£312.93
VAT included
AMD AM4 X570 ATX gaming motherboard with PCIe 4.0, dual M.2, 2.5G Intel LAN, Wi-Fi 6, 14 Dr. MOS power stages, USB 3.2 Gen 2 Type-C ports and Aura Sync RGB lighting
- AMD AM4 Socket: Ready for 3rd and 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors
- Enhanced Power Solution: 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
- Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
- Gaming Networking: Exclusive onboard 2.5G Intel® LAN, Intel® WiFi 6, Bluetooth 5.1, TUF LANGuard and TurboLAN technology
- Realtek S1200A Codec: Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in
- Aura Sync RGB: Synchronise LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
- TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
Durable. Stable. Reliable.
TUF Gaming X570-Pro (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Pro (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.
Easy PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
TUF Gaming Alliance
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
Immersive Gaming
TUF Gaming X570-Pro (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalised gaming atmosphere.
Intel® WiFi 6 AX200
The Intel® WiFi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimised for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
Intel® 2.5 Gb Ethernet
Intel Ethernet Connection I225-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Network-Optimisation Software For Customisable Packet Prioritisation
Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X - with no expert knowledge. It even includes Game mode to prioritise game-related data transmissions, smoothing network operations every time you play!
Click here for full details
90MB15H0-M0EAY0
Data sheet
- .
- 1 x 8-pin ATX 12V1 x 4-pin ATX 12V1 x Front audio1 x System panel1 x Clear CMOS jumper1 x COM port header1 x USB 3.2 Gen1
- Wireless
- Intel Wi-Fi 6 AX2002x2 Wi-Fi 6 (802.11ax) support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports dual band frequency 2.4/5 GHzSupports channel bandwidth: HT20/HT40/HT80/HT160Supports PCIe interfaceBluetooth v5.1
- RAM Speeds
- 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz
- Accessories
- I/O Shield2 x SATA 6Gb/s cables1 x M.2 Screw Package1 x 2T2R dual band Wi-Fi moving antennas1 x TUF GAMING Sticker1 x TUF Certification card1 x M.2 Rubber Package
- USB Ports Supported
- 1 x USB 3.2 Gen2 Type-C (at back)3 x USB 3.2 Gen2 Type-A (at back)6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)4 x USB 2.0 (at mid-board)1 x USB 3.2 Gen2 Type-C front panel connector
- Storage
- 6 x SATA III2 x M.2 (2242/2260/2280/22110) - SATA & PCIe
- RAID
- RAID 0, 1, 10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM4
- Chipset
- AMD X570
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD 2-Way CrossFireX
- LAN
- 2.5GB LAN
- Audio
- Realtek ALC S1200A 8-Channel High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse combo1 x DisplayPort1 x HDMI1 x LAN (RJ45)1 x Optical S/PDIF out5 x Audio jacks1 x BIOS FlashBack Button1 x ASUS Wi-Fi Module4 x USB 3.2 Gen1 Type-A3 x USB 3.2 Gen2 (Type-A & C)
- Internal I/O Connectors
- 1 x CPU Fan1 x CPU OPT Fan3 x Chassis Fan1 x AIO_PUMP2 x Aura RGB Strip1 x Addressable Gen21 x USB 3.2 Gen2 Type-C2 x USB 2.02 x M.2 Socket 3 with M Key1 x SPI TPM8 x SATA 6Gb/s1 x 24-pin EATX
- CPU Support
- Click here for CPU support
- Package Weight
- 1.8000 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics in the 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 3rd Gen Ryzen CPUs:1 x PCIe 4.0 x16 (x16 mode)2nd & 3rd Gen Ryzen CPUs with Graphics:1 x PCIe 3.0 x16 (x16 mode)2nd & 1st Gen Ryzen CPUs with Vega Graphics:1 x PCIe 3.0/2.0 x16 (x8 mode)AMD X570 chipset:1 x PCIe 4.0 x16 (max at x4 mode)2 x PCIe 4.0 x1
- Wi-Fi
- Yes (Wi-Fi)
Specific References
- EAN13
- 4718017900324
