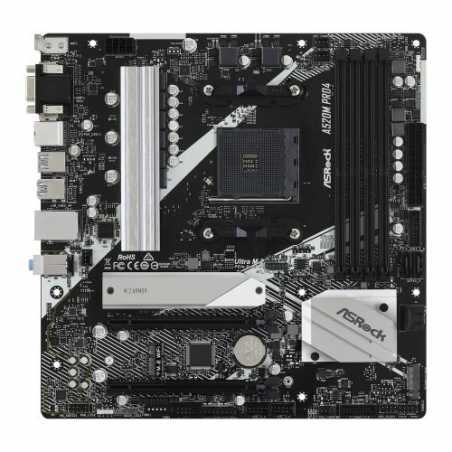

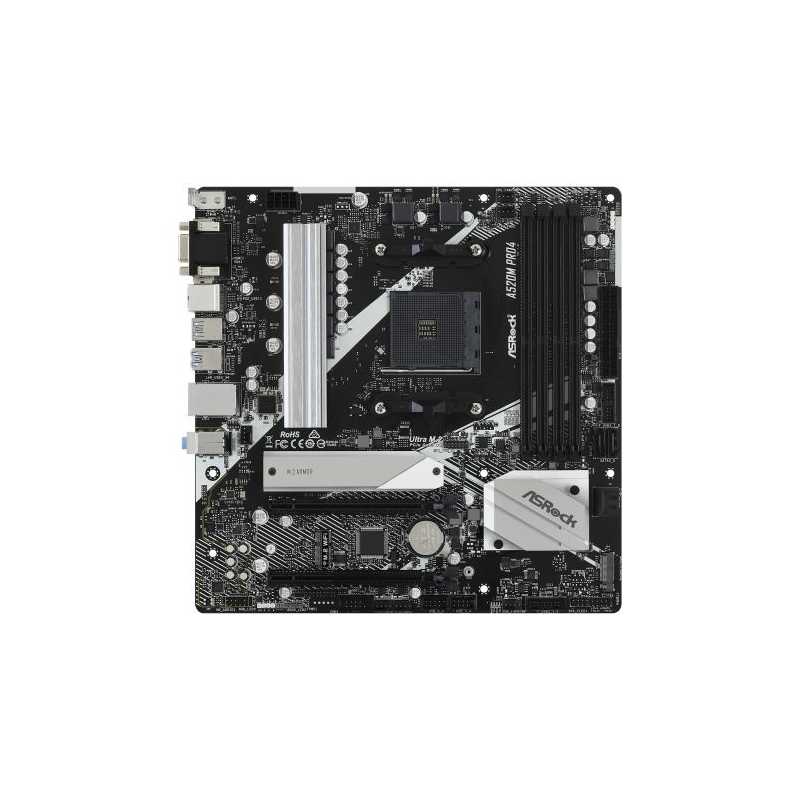

Asrock A520M PRO4, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, DP, M.2
search
  • Asrock A520M PRO4, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, DP, M.2
  • Asrock A520M PRO4, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, DP, M.2
  • Asrock A520M PRO4, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, DP, M.2

Asrock A520M PRO4, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, DP, M.2

£86.86
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock


All Essentials You Need For Computing

  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors (3000 and 4000 Series Processors)
  • 8 Power Phase Design, Digi Power
  • Supports DDR4 4733+ (OC)
  • 2 x PCIe 3.0 x16, 1 x M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
  • 4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4), 1 x M.2 (PCIe Gen3 x2 & SATA3)
  • 10 x USB 3.2 Gen1(5 x Rear, 1 x Rear Type-C, 4 x Front)
  • Realtek Gigabit LAN




Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.





8 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it enhanced performance with the lowest temperature for advanced gamers.





Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!





Rule Your Own Lighting Way - Polychrome RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.





Dual M.2 For SSD

One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. The other one supports PCIe Gen3 x2 16Gb/s transfer speed.





M.2 Armor

Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.





Dual USB 3.2 Gen1 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.





M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.





3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.





HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.





2oz Copper PCB

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.





Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.





Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.





Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.





Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.



ASROCK
A520M PRO4

Data sheet

.
2 x USB 3.2 Gen1
Wireless
-
RAM Speeds
4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Accessories
Quick Installation GuideSupport CDI/O Shield2 x SATA Data Cables2 x Screws for M.2 Sockets
USB Ports Supported
1 x USB 3.2 Gen1 Type-C (at back)9 x USB 3.2 Gen1 Type-A (5 at back, 4 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
Storage
4 x SATA III1 x M.2 (2280) - PCIe1 x M.2 (2280) - SATA & PCIe
RAID
RAID 0, 1, 10
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM4
Chipset
AMD A520
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
Multi-GPU Support
-
LAN
GB LAN
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
Back Panel I/O Ports
Antenna Bracket1 x PS/2 Mouse/Keyboard1 x D-Sub1 x HDMI1 x DisplayPort 1.41 x USB 3.2 Gen1 Type-A4 x USB 3.2 Gen1 Type-A1 x USB 3.2 Gen1 Type-C2 x USB 2.01 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x COM Port1 x SPI TPM1 x Power LED and Speaker2 x RGB LED2 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan4 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio2 x USB 2.0
CPU Support
Click here for CPU support*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
Package Type
Retail
Package Weight
1.1000 kg
Graphics Ports
1 x VGA1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics Processor*Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
PCI/PCI Express
2 x PCIe 3.0 x16

Specific References

EAN13
4710483932076
