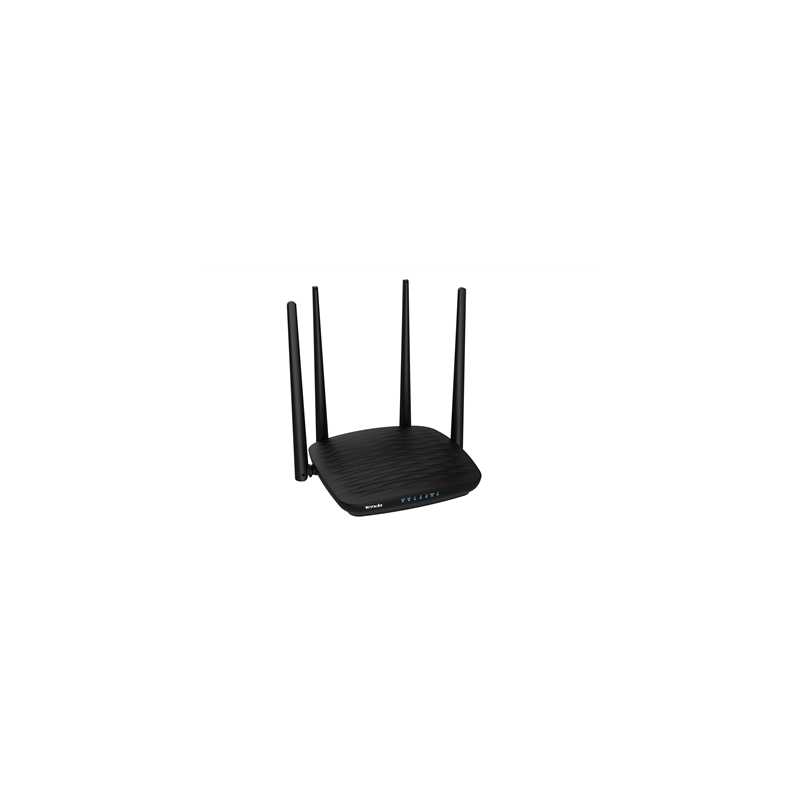

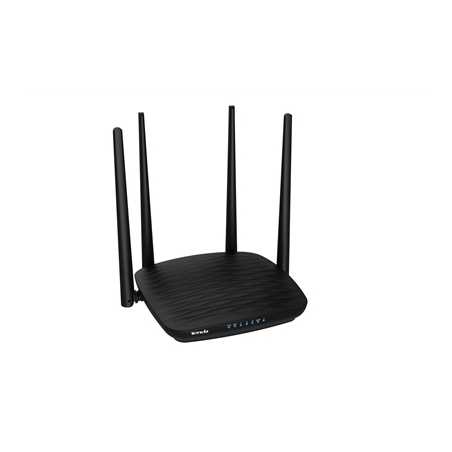

Tenda AC5 AC1200 Smart Dual Band Wireless Cable Router

AC5 AC1200 Smart Dual-Band WiFi Router.Migration of ISP User Name and Password, Four 5dBi dual-band omni-directional antennas,1 GHz CPU / MU-MIMO / Beamforming+ technology, Remote management via Tenda WiFi App.Equipped with a 1 GHz high-frequency CPU made with 28nm process, AC5 outperforms ordinary routers. Stable and fast internet connection lets you enjoy smooth 4K HD videos and online games without delay.

Migration of ISP User Name and Password
Four 5dBi dual-band omni-directional antennas
1 GHz CPU / MU-MIMO / Beamforming+ technology
Remote management via Tenda WiFi App

High performance CPU ensures fast internet connection
Equipped with a 1 GHz high-frequency CPU made with 28nm process, AC5 outperforms ordinary routers. Stable and fast internet connection lets you enjoy smooth 4K HD videos and online games without delay.

2.4 GHz +5 GHz ensure faster transmission and stronger signal
Powered by the new 802.11ac Wave 2.0 technology, AC5 offers a combined dual-band wireless rate of as high as 1167 Mbps, a significantly outperforming 802.11n routers in transmission. 5 GHz band can offer more independent channels with less interference and more stable WiFi coverage. Application of MU-MIMO technology improves quantity of simultaneously devices connected to its WiFi Network, including guest network greatly.

MU-MIMO New Technology
Application of MU-MIMO technology improves quantity of simultaneously devices connected to its WiFi Network, including guest network greatly.

Beamforming+ technology
AC5 employees the Beamforming+ technology, which can concentrate disperse wireless signals to a single direction, providing technical support for whole home WiFi coverage of small and medium-sized apartments. The Beamforming+ technology can build a dedicated channel between clients, such as phones and pads, and the router, to ensure a longer transmission distance and higher data transmission stability.

Easy Setup
If you forget your ISP user name and password, or cannot log in to the web UI of your old router to check, migration of ISP user name and password function helps you replicate your ISP user name and password from the old router to AC5, free you from painstaking configuration.

Manage your router via smart Tenda WiFi App anytime anywhere
Start your smart life with Tenda WiFi App;
Cloud-management via Tenda WiFi App allows you to mange your router anytime anywhere;
Disconnect unauthorized users with a single tap;
One-key channel optimization bring you better WiFi experience;
Signal strength adjustment guarantees strongest WiFi signal;
Security check keeps you updated on unauthorized connections.

All functionalities that suit your needs
L2TP/PPTP/IPSec;
Blacklist and Whitelist;
IPTV;
Hide SSID to block unauthorized users;
Guest network dedicated for your guests can protect your privacy and network security;
Four encryption type secure your WiFi network.

Specifications

Standard and Protocol
IEEE802.3, IEEE802.3u

Interface
10/100 Mbps WAN port*1
10/100 Mbps LAN port*3

Antenna
5dBi External antenna*4

Button
WPS/Reset button*1, WiFi on/off button*1

Power
AC input: 100-240V-50/60Hz, 0.2A
DC output: 9V 1A

LED
System*1, WiFi*1, WAN*1, LAN*3

Data Rate
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps

Frequency
Concurrent dual band 2.4 GHz & 5 GHz

Transmit Power
2.4G:
16dbm@MCS7
17dbm@OFDM 54M
19dbm@CCK 11M
5G:
12dbm@MCS9
14dbm@MCS7

Basic Features
SSID Broadcast: Enable/Disable
Beamforming
MU-MIMO

Wireless Security
WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS (WiFi Protected Set-up) quick encryption

Internet Connection Type
PPPoE, Dynamic IP, Static IP
PPPoE (Russia), PPTP (Russia), L2TP (Russia)

Operating Mode
Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode

DHCP Server
DHCP Server
DHCP Client List
DHCP Reservation

Virtual Server
Port Forwarding
DMZ Host
UPnP

Security
Client Filter (support blacklist and whitelist)
Parental Control
Remote Management

Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet

DDNS
Support DDNS, No-ip, 3322.org, Oray.com, 88ip

VPN
Ipsec
PPTP
L2TP
PPTP client
L2TP client

Features
PPPoE Username/Password Clone
Smart WiFi Schedule
Smart Sleeping Mode
Smart LED on/off
Tenda WiFi App

Other
Bandwidth Control
Guest Network
IPTV
MAC Address Clone
Static Routing
System Log
Backup & Restore configurations
Online firmware upgrade
Local firmware upgrade

Package Content
AC1200 Smart Dual-Band WiFi Router
Power Adapter
Quick Installation Guide
Ethernet Cable
