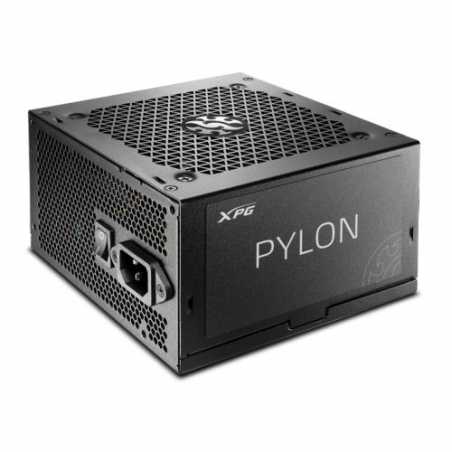

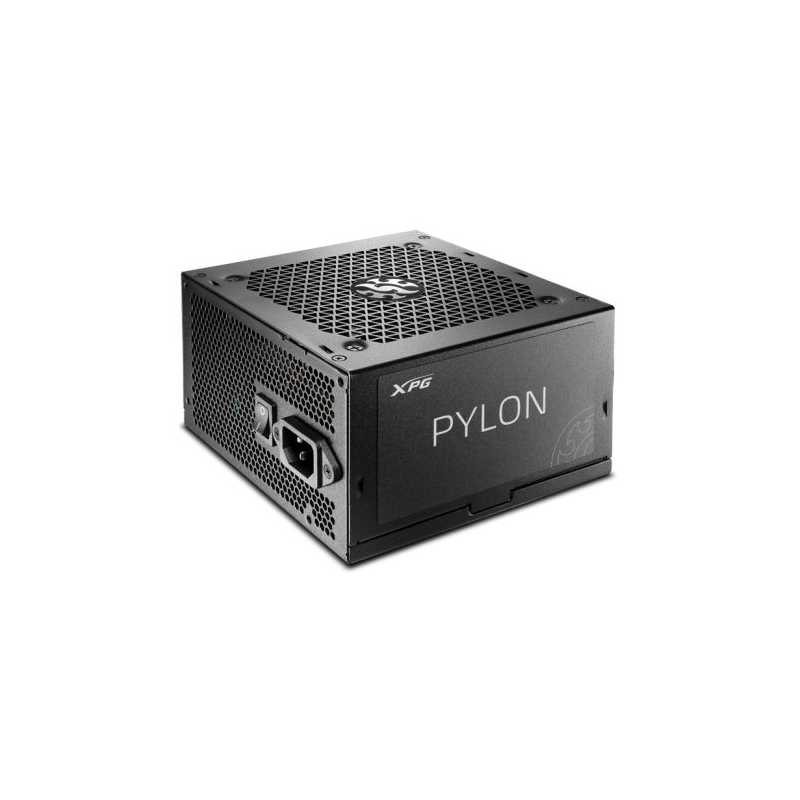

ADATA XPG 750W Pylon PSU, Fully Wired, Fluid Dynamic Fan, 80+ Bronze, Cont. Power
£67.91
VAT included
XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages.
- DC to DC Converters
- 80PLUS BRONZE Certified
- Continuous Power for 24/7 system operation
- 120mm FDB Silent-Performance Fan
- High Current +12V rail system compatibility
- Main Japanese Capacitor
- Multiple PCI-E 2.0 6+2 Pin Connectors
- Industrial-Level Protection OVP, OPP, SCP, OCP, UVP, OTP, NLO, SIP
- Complies with ErP 2014 Lot 3
- RoHS Compliance
DC-to-DC Circuit in BRONZE Grade
XPG PYLON complies with Intel ATX Power Supply Design Guide‘s sleep mode function, featuring DC-to-DC 100% +12V Full Power(*) in all PYLON series, ensuring that power delivery remains consistent, power-efficient, and capable of supporting mid to high-end graphic cards and CPUs.
(*) DC-to-DC Circuit minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to PC components’ life expectancy.
XPG PYLON is a 80 Plus Bronze certified power supply unit that guarantees energy efficiency at 20%, 50% and 100% of rated loads. XPG PYLON also complies with ErP 2014 Lot 3 Regulation, and it is designed for steady 24/7 Continuous Power system operation.
The fan control of the built-in 120mm Fluid Dynamic Bearing (FDB) Fan starts at around 700 rpm (25°C ambient) and maintains its low fan speed until around 70% power load.
80 Plus Bronze Certification
XPG PYLON is a 80 Plus Bronze certified power supply unit that guarantees energy efficiency at 20%, 50% and 100% of rated loads. XPG PYLON also complies with ErP 2014 Lot 3 Regulation, and it is designed for steady 24/7 Continuous Power system operation.
120mm Fluid Dynamic Bearing (FDB) Fan
The fan control of the built-in 120mm Fluid Dynamic Bearing (FDB) Fan starts at around 700 rpm (25°C ambient) and maintains its low fan speed until around 70% power load.
The operating environment is kept quiet and efficient, and prolongs its life expectancy.
PYLON750B-BKCEU
Data sheet
- Warranty
- 3 Years
- Form Factor
- ATX
- Package Weight
- 3.0900 kg
- Series
- Adata XPG Pylon
- Weight/Dimensions
- (L x W x H) 150 x 140 x 86mm
- Features
- See Overview
- Connectors
- 1 x ATX 24 Pin Connector1 x EPS 8 (4+4) Pin7 x SATA1 x Peripheral 4 Pin4 x PCIe 6+2 Pin
- Wattage
- 750 W
- Compatability
- ATX 12V v2.4 & EPS
- Modular
- Fully Modular
- AC Input
- AC 100-240 V
- Fan Type
- Silent-Performance Fan12cm Fluid-dynamic bearing2000 RPM
- Fan Bearing
- Fluid / Hydraulic Bearing
- MTBF
- 100K Hours at 25C
- PFC
- 0.99
- Protection
- OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
- 80+ Certification
- 80+ Bronze
