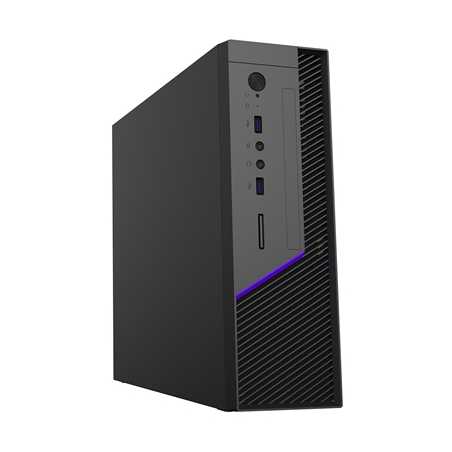

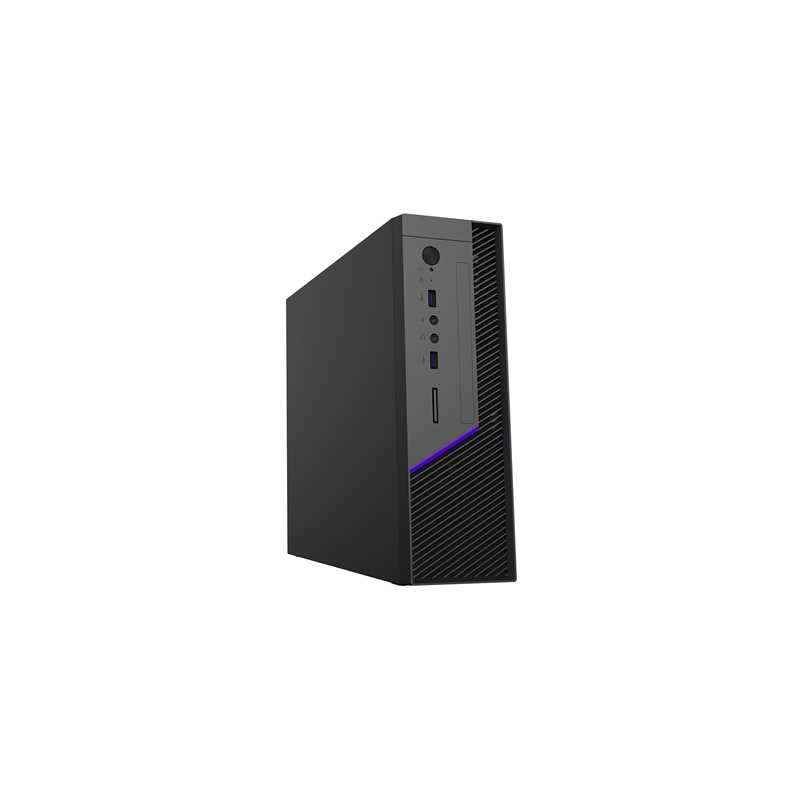

CiT MTX-008B Mini-ITX Tower 2 x USB 3.0 Black Case with 300W Bronze TFX PSU

CiT MTX-008B300W Mini-ITX Case can be put vertical or horizontal, you can install a slim laptop ODD on the front panel. The MTX-008B 300W has thicker steel and measures at 0.6mm to provide a stronger and stable PC system.

CiT MTX-008B300W chassis has no black coating inside for matching CE & EMI and it comes with a tool-less PCI design. Support ITX and mATX(less 205*210mm) motherboard form.

The CiT MTX-008B300W chassis comes with an 8cm cooling fan to help the PC system create the best airflow during use meanwhile it includes a Game Max GT-300W TFX PSU's to provide enough power when the user installs high performance CPU's.

Key Features
- Desktop Chassis: 7.5L SFF desktop chassis.
- CE/EMI approved design.
- Cooling: Comes with 1 x 80mm front fan.
- 0.6mm Thickness.
- Power Supplies: Includes a Game Max GT-300W TFX PSU
- Supports Mini-ITX and Micro ATX (less 205 x 210mm) motherboard form factor.

Form Factor
Mini Tower

Motherboard Support
Micro ATX
Mini-ITX

Material
0.6mm SGCC
Plastic

Side Panel
Vented

Drive Bays
External Bays: 1 x Slimline Optical
Internal Bays: 1 x 3.5" / 1 x 2.5"

Expansion
Slots: 2 x Half-Height

Cooling
Front: 1 x 80mm (1 x 80mm Fan included)
Top: None
Rear: Vent
Side: Vent
Bottom: None

I/O Panel
2 x USB 3.0
1 x HD Audio
1 x Microphone

Clearance
GPU Max Length: 265mm
CPU Cooler Maximum Height: 65mm
Internal Cable Management Depth: 21mm

Colour
Black

What's In The Box
Case
Screws

Product Dimensions ( W x H x D )
94mm x 291mm x 313mm

Packaging Dimensions ( W x H x D )
152mm x 364mm x 350mm

Weight
Net: 3 KGs
Gross: 3.5 KGs


PSU SPECIFICATIONS

Wattage
300W

PSU Location
Top

Form Factor
TFX

Certification
80 PLUS Bronze

Max DC Output
+3.3V: 15A
+5V: 15A
+12V: 20A
-12V: 0.5A
+5VSB: 2.5A

Connections
1 x 20+4 Pin ATX
1 x +12V 4- Pin CPU
1 x 4-Pin Molex
3 x SATA
