- Out of stock

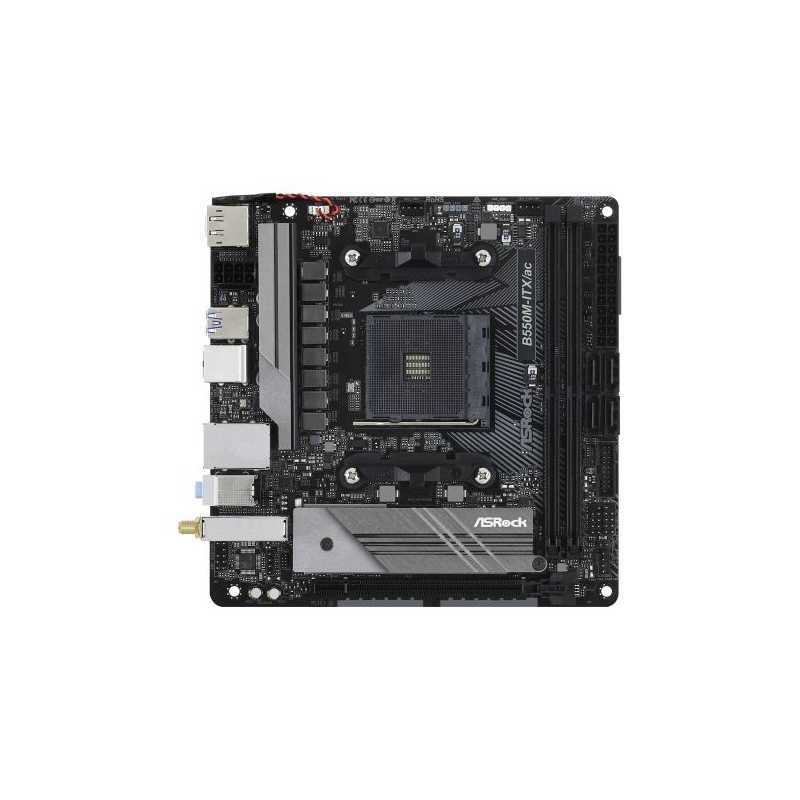

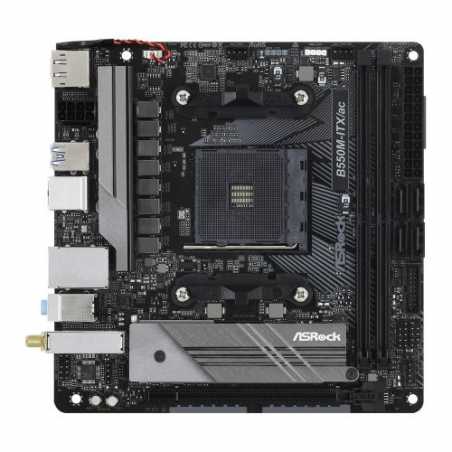

Asrock B550M-ITX/AC, AMD B550, AM4, Mini ITX, 2 DDR4, HDMI, DP, AC Wi-Fi, PCIe4, M.2
£131.50
VAT included
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16
- Graphics Output: DisplayPort, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 6 USB 3.1 Gen1 (2 Front, 3 Rear Type-A, 1 Rear Type-C)
- Realtek Gigabit LAN
- Intel® 802.11ac WiFi + BT 4.2
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Rule Your Own Lighting Way - Polychrome RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.
Hyper M.2 (PCIe Gen4 x4)
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.
Dual USB 3.2 Gen1 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Super Alloy Motherboard
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
B550M-ITX/AC
Data sheet
- PCI Express
- 1 x PCIe 4.0 x16
- Wireless
- Intel 802.11ac WiFi ModuleSupports IEEE 802.11a/b/g/n/acSupports Dual-Band (2.4/5 GHz)Supports wireless connections up to 433MbpsSupports Bluetooth 4.2
- RAM Speeds
- 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- Accessories
- Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables2 x ASRock WiFi 2.4/5 GHz Antennas
- USB Ports Supported
- 2 x USB 3.2 Gen1 (Type-A & Type-C at back)2 x USB 3.2 Gen1 (at mid-board)4 x USB 2.0 (2 at back, 2 at mid-board)
- Storage
- 4 x SATA3 III1 x M.2 (2280) - SATA & PCIe
- RAID
- RAID 0, 1, 10
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Mini ITX
- Socket
- AMD AM4
- Chipset
- AMD B550
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- -
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna1 x PS/2 Mouse/Keyboard1 x HDMI1 x DisplayPort 1.42 x USB 2.03 x USB 3.2 Gen1 Type-A1 x USB 3.2 Gen1 Type-C1 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x RGB LED1 x Addressable LED1 x CPU Fan2 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio1 x USB 2.01 x USB 3.2 Gen1
- CPU Support
- Click here for CPU support*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
- Package Type
- Retail
- Package Weight
- 0.8700 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort 1.4
- Additional Features
- See Overview
- Graphics
- Integrated Graphics Processor*Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- PCI/PCI Express
- 1 x PCIe 4.0 x16
- Wi-Fi
- Yes (Wi-Fi)
- Memory Slots
- 2 Slots
- CPU Compatibility
- AMD Ryzen
- M.2 Compatibility
- NVMe / SATA
- USB C
- Yes
Specific References
- EAN13
- 4710483931727
