- Out of stock

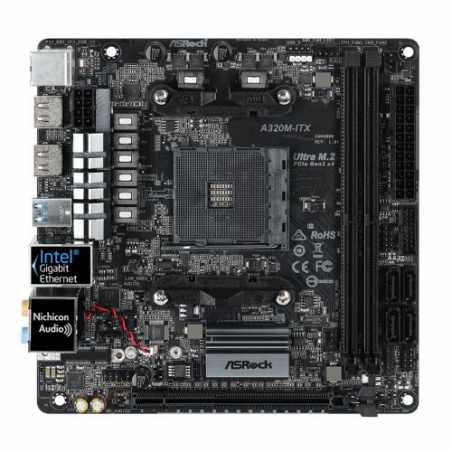

Asrock A320M-ITX, AMD A320, AM4, Mini ITX, 2 DDR4, 2 HDMI, M.2
£86.76
VAT included
- Supports AMD Socket AM4 Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
- Supports DDR4 3466+ (OC) (Ryzen CPU)
- 1 PCIe 3.0 x16
- Graphics Output: 2 HDMI
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- Nichicon Fine Gold Series Audio Caps
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
- 6 USB 3.1 Gen1 (1 Type-C, 2 Front, 3 Rear)
- Intel® Gigabit LAN
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
RGB LED
Build your own colorful lighting system! RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Super Alloy Motherboard
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dual-N MOSFET
Combining two silicon dies into one MOSFET, Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.
Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking..
4K x 2K
4K x 2K
Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
A320M-ITX
Data sheet
- PCI Express
- 1 x PCIe 3.0 x16
- Wireless
- -
- RAM Speeds
- 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 MHz
- Accessories
- Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables1 x Screw for M.2 Socket
- USB Ports Supported
- 2 x USB 3.1 Gen1 at back (Type-A & Type-C)4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)4 x USB 2.0 (2 at back, 2 at mid-board)
- Storage
- 4 x SATA III1 x Ultra M.2 (2280) - SATA & PCIe
- RAID
- RAID 0, 1, 10
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Mini ITX
- Socket
- AM4
- Chipset
- AMD A320
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- -
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse/Keyboard2 x HDMI1 x Optical SPDIF Out2 x USB 2.01 x USB 3.1 Gen1 Type-A1 x USB 3.1 Gen1 Type-C2 x USB 3.1 Gen11 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x LPC1 x AMD Fan LED1 x CPU Fan1 x Chassis Fan1 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio1 x AMD LED Fan USB1 x USB 2.01 x USB 3.1 Gen1
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 2 x HDMI
- Additional Features
- See Overview
- Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APUIntegrated AMD Radeon R-Series Graphics in A-series APU
- Memory Slots
- 2 Slots
- CPU Compatibility
- AMD Ryzen
- M.2 Compatibility
- NVMe / SATA
- USB C
- Yes
