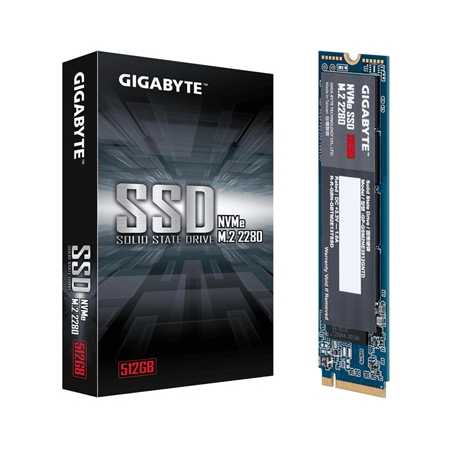

Gigabyte 512GB M.2 PCIe NVMe SSD

Performance . Stability
GIGABYTE NVMe SSD

Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

Breaking the barriers of SATA limitations (512GB)
Outstanding performance

- GIGABYTE NVMe SSD provides performance for your daily computing tasks, boast of best controller & NAND flash that provide.
- Sequential read speeds up to 1700 MB/s.
- Sequential write speeds up to 1550 MB/s.
- GIGABYTE M.2 PCIe SSD gives you faster data transferring experience compared to 2.5" SATA solid state drive.

SSD Tool Box
The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.

Capacity
512GB

Model
GP-GSM2NE3512GNTD

Form Factor
M.2 2280

Interface
PCI-Express 3.0 x4, NVMe 1.3

Connections
1 x M.2 (SATA)

Flash Memory Type
NAND Flash

Max Read/Write
Read: Up to 1700 MB/s
Write: Up to 1550 MB/s

Max 4KB Random Read/Write
Read: Up to 270K
Write:Up to 340K

MTBF
1.5M hours

Dimensions (W x H x D)
80 x 22 x 2.3 mm
