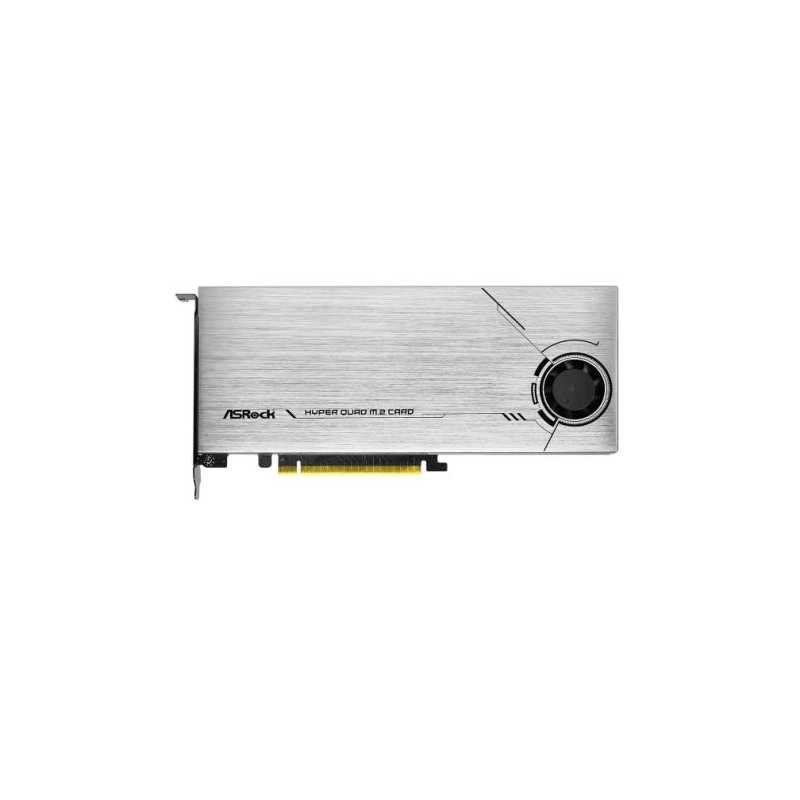

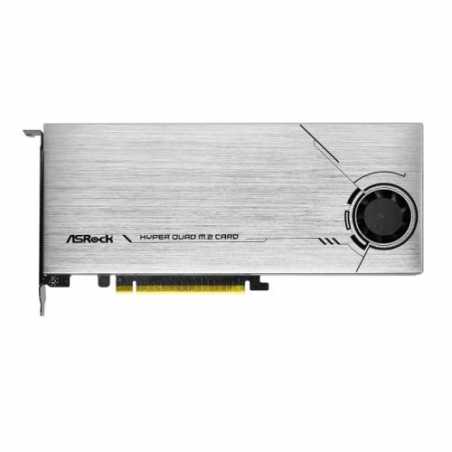

Asrock Hyper Quad M.2 Card, 4x Hyper M.2 NVMe, PCIe 4.0 x16, 64Gb/s, Intel VROC
£122.39
VAT included
Hyper Quad M.2 Card
- PCIe Gen4 x16 interface
- Supports M Key type 2242/2260/2280/22110 M.2 PCI Express module Gen4 x4 64Gb/s
- Supports Intel® VROC technology
- Fully support Intel® latest NVMe M.2 SSD
- Variable speed cooling fan
- ASRock Quad M.2 Card Utility
Bootable M.2 RAID Support
Supports up to 4 PCIe Gen3 x4 NVMe M.2 SSDs on AMD TRX40/X399 platform and Virtual RAID on CPU (VROC) technology on Intel® X299 platform*. Allows you to create a bootable RAID array with up to 4 M.2 SSDs**.
*Only Intel SSDs can support VROC.
**PCIe x16 needs to be divided to four PCIe x4 lanes by the motherboard, please make sure your motherboard supports this function.
The 11-cm-long thermal pad is able to fully cover every NAND flash on M.2 SSD, transferring heat generated by the high speed M.2 SSD onto the aluminum cover. Extend the longevity of each devices.
Apart from the large aluminum cover, the 5cm cooling fan can not only quickly dissipate the heat but also lower the temperature to ensure a stable performance of M.2 SSD. What’s more exciting, the fan speed can be adjusted via a switch located on the PCB, giving a more flexible usage.
The onboard four M.2 sockets are laid out on PCB at an angle (45 degrees). The shape is optimized to keep the traces as short and direct as possible. Designed with the right trace shape in order to make sure each M.2 socket carries good enough current, thus providing maximum performance and stability.
A dedicated utility that applies with the onboard FAN switch to monitor vital info and control fan speed easily on ASRock HYPER QUAD M.2 Card
More M.2 expansion space!
All-Aluminum Cover & Fully Cover Thermal Pad
The 11-cm-long thermal pad is able to fully cover every NAND flash on M.2 SSD, transferring heat generated by the high speed M.2 SSD onto the aluminum cover. Extend the longevity of each devices.
Adjustable Cooling Fan
Apart from the large aluminum cover, the 5cm cooling fan can not only quickly dissipate the heat but also lower the temperature to ensure a stable performance of M.2 SSD. What’s more exciting, the fan speed can be adjusted via a switch located on the PCB, giving a more flexible usage.
The Shortest Trace
The onboard four M.2 sockets are laid out on PCB at an angle (45 degrees). The shape is optimized to keep the traces as short and direct as possible. Designed with the right trace shape in order to make sure each M.2 socket carries good enough current, thus providing maximum performance and stability.
A Flexible & Convenient Utility
A dedicated utility that applies with the onboard FAN switch to monitor vital info and control fan speed easily on ASRock HYPER QUAD M.2 Card
More M.2 expansion space!
Desire more ASRock Hyper Quad M.2 Cards installed for unbeatable M.2 expansion? No problem! Use the onboard switch and you can manage multiple Hyper Quad M.2 Cards effortlessly.
90-MCA0G0-00UANZ
Data sheet
- Warranty
- 1 Year
- Package Type
- Retail
- Package Weight
- 0.4900 kg
- Type
- M.2 Card
- Package Contents
- Quick Installation Guide, Support CD4 x M.2 screws
- Host Interface
- PCI Express
- Ports
- 4 x Hyper M.2 SocketsSupports M Key 2242/2260/2280/22110 M.2PCI Express module up to Gen4 x4 (64 Gb/s)1 x Graphics 12V Power Connector
- Host Interface(s)
- PCI Express 4.0 x 16
Specific References
- EAN13
- 4710483930010
