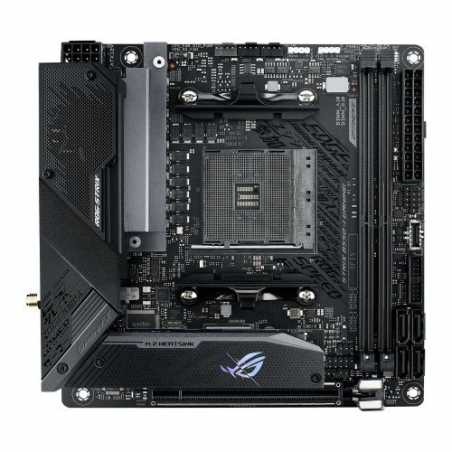

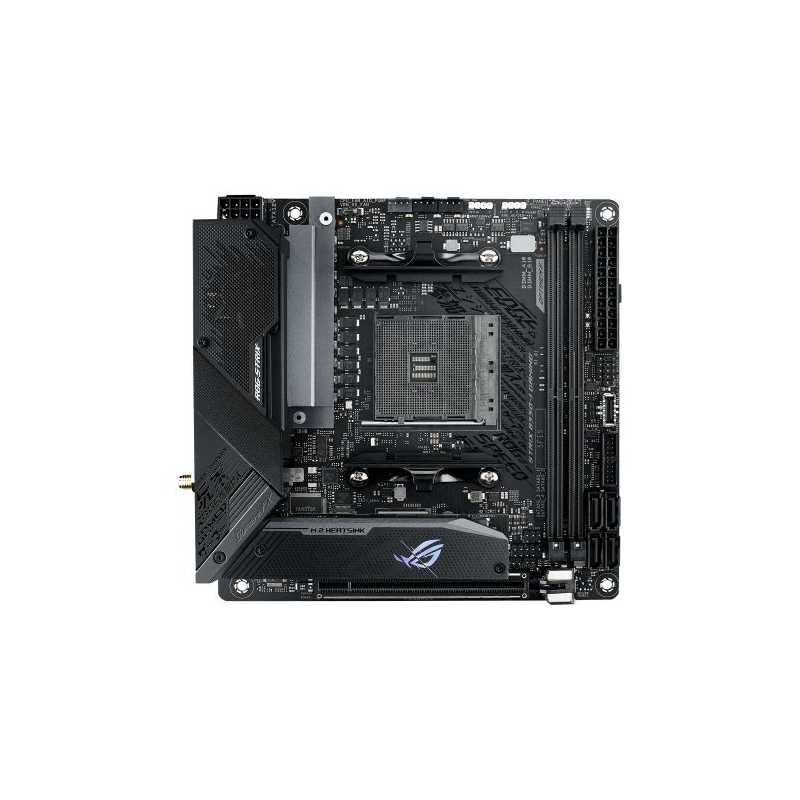

Asus ROG STRIX B550-I GAMING, AMD B550, AM4, Mini ITX, 2 DDR4, HDMI, DP, AX Wi-Fi, 2.5GB LAN, PCIe4, RGB Lighting, M.2

Data sheet

.

1 x Thermal sensor1 x Clear CMOS1 x System panel1 x Speaker1 x VRM_HS_FAN1 x USB 3.2 Gen1 front panel Type-C

PCI Express

1 x PCIe 4.0 x16 (x16 mode)

Wireless

Intel Wi-Fi 6 AX2002x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Support 1024QAM/OFDMA/MU-MIMOSupports dual band frequency 2.4/5 GHzSupports bandwidth: HT20/HT40/HT80/HT160

RAM Speeds

5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz

Accessories

I/O Shield4 x SATA 6Gb/s cables2 x M.2 Screw Package1 x ROG Strix stickers1 x M.2 bracket1 x Cable ties pack1 x Wi-Fi Antenna1 x Ext cable for Addressable LED1 x Panel cable1 x ROG Thank you card1 x ROG audio USB Type-C cable

USB Ports Supported

1 x USB 3.2 Gen2 Type-C (at back)4 x USB 3.2 Gen2 Type-A (at back)2 x USB 3.2 Gen1 (at mid-board)4 x USB 2.0 (2 at back, 2 at mid-board)1 x USB 3.2 Gen1 front panel Type-C connector

Storage

4 x SATA III2 x M.2 (2242/2260/2280) - SATA & PCIe

RAID

RAID 0, 1, 10

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

Mini ITX

Socket

AMD AM4

Chipset

AMD B550

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

Maximum Memory

64GB

Multi-GPU Support

-

LAN

2.5GB LAN

Audio

SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A

Back Panel I/O Ports

1 x Intel I225-V 2.5Gb LAN1 x DisplayPort1 x HDMI4 x USB 3.2 Gen 2 (1 Type-C, 3 Type-A)2 x USB 2.01 x BIOS FlashBack Button1 x ASUS Wi-Fi Module3 x LED-illuminated audio jacks

Internal I/O Connectors

1 x CPU Fan1 x Chassis Fan1 x AIO_PUMP1 x Aura RGB Strip1 x Addressable Gen21 x USB 3.2 Gen11 x USB 2.02 x M.2 Socket 3 with M Key4 x SATA 6Gb/s1 x 24-pin EATX1 x 8-pin ATX 12V1 x Front audio

CPU Support

Click here for CPU support*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs

Package Type

Retail

Package Weight

1.1300 kg

Graphics Ports

1 x HDMI1 x DisplayPort

Additional Features

See Overview

Graphics

Integrated Graphics Processor*Graphics specifications may vary between CPU types

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

Max LAN Speed

2.5GB LAN

PCI/PCI Express

1 x PCIe 4.0 x16 (x16 mode)

Wi-Fi

Yes (Wi-Fi)

Specific References

EAN13

4718017786379
