- Out of stock

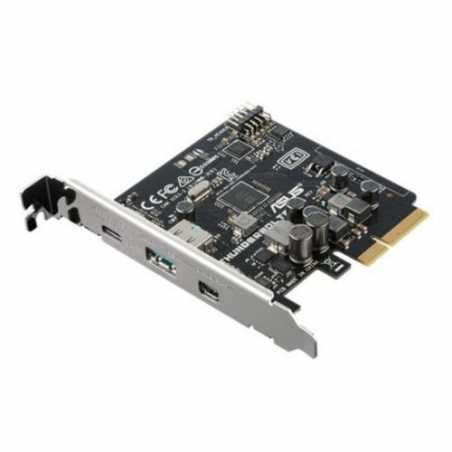

Asus ThunderboltEX 3 Card, PCI Express, 1 x Thunderbolt 3, 1 x USB 3.1, 1 x Mini DisplayPort 1.2 In, TBT Header
£77.54
VAT included
Experience blistering Thunderbolt 3 speeds and any-way-up connectivity
- Breathtaking 40Gbps for faster transfers
- A single port integrating Thunderbolt™ 3, reversible USB 3.1 Type-C and DisplayPort 1.2
- Supports the USB Power Delivery specification for fast, high-power charging of up to 36W
Thunderbolt 3, USB 3.1, and up to 36W charging
Thunderbolt™ 3 means faster, bigger and more, all through a single cable with a sleek, any-way-up connector — and ASUS ThunderboltEX 3 is the quick-to-fit expansion card that enables you to upgrade today!
Faster
At a breathtaking 40Gbps you'll experience faster transfers, with four times (4X) the data speeds of any other cable and twice (2X) the video bandwidth.
More connectivity
By integrating reversible USB 3.1 Type-C and DisplayPort 1.2, the ThunderboltEX 3 gears you up for compatibility with the latest high-speed devices, from super-fast external drives to 4K UHD displays. ThunderboltEX 3 supports the USB Power Delivery specification for fast, high-power charging of up to 36W, and you can even daisy-chain up to six devices from a single port — and our card even includes an additional USB 3.1 Type-A connector for total convenience and compatibility!
10-gigabit networking
When you fit ThunderboltEX 3 you'll also enjoy peer-to-peer networking at screaming 10Gbps speeds, enabling you to transfer files in the blink of an eye, perform easy PC migrations, or set up small workgroups with shared storage!
Upgrade your motherboard in just three simple steps!
- Easy upgrade: Slide ASUS ThunderboltEX 3 into PCI-Express 3.0 x4 slot
- Compatible with ASUS motherboards: Connect the card to the onboard Thunderbolt header with the supplied system-link cable
- DisplayPort 1.2 support: Attach the supplied DisplayPort cable to the card and the onboard DisplayPort connector
Turn on your computer, connect your Thunderbolt devices and enjoy the incredible speed!
Compatible Models
Z170-PREMIUM
Z170-DELUXE
Z170-PRO
Z170-A
Z170-AR
SABERTOOTH Z170 MARK 1
SABERTOOTH Z170 S
MAXIMUS VIII EXTREME
MAXIMUS VIII HERO
MAXIMUS VIII RANGER
X99-DELUXE II
X99-DELUXE
X99-PRO/USB 3.1
X99-PRO
X99-A/USB 3.1
X99-A
X99-A II
X99-E
SABERTOOTH X99
RAMPAGE V EXTREME/U3.1
RAMPAGE V EXTREME
Description
Specification
- Type: Thunderbolt Card
- Ports: 1 x Thunderbolt 3 port (Type-C)
1 x USB 3.1 port (Type-A)
1 x Mini DisplayPort 1.2 IN Port
1 x 9 pin TB header - Transfer Rate(s): Thunderbolt 3t:
- up to 40Gbps for Thunderbolt devices
- up to 10Gbps for USB 3.1 devices - Host Interface(s): PCI Express 3.0 x4 (compatible with PCI Express x16/x8/x4 slots)
- Additional Featues: See Overview
- Dimensions: 10 x 8.5cm
- Package Type: Retail
- Package Weight: 0.3000 kg
- Warranty: 3 Years
- #Hide#Host Interface: PCI Express
