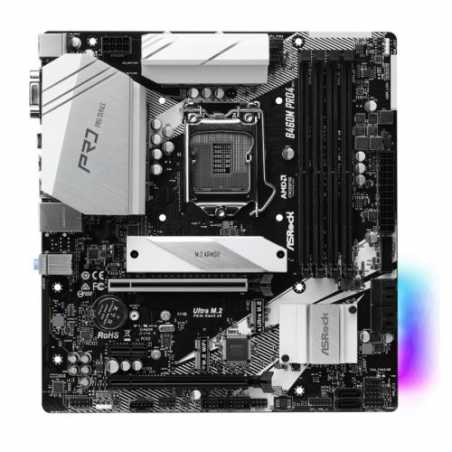

Asrock B460M PRO4, Intel B460, 1200, Micro ATX, 4 DDR4, VGA, HDMI, DP, XFire, RGB Lighting, M.2

Data sheet

.

1 x USB 3.2 Gen1

PCI Express

2 x PCIe 3.0 x161 x PCIe 3.0 x1

Wireless

-

RAM Speeds

2933 / 2800 / 2666 / 2400 / 2133 MHz

Accessories

I/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets1 x Standoff for M.2 Socket

USB Ports Supported

1 x USB 3.2 Gen1 Type-C (at back)6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)

Storage

6 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2260/2280) - SATA & PCIe

RAID

RAID 0, 1, 5, 10

Warranty

3 Year Replacement Warranty

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1200

Chipset

Intel B460

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

Maximum Memory

128GB

Multi-GPU Support

Supports AMD Quad CrossFireX and CrossFireX

LAN

GB LAN

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)

Back Panel I/O Ports

1 x Antenna Bracket1 x PS/2 Mouse/Keyboard1 x D-Sub1 x HDMI1 x DisplayPort 1.44 x USB 3.2 Gen1 Type-A1 x USB 3.2 Gen1 Type-C2 x USB 2.01 x RJ-45 LANHD Audio Jacks

Internal I/O Connectors

1 x SPI TPM1 x Chassis Intrusion and Speake2 x RGB LED2 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan3 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio1 x Thunderbolt AIC2 x USB 2.0

CPU Support

Click here for CPU support

Package Type

Retail

Package Weight

1.3300 kg

Graphics Ports

1 x VGA1 x HDMI1 x DisplayPort

Additional Features

See Overview

Graphics

Supports Intel HD Graphics

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

Max LAN Speed

GB LAN

RGB Lighting

Yes (RGB)

PCI/PCI Express

2 x PCIe 3.0 x161 x PCIe 3.0 x1

Memory Slots

4 Slots

CPU Compatibility

Intel 10th Gen

M.2 Compatibility

NVMe / SATA

USB C

Yes
