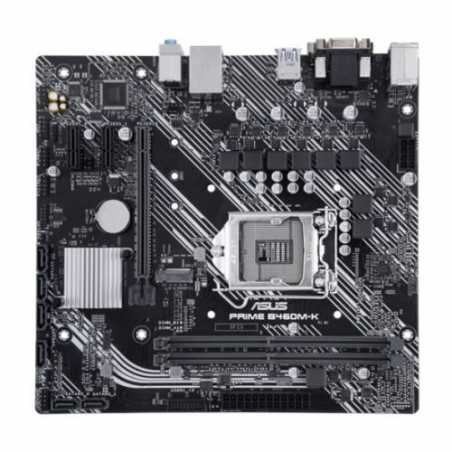

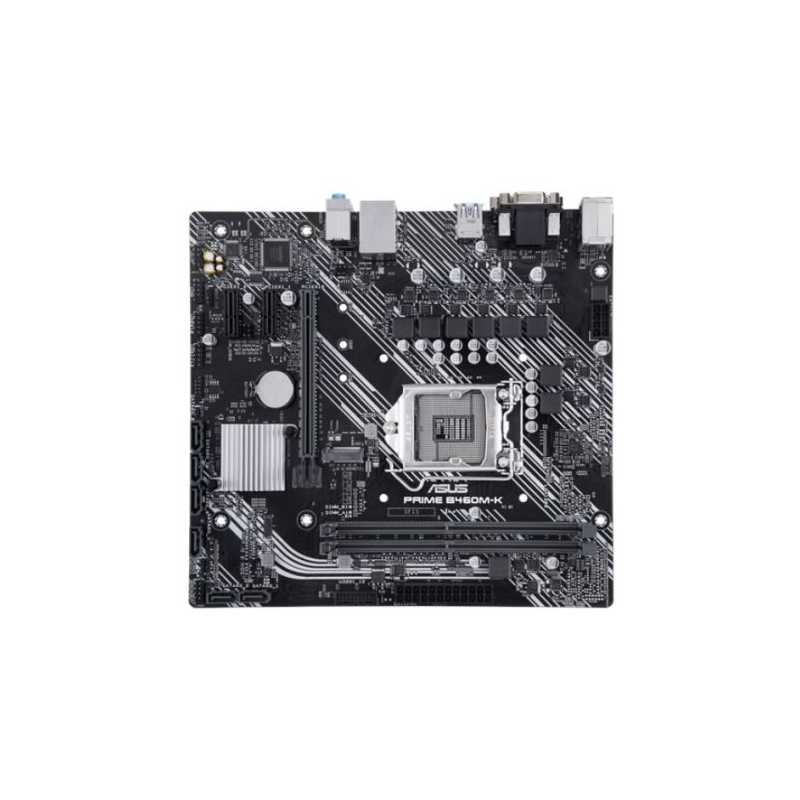

Asus PRIME B460M-K, Intel B460, 1200, Micro ATX, 2 DDR4, VGA, DVI, M.2

Data sheet

.

1 x COM port1 x Speaker

PCI Express

1 x PCIe 3.0/2.0 x16 (x16 mode)2 x PCIe 3.0/2.0 x1

Wireless

-

RAM Speeds

2933/2800/2666/2400/2133 MHz

Accessories

Users manualI/O Shield2 x SATA 6Gb/s cables1 x M.2 Anchor1 x Supporting DVD

USB Ports Supported

6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)

Storage

6 x SATA III1 x M.2 (2242/2260/2280) - SATA & PCIe

RAID

RAID 0, 1, 5, 10

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1200

Chipset

Intel B460

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

Maximum Memory

64GB

Multi-GPU Support

-

LAN

GB LAN

Audio

Realtek ALC887 7.1-Channel High Definition Audio CODEC

Back Panel I/O Ports

1 x PS/2 keyboard/mouse combo1 x DVI-D1 x D-Sub1 x LAN (RJ45) port4 x USB 3.2 Gen 1 Type-A2 x USB 2.03 x Audio jacks

Internal I/O Connectors

1 x CPU Fan1 x Chassis Fan1 x AAFP1 x USB 3.2 Gen12 x USB 2.01 x M.2 Socket 3 with M key6 x SATA 6Gb/s1 x S/PDIF out1 x 24-pin EATX1 x 8-pin ATX 121 x System panel1 x Clear CMOS jumper

CPU Support

Click here for CPU support

Package Type

Retail

Package Weight

0.4800 kg

Graphics Ports

1 x VGA1 x DVI-D

Additional Features

See Overview

Graphics

Supports Intel HD Graphics

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

Max LAN Speed

GB LAN

PCI/PCI Express

1 x PCIe 3.0/2.0 x16 (x16 mode)2 x PCIe 3.0/2.0 x1

Specific References

EAN13

4718017703000
