- Out of stock

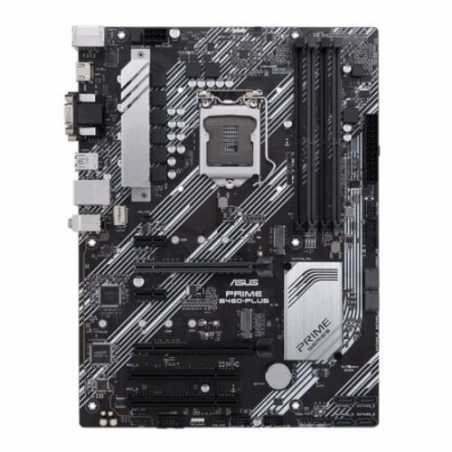

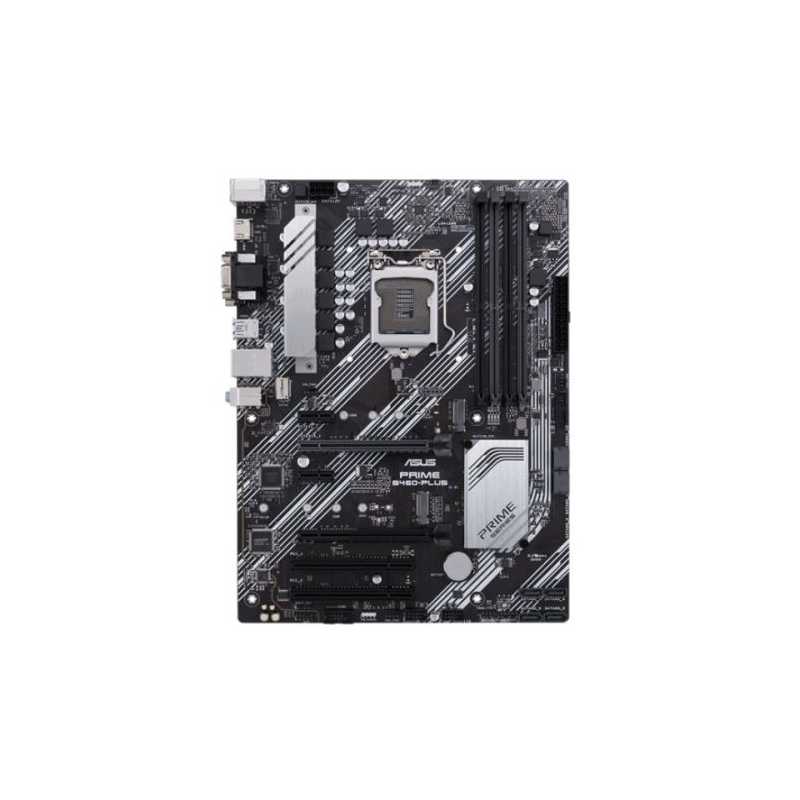

Asus PRIME B460-PLUS, Intel B460, 1200, ATX, 4 DDR4, XFire, VGA, DVI, HDMI, M.2
£119.64
VAT included
Intel® B460 (LGA 1200) ATX motherboard with RGB headers, dual M.2, DDR4 2933MHz, HDMI, D-sub, DVI, USB 3.2 Gen 1 ports, Intel® Optane memory ready, SATA 6 Gbps
- Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
- Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
- 5X Protection III: Multiple hardware safeguards for all-round protection.
- Ultrafast connectivity: Supreme flexibility with native M.2 support for Lightning-fast storage speeds
90MB13J0-M0EAY0
Data sheet
- .
- 1 x Clear CMOS jumper1 x COM port
- PCI Express
- 1 x PCIe 3.0/2.0 x16 (x16 mode)1 x PCIe 3.0/2.0 x16 (x4 mode)2 x PCIe 3.0/2.0 x12 x PCI
- Wireless
- -
- RAM Speeds
- 2933/2800/2666/2400/2133 MHz
- Accessories
- I/O Shield2 x SATA 6Gb/s cables1 x M.2 Screw Package1 x Supporting DVD
- USB Ports Supported
- 6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
- Storage
- 6 x SATA III1 x M.2 (2242/2260/2280) - SATA & PCIe1 x M.2 (2242/2260/2280/22110) - PCIe
- RAID
- RAID 0, 1, 5, 10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1200
- Chipset
- Intel B460
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD 2-Way CrossFireX Technology
- LAN
- GB LAN
- Audio
- Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse combo1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port4 x USB 3.2 Gen1 Type-A2 x USB 2.03 x Audio jacks
- Internal I/O Connectors
- 1 x CPU Fan3 x Chassis Fan1 x AAFP2 x Lighting Control RGB Strip1 x USB 3.2 Gen12 x USB 2.02 x M.2 Socket 3 with M Key6 x SATA 6Gb/s1 x S/PDIF out1 x 24-pin EATX1 x 8-pin ATX 12V1 x System panel
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x VGA1 x DVI-D1 x HDMI
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
