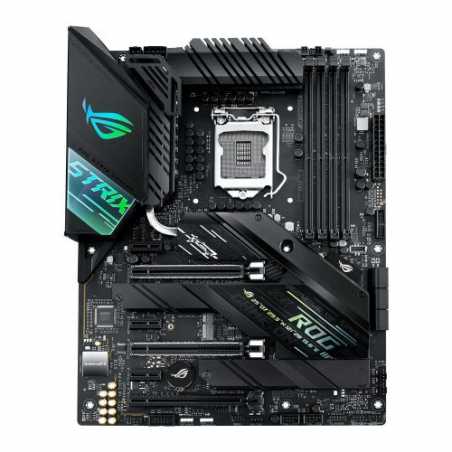

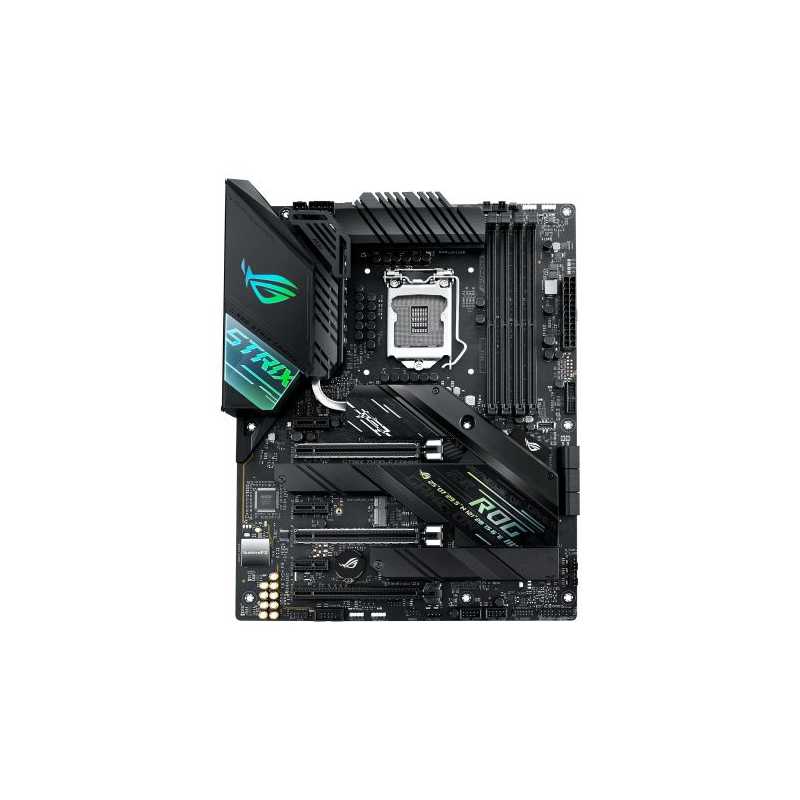

The ROG Strix Z490-F Gaming motherboard is designed to cope with the demands of 10th Generation Intel® Core™ processors, with boosted power delivery and an optimized cooling design providing more surface area for heat dissipation.
ROG Strix Z490-F Gaming features AI enhancements and intuitive dashboards to help you overclock and tweak various parameters easily. Performance aside, ROG Strix Z490-F Gaming catches the eye, sporting cyberpunk inspired aesthetics including a mirrored stainless steel finish.
4 x SATA 6Gb/s cables1 x M.2 Screw Package1 x ROG Strix stickers1 x Cable ties pack1 x Ext Cable for RGB strips1 x Ext cable for Addressable LED1 x Thermistor cable1 x ROG Thank you card1 x 2-in-1 Rubber pad1 x Wi-Fi moving antenna1 M.2 SSD screw package1
USB Ports Supported
4 x USB 3.2 Gen2 (3 Type-A & 1 Type-C at back)4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)1 x USB 3.2 Gen2 Type-C front panel connector
Storage
6 x SATA III1 x M.2 (2242/2260/2280/22110) - SATA & PCIe1 x M.2 (2242/2260/2280/22110) - PCIe
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Back Panel I/O Ports
1 x Intel I225-V 2.5Gb Ethernet1 x DisplayPort1 x HDMI4 x USB 3.2 Gen22 x USB 3.2 Gen12 x USB 2.01 x Optical S/PDIF out1 x USB BIOS FlashBack Button5 x Gold-plated audio jacks
Internal I/O Connectors
1 x CPU Fan1 x CPU OPT Fan2 x Chassis Fan1 x AIO_PUMP1 x W_PUMP+2 x Addressable RGB1 x AAFP2 x Aura RGB Strip1 x USB 3.2 Gen21 x USB 3.2 Gen12 x USB 2.01 x M.2 Socket 1 with M Key
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Supports Intel HD Graphics
Specific References
EAN13
4718017674300
