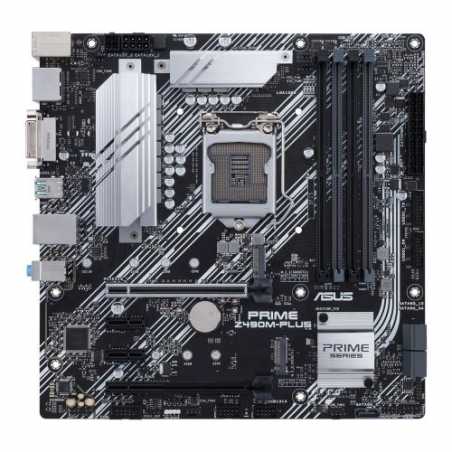

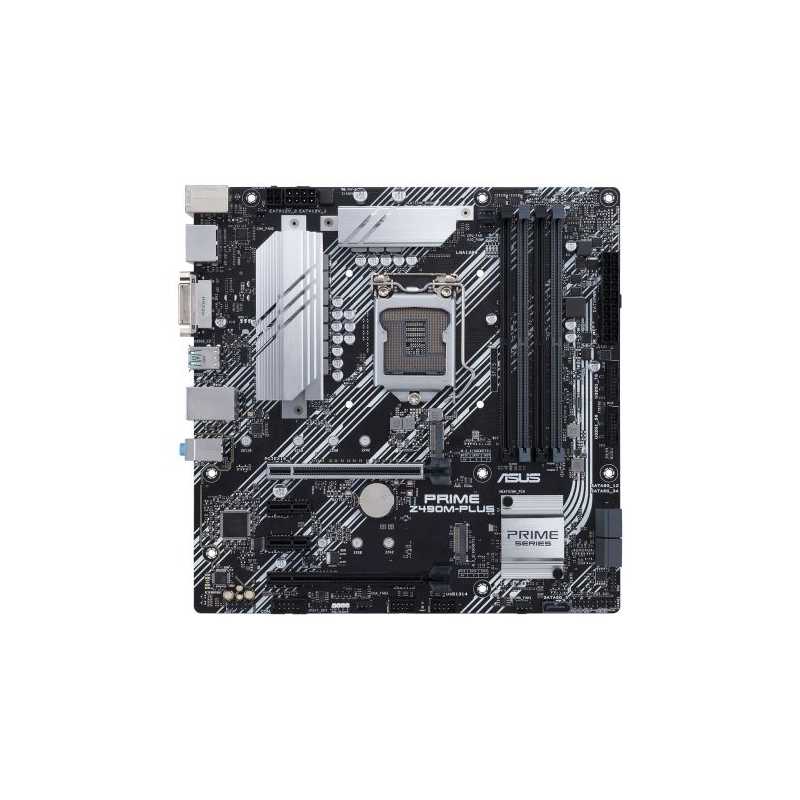

Asus PRIME Z490M-PLUS, Intel Z490, 1200, Micro ATX, 4 DDR4, XFire, DVI, HDMI, DP, M.2

Data sheet

.

1 x 8-pin EATX 12V1 x Front audio1 x Clear CMOS jumper1 x System panel1 x COM port

PCI Express

Intel 10th Gen Processors1 x PCIe 3.0 x16 (x16 mode)Intel® Z490 Chipset1 x PCIe 3.0 x16 (x4 mode)2 x PCIe 3.0 x1

Wireless

-

RAM Speeds

4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz

Accessories

I/O Shield2 x SATA 6Gb/s cables1 x M.2 Screw Package1 x Supporting DVDUser manual

USB Ports Supported

2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)

Storage

5 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - SATA & PCIe

RAID

RAID 0, 1, 5, 10

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1200

Chipset

Intel Z490

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

Maximum Memory

128GB

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

LAN

GB LAN

Audio

Realtek ALC887 8-channel high definition audio CODEC

Back Panel I/O Ports

1 x PS/2 keyboard/mouse combo1 x DVI-D1 x DisplayPort1 x HDMI1 x LAN (RJ45) port2 x USB 3.2 Gen22 x USB 3.2 Gen12 x USB 2.03 x Audio jacks

Internal I/O Connectors

1 x CPU Fan3 x Chassis Fan1 x AIO_PUMP1 x Lighting Control RGB Strip2 x USB 3.2 Gen12 x USB 2.02 x M.2 Socket 3 with M key1 x SPI TPM5 x SATA 6Gb/s1 x S/PDIF out1 x 4-pin EATX 12V1 x 24-pin EATX

CPU Support

Click here for CPU support

Package Type

Retail

Graphics Ports

1 x DVI-D1 x HDMI1 x DisplayPort

Additional Features

See Overview

Graphics

Supports Intel HD Graphics

Specific References

EAN13

4718017667838
