- Out of stock

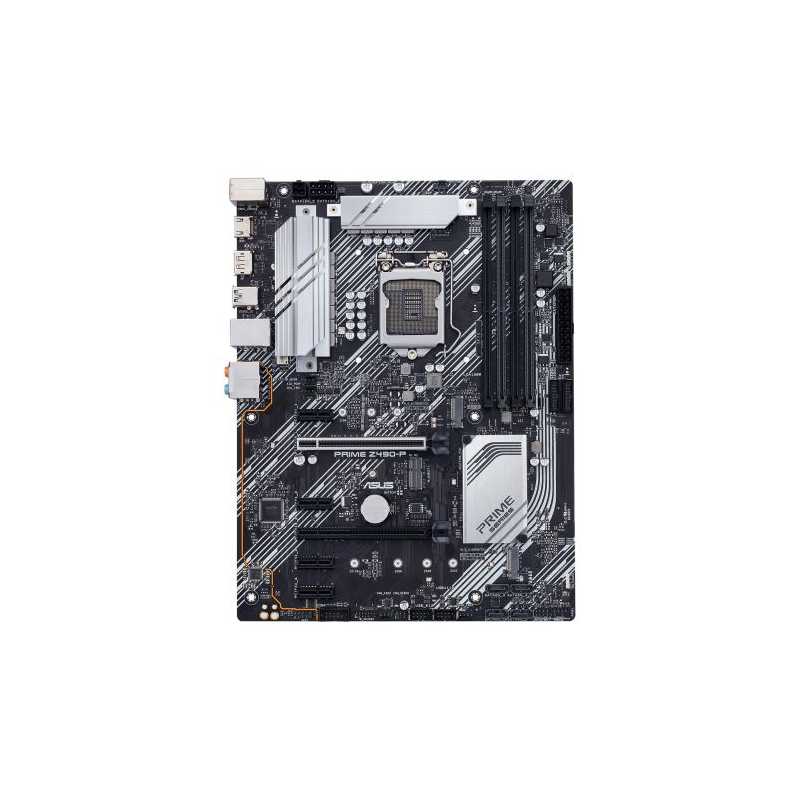

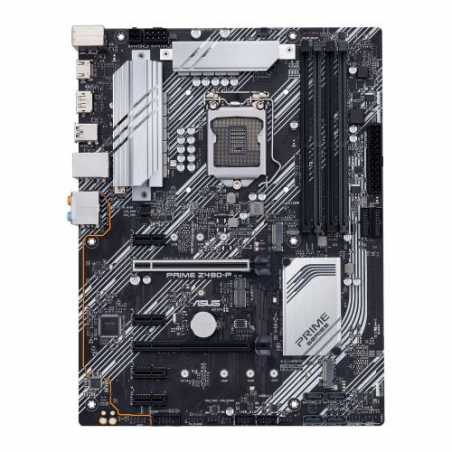

Asus PRIME Z490-P, Intel Z490, 1200, ATX, 4 DDR4, XFire, HDMI, DP, RGB Lighting, M.2
£183.86
VAT included
Intel® Z490 (LGA 1200) ATX motherboard with dual M.2, 11 DrMOS power stages, 1 Gb Ethernet, HDMI, DisplayPort, SATA 6Gbps, USB 3.2 Gen 2, Thunderbolt™ 3 support, and Aura Sync RGB Lighting
- Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
- Enhanced power solution: 10+1 DrMOS power stages, 6-layer PCB, ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Ultrafast connectivity: Dual M.2, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A ® and Thunderbolt™ 3 support
90MB12V0-M0EAY0
Data sheet
- .
- 1 x 4-pin EATX 12V1 x 24-pin EATX1 x 8-pin EATX 12V1 x Front audio1 x Clear CMOS jumper1 x System panel1 x COM port
- PCI Express
- Intel 10th Gen Processors1 x PCIe 3.0 x16 (x16 mode)Intel® Z490 Chipset1 x PCIe 3.0 x16 (x4 mode)4 x PCIe 3.0 x1
- Wireless
- M.2 slot only (Key E) - Wi-Fi module is sold separately
- RAM Speeds
- 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz
- Accessories
- Users manualI/O Shield2 x SATA 6Gb/s cables1 x Supporting DVD1 x M.2 SSD screw package1 xM.2 Key E screw package
- USB Ports Supported
- 2 x USB 3.2 Gen2 Type-A (at back)6 x USB 3.2 Gen1 (2 at back, 4 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280/22110) - SATA & PCIe1 x M.2 (2242/2260/2280) - SATA & PCIe
- RAID
- RAID 0, 1, 5, 10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1200
- Chipset
- Intel Z490
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD 2-Way CrossFireX Technology
- LAN
- GB LAN
- Audio
- Realtek ALC887 8-channel high definition audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse combo1 x DisplayPort1 x HDMI1 x LAN (RJ45)2 x USB 3.2 Gen22 x USB 3.2 Gen12 x USB 2.01 x Optical S/PDIF out5 x Audio jacks
- Internal I/O Connectors
- 1 x CPU Fan3 x Chassis Fan2 x Aura RGB Strip1 x Addressable Gen 22 x USB 3.2 Gen 12 x USB 2.02 x M.2 Socket 3 with M key1 x M.2 with E key for Wi-Fi module1 x SPI TPM4 x SATA 6Gb/s1 x AIO_PUMP1 x Thunderbolt
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 1.2200 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- Intel 10th Gen Processors1 x PCIe 3.0 x16 (x16 mode)Intel® Z490 Chipset1 x PCIe 3.0 x16 (x4 mode)4 x PCIe 3.0 x1
Specific References
- EAN13
- 4718017666046
