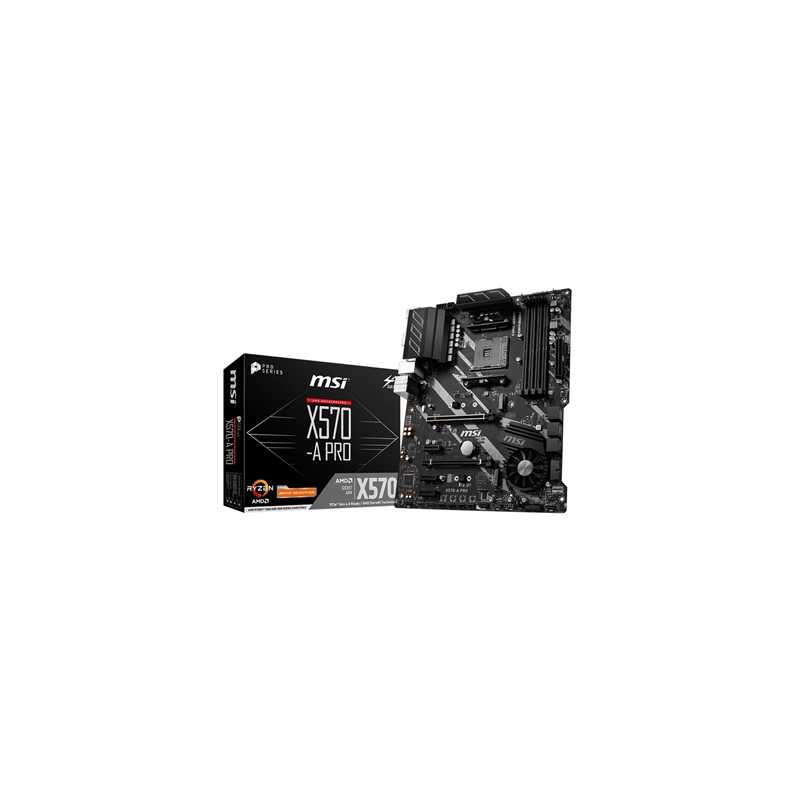

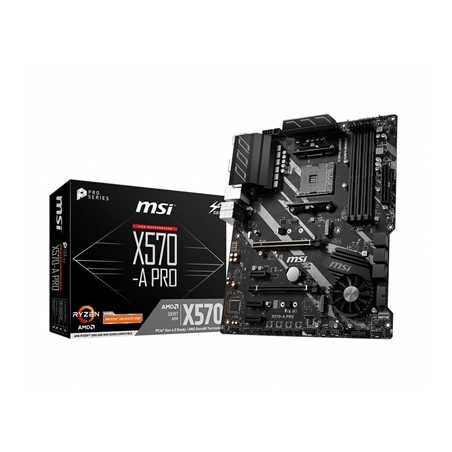

MSI X570-A PRO AMD Socket AM4 ATX DDR4 HDMI Double M.2 USB C 3.2 Gen2 Motherboard

Inspired from architectural design, with Lightning Gen 4 PCIe and M.2 solution, Frozr Heasink, Core Boost, DDR4 Boost, Audio Boost 4, USB 3.2 Gen2 connector
Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket
Supports 4 DIMMs, Dual Channel Memory DDR4, up to 4400+(OC) MHz
Lightning Gen 4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and performance.
Frozr Heatsink Design : Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
Set Core Power Free: Core Boost, 8+4 pin CPU power connectors, DDR4 Boost
Audio Boost 4 with NAHIMIC: Reward your ears with studio grade sound quality.
Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire
AMD Turbo USB 3.2 Gen2: Powered by AMD USB 3.2 Gen2 controller, ensures an uninterrupted connection with more stability and fastest USB speeds

Specifications

Processor
Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4

Chipset
AMD X570 Chipset

Memory
4 DDR4 memory slots, support up to 128GB (depending on the processor)
3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
Dual channel memory architecture
Supports non-ECC UDIMM memory
Sports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

Slots
1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
3rd Gen AMD Ryzen support PCIe 4.0 x16 mode
2nd Gen AMD Ryzen support PCIe 3.0 x16 mode
Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode
1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
3 x PCIe 3.0 x1 slots

Onboard Graphics
1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors
Maximum shared memory of 2048 MB

Multi-GPU
Supports 2-Way AMD CrossFire Technology

Storage
AMD X570 Chipset
4x SATA 6Gb/s ports(SATA3-SATA6)
2 x M.2 slot (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)
Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD X570 Chipset)
Supports PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices

ASMedia ASM1061
2x SATA 6Gb/s ports (SATA1, SATA2)

RAID
Supports RAID 0, RAID 1 and RAID 10

USB
AMD X570 Chipset
6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors)
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD Processor
2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio
7.1-Channel High Definition Audio
Supports Optical S/PDIF output

LAN
1 x Realtek 8111H Gigabit LAN Controller

Internal Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x TPM module connector
1 x Serial port connector
1 x Clear CMOS jumper
1 x Chassis Intrusion connector
2 x 4-pin RGB LED connectors
2 x 3-pin RAINBOW LED connectors
4 x EZ Debug LEDs

Back Panel Ports
Keyboard / Mouse
USB 3.2 Gen1 Type-A
LAN Port
HD Audio Connectors
Flash BIOS Button
USB 2.0 Ports
HDMI Port
USB 3.2 Gen2 Ports (Type-A + C)
USB 3.2 Gen1 Type-A Ports
Optical S/PDIF out

Dimensions
12 in. x 9.6 in. (30.4 cm x 24.3 cm)
ATX Form Factor

Mounting
9 mounting holes

Operating System
Support for Windows 10 64-bit
