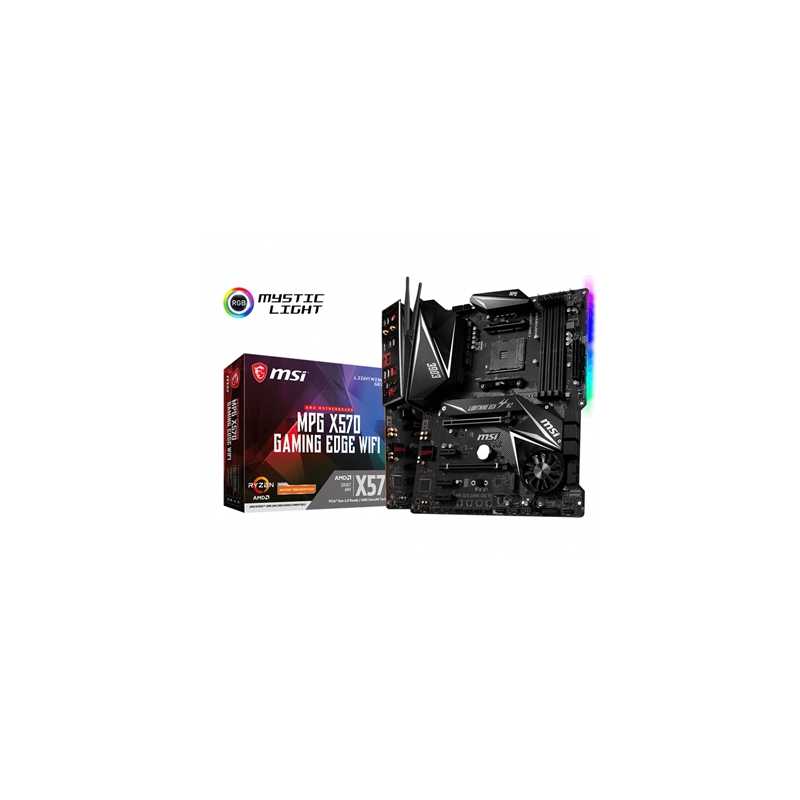

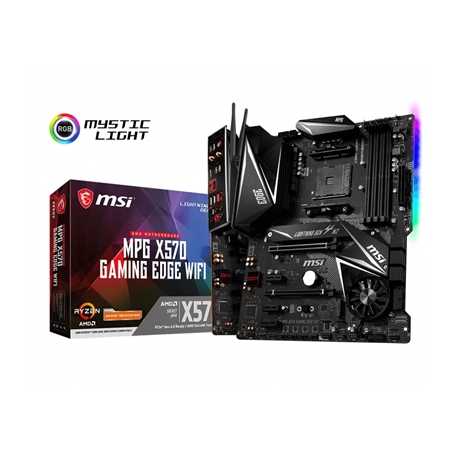

MSI MPG X570 GAMING EDGE WIFI AMD Socket AM4 DDR4 HDMI ATX M.2 USB C 3.2 RGB Motherboard

Full of sharp and salient lines reflecting gorgeous colors design, perfect balance between appearance and performance with Extended Heatsink Design, Frozr Heatsink Design, Core boost, Lightning Gen4, Pre-installed I/O Shielding and Mystic Light

Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
Supports DDR4 Memory, up to 4400+(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connector, Game Boost, DDR4 Boost
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE, AMBIENT LINK with user friendly user interface.

Specifications

Processor
Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4

Chipset
AMD X570 Chipset

Memory
4x DDR4 memory slots, support up to 128GB
s3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

Expansion Slots
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
3rd Gen AMD Ryzen support PCIe 4.0 x16 mode
2nd Gen AMD Ryzen support PCIe 3.0 x16 mode
Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode
1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
3x PCIe 3.0 x1 slots

Onboard Graphics
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz

Multi-GPU
Supports 2-Way AMD CrossFire Technology

Storage
AMD X570 Chipset
4x SATA 6Gb/s ports(SATA3-SATA6)
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)
- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)
- Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD X570 Chipset)
- Supports PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices

ASMedia ASM1061
2x SATA 6Gb/s ports (SATA1, SATA2)

RAID
Supports RAID 0, RAID 1 and RAID 10

USB
AMD X570 Chipset
2x USB 3.2 Gen 2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
4x USB 3.2 Gen 1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD Processor
2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel
2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio
7.1-Channel High Definition Audio
Supports Optical S/PDIF output

LAN
1x Realtek 8111H Gigabit LAN Controller

WIFI and Bluetooth
Intel Dual Band Wireless-AC 3168
Supports 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps
Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
The Wireless module is pre-install in the M2_3 (Key-E) slot

Internal Connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x TPM module connector
1x Serial port connector
1x Clear CMOS jumper
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
4x EZ Debug LEDs

Back Panel Ports
Keyboard / Mouse
Wireless / Bluetooth
USB 3.2 Gen1 Type-A
LAN
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI
USB 3.2 Gen2 Type-A + C
USB 3.2 Gen2 Type-A
Optical S/PDIF out

Dimensions
12 in. x 9.6 in. (30.4 cm x 24.3 cm)
ATX Form Factor

Mounting
9 mounting holes

Operating System
Support for Windows 10 64-bit
