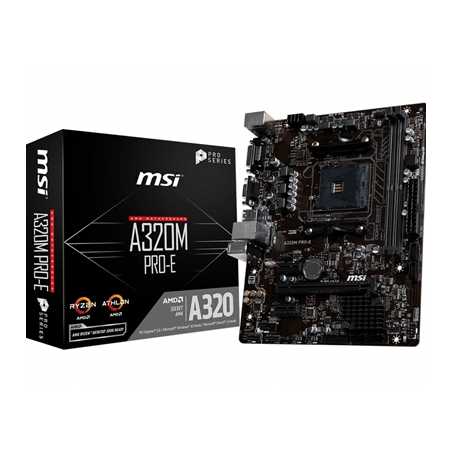

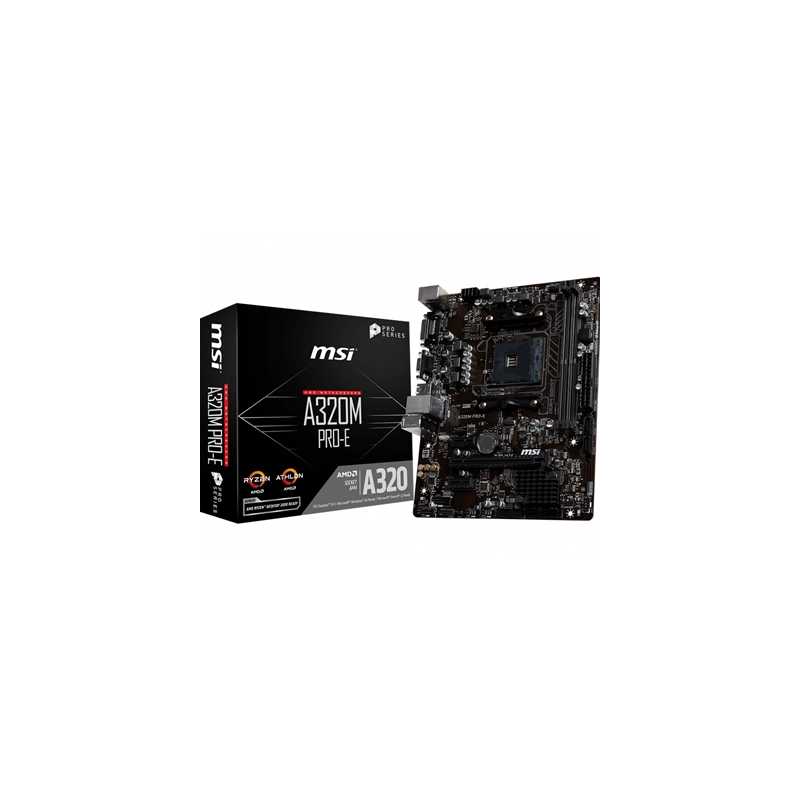

MSI A320M PRO-E AMD Socket AM4 Micro ATX DDR4 DVI-D/VGA USB 3.1 Motherboard

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost
Supports AMD Ryzen 1st and 2nd Generation/ Ryzen and Athlon with Radeon Vega Graphics / A-series and Athlon X4 Processors for Socket AM4
Supports DDR4 Memory, up to 3200 (OC) MHz
Audio Boost: Reward your ears with studio grade sound quality.
EZ Debug LED: Easiest way to troubleshoot.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

DIY Friendly
MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.

Enhanced Performance
MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.

Specifications

Processor
Supports AMD Ryzen 1st and 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics and A-series / Athlon X4 Processors for Socket AM4

Chipset
AMD 320 Chipset

Memory
2 x DDR4 memory slots, support up to 32GB
Support DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/ 3200(OC)Mhz
Dual channel memory architecture
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory
A-series / Athlon X4 processors support a maximum of DDR4 2400 Mhz.

Slots
1 x PCIe 3.0 x16 slot
Supports x 16 speed with RYZEN Series Processors
Supports x8 speed with AMD Ryzen with Radeon Vega Graphics and A-series / Athlon X4 Processors
Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors
2 x PCIe 2.0 x1 slots

Onboard Graphics
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz
Maximum shared memory of 2048 MB

Storage
4 x SATA 6Gb/s ports
Supports RAID 0, RAID 1 and RAID 10

USB
6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)

Audio
7.1-Channel High Definition Audio

LAN
1 x Realtek 8111H Gigabit LAN controller

Internal Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Clear CMOS jumper

Back Panel Ports
PS/2 Device Port
DVI-D Port
VGA Port
USB 3.1 Gen1
LAN Port
HD Audio Connectors
USB 2.0

Dimensions
9.3 in. x 7.4 in. (23.6 cm x 18.7 cm)
m-ATX Form Factor

Mounting
6 mounting holes

Operating System
Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
