- Out of stock

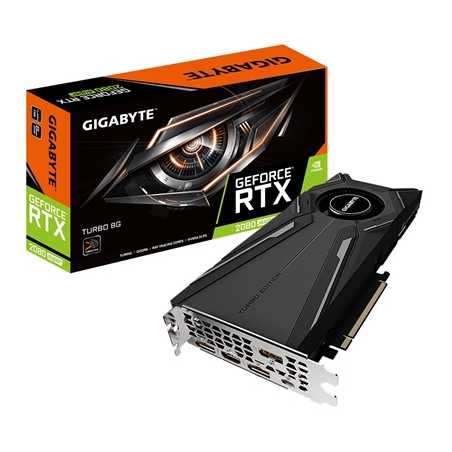

Gigabyte GeForce RTX 2080 SUPER TURBO 8GB Single Fan Graphics Card
£778.04
VAT included
Powered by GeForce RTX 2080 SUPER
Integrated with 8GB GDDR6 256-bit memory interface
Turbo Fan Cooling System
Vapor chamber direct touch GPU
Double ball bearing fan
Core Clock
1815 MHz
TURBO FAN COOLING SYSTEM
GIGABYTE turbo fan cooling system is designed for systems that use multiple graphics cards in space restricted chassis. With the vapor chamber direct touch GPU, blower fan and specially shaped exterior, it provides more airflow and better heat dissipation.
THE OPTIMIZED AIRFLOW
The specially designed exterior increases the intake airflow of the graphics card in a limited space, and then the heat generated by the graphics card is quickly taken out of the entire chassis by the ultra-durable blower fan.
VAPOR CHAMBER DIRECT TOUCH
Vapor chamber has the best thermal conductivity to transfer the heat rapidly from the GPU to the heat sink. In addition, the heat of the VRAM and the MOSFET is also conducted through the metal patch to the heat sink, and then the heat is taken out of the entire chassis by the blower fan.
DOUBLE BALL BEARING
Double ball bearing is the most durable fan construction with a durability of over 50,000 hours. Double ball bearing has at least twice life as sleeve bearing.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
POWER INDICATORS
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.
Light on :power cable disconnected
Light off :stable power supply
Blinking :abnormal power supply
NVIDIA NVLINK SUPPORT
Support for NVIDIA NVLinkTM (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in 4K gaming or VR gaming. You can also adjust the light effect on the bridge with the AORUS Engine.
Specifications
Graphics Processing
GeForce RTX 2080 SUPER
Core Clock
1815 MHz
RTX-OPS
63
CUDA Cores
3072
Memory Clock
15500 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
496 GB/s
Card Bus
PCI-E 3.0 x 16
Digital Max Resolution
7680x4320@60Hz
Multi-View
4
Card Size
L=272 W=113.65 H=35.1 mm
PCB Form
ATX
DirectX
12
OpenGL
4.5
Recommended PSU
650W
Power Connectors
8 Pin*1, 6 Pin*1
Output
DisplayPort 1.4 *3
HDMI 2.0b *1
USB Type-C(support VirtualLink)*1
SLI Support
2-way NVIDIA NVLINK
Accessories
1. Quick guide
2. Driver CD
Integrated with 8GB GDDR6 256-bit memory interface
Turbo Fan Cooling System
Vapor chamber direct touch GPU
Double ball bearing fan
Core Clock
1815 MHz
TURBO FAN COOLING SYSTEM
GIGABYTE turbo fan cooling system is designed for systems that use multiple graphics cards in space restricted chassis. With the vapor chamber direct touch GPU, blower fan and specially shaped exterior, it provides more airflow and better heat dissipation.
THE OPTIMIZED AIRFLOW
The specially designed exterior increases the intake airflow of the graphics card in a limited space, and then the heat generated by the graphics card is quickly taken out of the entire chassis by the ultra-durable blower fan.
VAPOR CHAMBER DIRECT TOUCH
Vapor chamber has the best thermal conductivity to transfer the heat rapidly from the GPU to the heat sink. In addition, the heat of the VRAM and the MOSFET is also conducted through the metal patch to the heat sink, and then the heat is taken out of the entire chassis by the blower fan.
DOUBLE BALL BEARING
Double ball bearing is the most durable fan construction with a durability of over 50,000 hours. Double ball bearing has at least twice life as sleeve bearing.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
POWER INDICATORS
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.
Light on :power cable disconnected
Light off :stable power supply
Blinking :abnormal power supply
NVIDIA NVLINK SUPPORT
Support for NVIDIA NVLinkTM (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in 4K gaming or VR gaming. You can also adjust the light effect on the bridge with the AORUS Engine.
Specifications
Graphics Processing
GeForce RTX 2080 SUPER
Core Clock
1815 MHz
RTX-OPS
63
CUDA Cores
3072
Memory Clock
15500 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
496 GB/s
Card Bus
PCI-E 3.0 x 16
Digital Max Resolution
7680x4320@60Hz
Multi-View
4
Card Size
L=272 W=113.65 H=35.1 mm
PCB Form
ATX
DirectX
12
OpenGL
4.5
Recommended PSU
650W
Power Connectors
8 Pin*1, 6 Pin*1
Output
DisplayPort 1.4 *3
HDMI 2.0b *1
USB Type-C(support VirtualLink)*1
SLI Support
2-way NVIDIA NVLINK
Accessories
1. Quick guide
2. Driver CD
