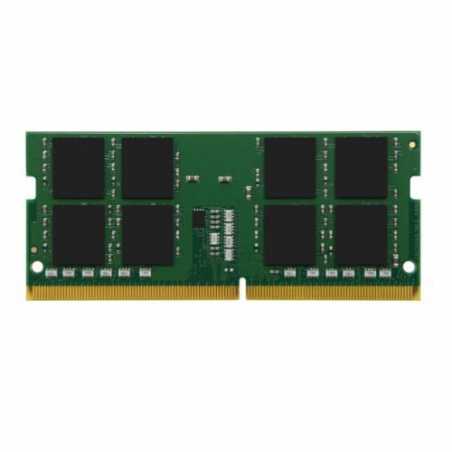

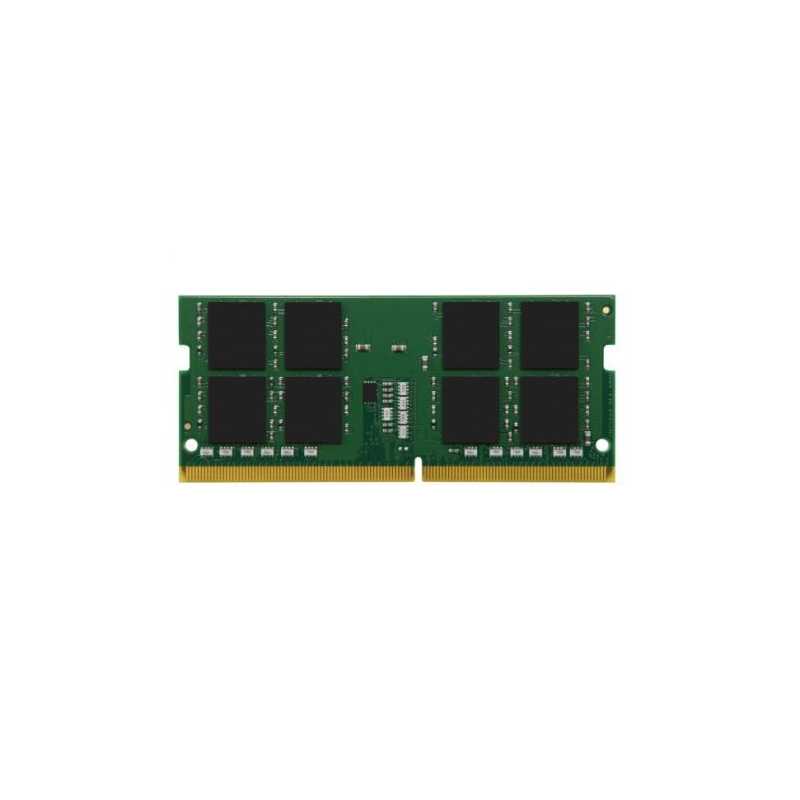

Kingston 8GB, DDR4, 2666MHz (PC4-21300), CL19, SODIMM Memory
£21.65
VAT included
Delivered within 1-2 days.
ValueRAM's KVR26S19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
KVR26S19S8/8
18 Items
Data sheet
- Warranty
- Lifetime
- Form Factor
- SODIMM
- DDR Type
- SODIMM DDR4
- Package Type
- Retail
- Package Weight
- 0.0225 kg
- Series
- Kingston ValueRAM
- Size
- 1 x 8GB
- Speed
- 2666 MHz
- Compliance
- PC4-21300
- Pins
- 260-pin
- CAS Latency
- 19-19-19
- Data Integrity Check
- Non-ECC
- Voltage
- 1.2V
- Additional Information
- See Overview
- Capacity
- 8GB
- Individual Module Size
- 8GB
- RGB
- No
Specific References
- EAN13
- 740617280630
