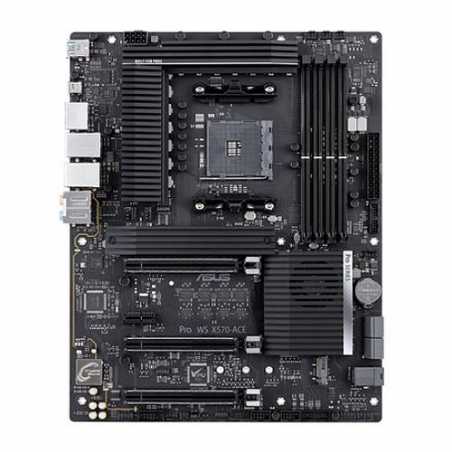

Asus PRO WS X570-ACE, Workstation, AMD X570, AM4, ATX, HDMI, DP, SLI/XFire, Dual GB LAN, Asus Control Center Express
search
  • Asus PRO WS X570-ACE, Workstation, AMD X570, AM4, ATX, HDMI, DP, SLI/XFire, Dual GB LAN, Asus Control Center Express
  • Asus PRO WS X570-ACE, Workstation, AMD X570, AM4, ATX, HDMI, DP, SLI/XFire, Dual GB LAN, Asus Control Center Express
  • Asus PRO WS X570-ACE, Workstation, AMD X570, AM4, ATX, HDMI, DP, SLI/XFire, Dual GB LAN, Asus Control Center Express

Asus PRO WS X570-ACE, Workstation, AMD X570, AM4, ATX, HDMI, DP, SLI/XFire, Dual GB LAN, Asus Control Center Express

£403.01
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock


AMD AM4 X570 ATX Workstation motherboard with 3 PCIe 4.0 x16, 14 with IR3555 power stages, DDR4 ECC memory support, Intel Gigabit LAN, dual M.2, U.2, and ASUS Control Center Express


  • Three PCIe 4.0 x16 slots with optimized lane arrangement of 3-way x8/x8/x8 to accelerate an increasingly diverse array of workloads
  • Reliable and responsive ECC memory suitable for mission critical tasks
  • ASUS Control Center Express: A software utility equipped with a GbE LAN controller for out-of-band management to enhance hardware-level control for improved IT efficiency
  • Ultra-fast storage: Up to 64Gbps M.2 & 32Gbps U.2, plus up to 10Gbps back-panel USB 3.2 Gen 2 with Type-A and Type-C ports
  • Ultra-efficient VRM heatsink: Beefy heatsinks, heatpipe, and built-in PCH fan design maximizes surface area for heat dissipation to enable unthrottled performance
  • Enhanced power solution: 12+2 IR3555 power stages, ProCool II connectors, alloy chokes and durable capacitors for stable power delivery
  • Active PCH heatsink solution: The low-noise custom Delta Superflo fan with a 60,000-hour durability, plus Air Duct and finned heatsink design for cooling control


Workstation Motherboard

ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software with support for out-of-band management, so they're also an efficient and cost-effective option for IT administrators.





Multi-GPU support

Fully loaded takes on new meaning when you have up to 24 PCI Express® lanes and those lanes can be split in a 3-way x8/x8/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of workloads, including AI training, 3D rendering, and scientific or financial modeling.





ASUS 2-WAY VGA holder

The Pro WS X570-ACE is packed with an exclusive two-way VGA holder to provide extra rigid support for up to two high-end graphics cards, to prevent potentially damaging bowing or bending. This VGA holder is easy to install and can be mounted with an additional system fan (up to 120mm), making sure your workstation has ample cooling to complete any task.





ASUS Control Center Express

ASUS Control Center Express is centralized server-grade software that works in conjunction with a GbE LAN controller which also serves as a management controller to reduce IT operational costs and improves efficiency. Its out-of-band management enables hardware-level control such as remote hardware reset, BIOS setting and update, and operating system installation across multiple clients, and remotely troubleshoot crashes or unexpected shutdowns.





Make your memory faster and reliable

Error-Correcting-Code (ECC) support offers a potent foundation for your build and enables Pro WS X570-ACE to automatically detect and repair single-bit memory errors, ensuring reliable and responsive performance in mission-critical environments.





ASUS OptiMem

ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.





Power delivery enhancements

The 3rd Gen AMD Ryzen™ processors boast more cores and bandwidth, demanding more power than typical desktop CPUs. Pro WS X570-ACE is geared up for the demands of these high-core-count processors, offering a stable power to ensure optimal performance.





ProCool II power connector

The latest ProCool II is an enhanced EATX 8-pin power connector that offers higher endurance and longer lifespan by lowering impedance to prevent hotspots and connector failure. The new design includes upgrades to metal amour and solid pins for better dissipation, as well as a warning LED display with a BIOS POST message to indicate an improper connection.





Trusted Stability

Pro WS X570-ACE features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.





Active PCH Heatsink

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Pro WS X570-ACE features an actively cooled heatsink to prevent throttling during sustained transfers.

Active Chipset Heatsink Solution includes:

Custom Delta Superflo Fan: The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.
Air Duct: A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.
Finned heatsink: The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.





Cooler by Design

Pro WS X570-ACE features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.





M.2 Heatsink

Pro WS X570-ACE features an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 22°C for optimal storage performance and improved SSD longevity.





M.2 & U.2

With x4 PCI Express® 4.0 bandwidth, Pro WS X570-ACE features up to 64Gbps M.2 and U.2 for faster data-transfer speeds — ideal for an operating system or application drive.





USB 3.2 Gen 2 back-panel connectors

The back panel of the Pro WS X570-ACE features five USB 3.2 Gen 2 connectors, including one reversible Type-C™ and four backward-compatible Type-A to deliver ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.





Armoury Crate

The new Armoury Crate portal keeps you updated with the latest drivers and BIOS releases. Its easy-to-use UI can be configured to show a variety of information, including security updates and bug patches.





ASUS Node

The ASUS Node connector features a bi-directional interface that offers all kinds of potential for DIY components and builds. The included ASUS Fan Extension Card II connects via Node, and In Win is developing a compatible OLED panel that fits into a chassis and offers LiveDash functionality and the ability to boot directly to the UEFI. FSP has also created a HydroDPM 1000W PSU that connects to Node to share power stats and temperature information while also enabling CPU fan control.





5-Way Optimization

ASUS 5-Way Optimization makes your PC smart. One click takes care of complex tuning, dynamically optimizing essential aspects of your system to provide overclocking and cooling profiles that are tailored for your rig.

An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.

Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.

Stress test function helps optimize and overclock for CPU- or memory-centric workloads.





Crystal Sound 3

Audio shielding
Separates analog/digital signal domains, significantly reducing multilateral interference.

Separate layer for left and right tracks
Ensures minimal crosstalk between audio paths.

Integrated amplifier
Capable of driving high-impedance headphones, without rolling-off high or low frequencies.

Premium Japanese-made audio capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.





AMD X570 chipset

The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI® and AMD CrossFireX™. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.





AMD AM4 Socket for 3rd and 2nd Gen AMD Ryzen™ / 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

The high-performance 3rd Gen AMD Ryzen™ processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express® 4.0/3.0 lanes for superb performance.
ASUS
90MB11M0-M0EAY0

Data sheet

.
1 x 4-pin ATX 12V1 x Front audio1 x System panel1 x Clear CMOS jumper1 x U.22 x USB 3.2 Gen 1
PCI Express
Ryzen 3rd Gen CPUs:2 x PCIe 4.0 x16 (x16 or dual x8) Ryzen 2nd Gen CPUs:2 x PCIe 3.0 x16 (x16 or dual x8) Ryzen 1st/2nd Gen CPUs: 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset1 x PCIe 4.0 x16 (x8 mode) 1 x PCIe 4.0 x1
Wireless
-
RAM Speeds
3rd Gen Ryzen CPUs:4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz2nd Gen Ryzen CPUs:3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 M
Accessories
Users manualI/O Shield4 x SATA 6Gb/s cables1 x M.2 Screw Package1 x Supporting DVD1 x ASUS VGA Holder
USB Ports Supported
1 x USB 3.2 Gen2 Type-C (at back)4 x USB 3.2 Gen2 Type-A (at back)4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)4 x USB 2.0 (at mid-board)
Storage
4 x SATA III1 x M.2 (2242/2260/2280/22110) - SATA & PCIe1 x M.2 (2242/2260/2280) - PCIe1 x U.2, support PCIe 3.0 x4 NVM Express storage
RAID
RAID 0, 1, 10
Warranty
3 Years
Motherboard Type
Server / Workstation
Form Factor
ATX
Socket
AMD AM4
Chipset
AMD X570
DDR Type
DDR4
RAM Technology
DDR4 ECC/Un-buffered (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
Multi-GPU Support
Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology
LAN
Dual GB LAN
Audio
Realtek S1220A 8-Channel High Definition Audio CODEC
Back Panel I/O Ports
1 x DisplayPort1 x HDMI2 x LAN (RJ45)1 x Optical S/PDIF out5 x Audio jacks2 x USB 3.2 Gen 1 Type-A4 x USB 3.2 Gen 2 Type-A1 x USB 3.2 Gen 2 Type-C
Internal I/O Connectors
1 x PCH_FAN2 x USB 2.02 x M.2 Socket 31 x COM port4 x SATA 6Gb/s1 x CPU Fan1 x CPU OPT Fan3 x Chassis Fan1 x AIO_PUMP 1 x S/PDIF out1 x 24-pin EATX1 x 8-pin ATX 12V
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
2.0000 kg
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
2 x LAN
Max LAN Speed
GB LAN
RGB Lighting
No
PCI/PCI Express
Ryzen 3rd Gen CPUs:2 x PCIe 4.0 x16 (x16 or dual x8) Ryzen 2nd Gen CPUs:2 x PCIe 3.0 x16 (x16 or dual x8) Ryzen 1st/2nd Gen CPUs: 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset1 x PCIe 4.0 x16 (x8 mode) 1 x PCIe 4.0 x1

Specific References

EAN13
4718017322713
