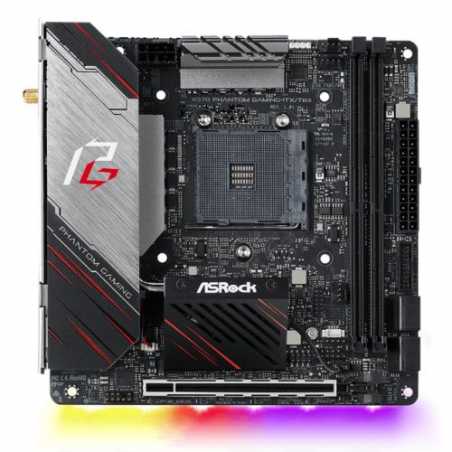

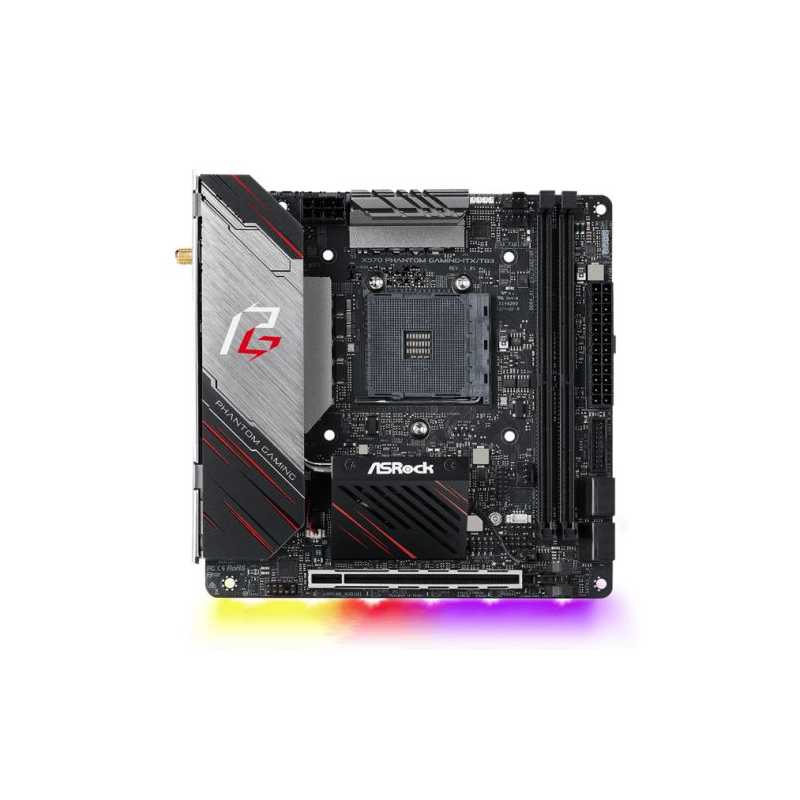

Asrock X570 PHANTOM GAMING-ITX/TB3, AMD X570, AM4, Mini ITX,  HDMI, DP, Wi-Fi, PCIe4, RGB Lighting, Thunderbolt 3
search
  • Asrock X570 PHANTOM GAMING-ITX/TB3, AMD X570, AM4, Mini ITX, 2 DDR4, HDMI, DP, Wi-Fi, PCIe4, RGB Lighting, M.2
  • Asrock X570 PHANTOM GAMING-ITX/TB3, AMD X570, AM4, Mini ITX,  HDMI, DP, Wi-Fi, PCIe4, RGB Lighting, Thunderbolt 3

Asrock X570 PHANTOM GAMING-ITX/TB3, AMD X570, AM4, Mini ITX, HDMI, DP, Wi-Fi, PCIe4, RGB Lighting, Thunderbolt 3

£244.08
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock

  • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
  • Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
  • Intel® Gigabit LAN
  • Supports DDR4 4533+ (OC)
  • 1 PCIe 4.0 x16
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
  • Supports Creative Sound Blaster Cinema 5
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
  • 3 USB 3.2 Gen2 (2 Rear Type A), 4 USB 3.2 Gen1 (2 Front, 2 Rear)
  • 1 Thunderbolt™ 3 Type-C
  • ASRock Polychrome SYNC



10 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.





Dr. MOS

Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.





Thunderbolt™ 3 Technology

Thunderbolt™ 3 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects up to 3 Thunderbolt™ 3 devices with a single wire, and even provides quick charging with 5V@3A (15W).
Just experience the world's fastest connectivity with Thunderbolt™ ready motherboards!





Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock’s motherboard will be the 1st product coming with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.





Steel Slot with Next Gen PCI4 Express

The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.





Flexible Integrated I/O Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.





Rule your own Lighting Way - Polychrome RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well





LGA 115X Mounting hole

A special design that uses Intel® LGA 115X mounting holes instead of AMD retention bracket.





Super Alloy Motherboard

Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dr. MOS
Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

I/O Armor
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.





Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.






Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
ASROCK
X570 PHANTOMG ITX

Data sheet

PCI Express
AMD Ryzen series CPUs (Matisse):1 x PCIe 4.0 x16AMD Ryzen series CPUs (Pinnacle Ridge):1 x PCIe 3.0 x16AMD Ryzen series CPUs (Picasso):1 x PCIe 3.0 x16
Wireless
Intel 802.11ax WiFi ModuleSupports IEEE 802.11a/b/g/n/axSupports Dual-Band (2.4/5 GHz)Supports WiFi6 802.11ax (2.4Gbps)2 antennasSupports Bluetooth 5.0 + High speed class IISupports MU-MIMO
Accessories
Quick Installation Guide, Support CD2 x SATA Data Cables1 x ASRock WiFi 2.4/5 GHz Antenna1 x Screw for M.2 Socket
USB Ports Supported
2 x USB 3.2 Gen2 Type-A & C (at back)4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)2 x USB 2.0 (at mid-board)
Storage
4 x SATA III1 x Hyper M.2 (2280) - PCIe
RAID
RAID 0, 1, 10
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Mini ITX
Socket
AM4
AMD AM4
Chipset
AMD X570
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
Maximum Memory
64GB
Multi-GPU Support
-
LAN
GB LAN
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Back Panel I/O Ports
2 x Antenna1 x PS/2 Mouse/Keyboard1 x HDMI1 x DisplayPort 1.4 Input1 x Optical SPDIF Out1 x USB 3.2 Gen2 Type-C2 x USB 3.2 Gen2 Type-A2 x USB 3.2 Gen11 x RJ-45 LAN1 x Clear CMOS ButtonHD Audio Jacks
Internal I/O Connectors
1 x SPI TPM1 x RGB LED1 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan1 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio1 x USB 2.01 x USB 3.2 Gen1
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
0.0000 kg
1.2900 kg
Graphics Ports
1 x HDMI1 x DisplayPort 1.4
Additional Features
See Overview
Graphics
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
M.2 Slot(s)
Yes
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
RGB Lighting
Yes
Yes (RGB)

Specific References

EAN13
4717677339147
