Asus ROG STRIX X570-F GAMING, AMD X570, AM4, ATX, DDR4, SLI/XFire, HDMI, DP, PCIe4, RGB Lighting, M.2
search
  • Asus ROG STRIX X570-F GAMING, AMD X570, AM4, ATX, DDR4, SLI/XFire, HDMI, DP, PCIe4, RGB Lighting
  • Asus ROG STRIX X570-F GAMING, AMD X570, AM4, ATX, DDR4, SLI/XFire, HDMI, DP, PCIe4, RGB Lighting, M.2
  • Asus ROG STRIX X570-F GAMING, AMD X570, AM4, ATX, DDR4, SLI/XFire, HDMI, DP, PCIe4, RGB Lighting, M.2

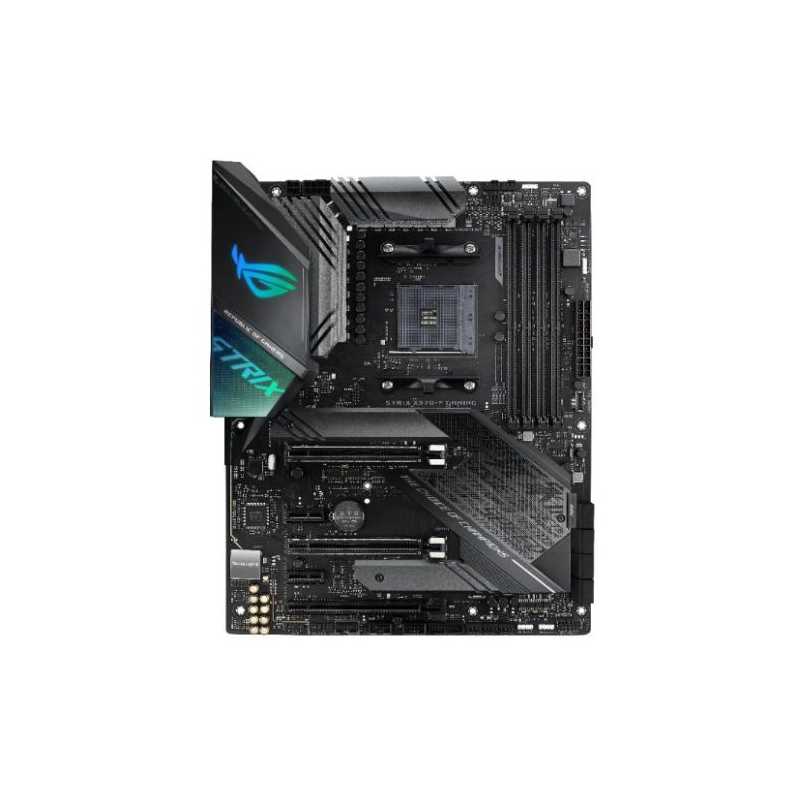

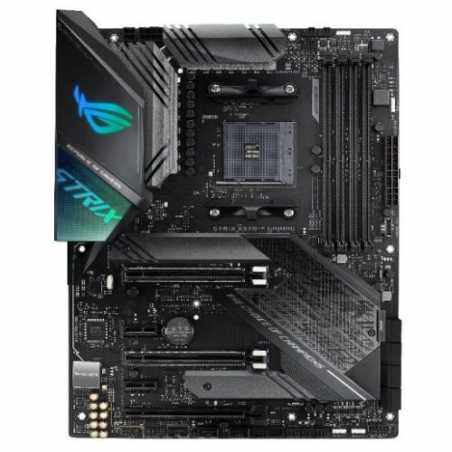

Asus ROG STRIX X570-F GAMING, AMD X570, AM4, ATX, DDR4, SLI/XFire, HDMI, DP, PCIe4, RGB Lighting, M.2

£338.84
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock



AMD X570 ATX gaming motherboard with PCIe 4.0, Aura Sync RGB lighting, Intel Gigabit Ethernet, dual M.2 with heatsinks, SATA 6Gb/s and USB 3.2 Gen 2


  • AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
  • Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 headers
  • Comprehensive cooling: Active PCH heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
  • Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
  • Gaming networking: Intel Gigabit Ethernet, ASUS LANGuard and GameFirst
  • 5-Way Optimisation: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
  • Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
  • Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector and BIOS Flashback™ for a friendlier building experience


The ROG Strix X570-F Gaming motherboard delivers the quintessential ROG experience with a compelling mix of features, comprehensive cooling options and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Topped off with a futuristic new design aesthetic with on-board RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with all you need to build a formidable weapon to rise above the rest.




Solid Hardware Specs
With comprehensive cooling options and upgraded power delivery to fuel Ryzen CPUs with more cores, plus faster storage and networking, ROG Strix X570-F Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.






Power

Power Design
Digital power control and an array of power stages ensures ROG Strix X570-F Gaming has the muscle to control the latest AMD Ryzen CPUs.




ProCool II Power Connector
ProCool II sockets are built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability.






Cooling

Cooling Innovation

MOS heatsink with 8mm heatpipe
A MOS heatsink provides a large contact area for the MOSFETs and chokes, and a heatpipe enables more efficient cooling of the west and north MOS heatsink for better performance and wattage resistance.

Thermal pad
A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink.

Active PCH heatsink
A PCH heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.

Dual M.2 heatsinks
The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.




Cooler by Design
ROG Strix X570 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS






Storage & Memory

Dual PCIe 4.0 M.2
Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.






Networking

Intel Gigabit Ethernet
ROG Strix X570-F Gaming features Intel Ethernet (I211-AT), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.






Audio

SupremeFX
Immerse yourself in sound with SupremeFX audio technology. Utilising the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.






Design & Customisation

The arrival of ROG Strix X570-F Gaming brings a brand-new design that features unique rainfall and cyber-text patterns. Together with the most diverse ecosystem of components in the industry that you can easily makes creating and customising your gaming rig that reflects your personal style wonderfully easy.






ID Design

Striking New Design
ROG Strix X570-F Gaming boasts a striking new design with an intricate rainfall pattern that cuts diagonally across the board and, along with the iconic ROG logo, is infused with Aura RGB lighting that glows in a brilliant array of vibrant colours. Futuristic cyber-text patterns provide an additional stylish accent, rounding out a design that proudly proclaims the board's gaming identity.






Aura Sync

Outshine the Competition
ROG Strix motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header - and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.






Certified Compatibility

Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. That's why ROG Strix undergoes an extensive certification program focused on providing the very best compatibility with the widest range of components and devices. Our extensive list of guaranteed-compatible components is an invaluable aid to building a ROG Strix gaming rig. It specifies thousands of compatible parts, and it includes a dedicated Qualified Vendor List (QVL) for memory - so you can build fuss-free.






ROG Strix Ecosystem

Gear up with ROG Strix components, from graphics and sound cards, to mice and keyboards, and up your game with complementary aesthetics, control and compatibility - and enjoy more choice than any competing brand.






Tune your Rig the Way you Want

The ROG Strix X570-F Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want






Gamefirst V

Gamefirst V Network Control
GameFirst V is an ROG-exclusive tool that let you build an ROG networking ecosystem with an ROG router. Select the best Wi-Fi channel for maximum stability and minimum interference, optimise network traffic and your connection for lag-free online gaming, team your gateways and keep tabs on bandwidth-hogging apps, all from an intuitive interface that enables easy, on-the-fly adjustments.




ROG First
ROG First searches for ROG routers on the network and lets you automatically optimise their adaptive QoS settings for the best gaming performance, so you don't have to log in and configure the router manually.






Gaming Audio

Sonic Studio Link
The new Sonic Studio Link now allows you to apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback devices.






Armoury Crate

Armoury Crate is a new software utility designed to give you centralised control of supported ROG gaming products. From a single intuitive interface, Armoury Crate lets you easily customise RGB lighting and effects for every compatible device in your arsenal and synchronise them with Aura Sync for unified system lighting effects. The software also provides control of settings for a select and growing number of ROG products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and ROG news areas to help you stay in touch with the ROG gaming community.






Ramcache III

RAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.
ASUS
90MB1160-M0EAY0

Data sheet

.
1 x M.2 Fan1 x USB 3.2 Gen 21 x USB 3.2 Gen 1
PCI Express
Ryzen 3rd Gen CPUs:2 x PCIe 4.0 x16 (x16 or dual x8)Ryzen 2nd Gen CPUs:2 x PCIe 3.0 x16 (x16 or dual x8)Ryzen 1st/2nd Gen CPUs: 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset1 x PCIe 4.0 x162 x PCIe 4.0 x 1
Ryzen 3rd Gen CPUs:2 x PCIe 4.0 x16 (x16 or dual x8)Ryzen 2nd Gen CPUs:2 x PCIe 3.0 x16 (x16 or dual x8)Ryzen 1st/2nd Gen CPUs: 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset1 x PCIe 4.0 x162 x PCIe 4.0 x 1 slots
Wireless
-
RAM Speeds
3rd Gen Ryzen CPUs:4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz2nd Gen Ryzen CPUs:3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2
Accessories
1 x User guide1 x ROG STRIX motherboard support DVD1 x 4-in-1 SATA 6Gb/s Cables1 x 2-in-1 M.2 Screws Package1 x Extension Cable for RGB strips1 x Extension Cable for RGB Addressable strips1 x ROG STRIX door hanger1 x ROG STRIX sticker1 x ROG thank you car
USB Ports Supported
1 x USB 3.2 Gen2 Type-C (at back)3 x USB 3.2 Gen2 Type-A (at back)5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)4 x USB 2.0 (at mid-board)1 x USB 3.2 Gen2 Type-C Front Panel Header
Storage
8 x SATA III2 x M.2 (2242/2260/2280/22110) - SATA & PCIe
RAID
RAID 0, 1, 10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
AMD AM4
Chipset
AMD X570
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
Multi-GPU Support
Supports NVIDIA 2-Way SLI TechnologySupports AMD 3-way CrossFireX TechnologySupports AMD 2-way CrossFireX Technology
LAN
GB LAN
Audio
ROG SupremeFX 8-Channel High Definition Audio S1220A CODEC
Back Panel I/O Ports
1 x BIOS Flashback Button1 x BIOS Flashback LED1 x Center/Subwoofer Speaker Out1 x DisplayPort 1.21 x HDMI 2.0b1 x Line In1 x Line Out1 x Mic-In1 x Rear Speaker Out1 x RJ-451 x S/PDIF-Out (Optical)3 x USB 3.2 Gen1 Type-A1 x USB 3.2 Gen1 Type-A (BIOS Flash
Internal I/O Connectors
1 x PCH_FAN1 x AAFP2 x Aura RGB Strip2 x Addressable Gen 22 x USB 2.02 x M.21 x SPI TPM8 x SATA 6Gb/s1 x CPU Fan1 x CPU OPT Fan2 x Chassis Fan1 x AIO_PUMP
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
1.7000 kg
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
RGB Lighting
Yes (RGB)
PCI/PCI Express
Ryzen 3rd Gen CPUs:2 x PCIe 4.0 x16 (x16 or dual x8)Ryzen 2nd Gen CPUs:2 x PCIe 3.0 x16 (x16 or dual x8)Ryzen 1st/2nd Gen CPUs: 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset1 x PCIe 4.0 x162 x PCIe 4.0 x 1

Specific References

EAN13
4718017378956
