- Out of stock

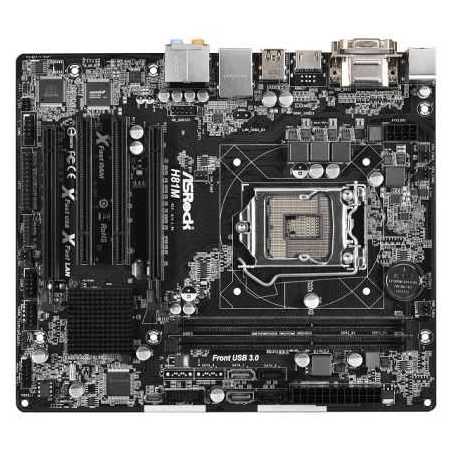

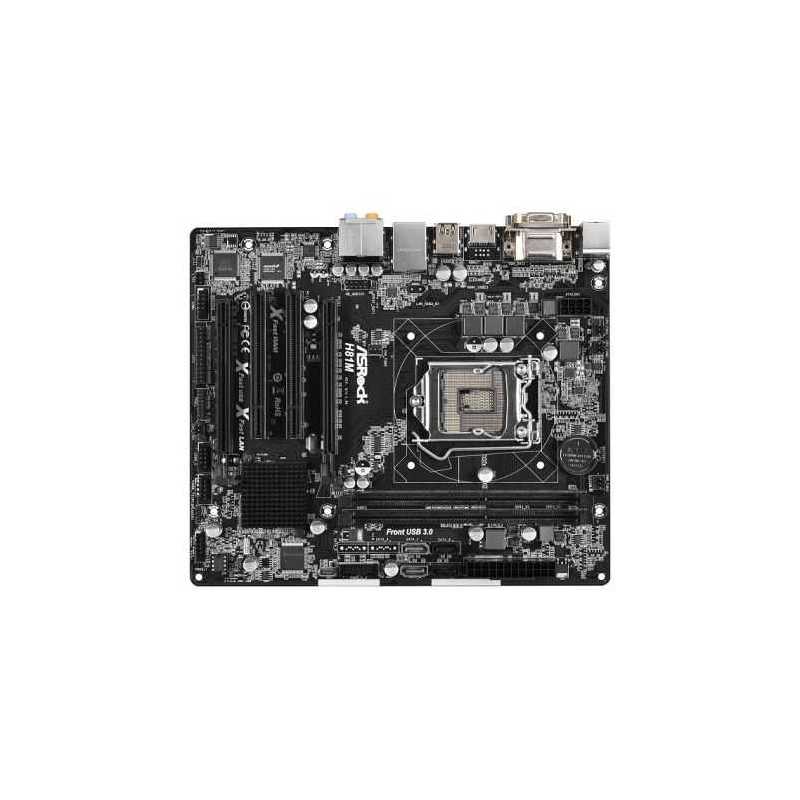

Asrock H81M, Intel H81, 1150, Micro ATX, 2 DDR3, CrossFire, HDMI, USB3
£50.79
VAT included
The most high-end H81 mATX that supports 2 front USB 3.0 ports, CrossFireX™ and Home Cloud
- A-Style : Home Cloud
- Supports 4th Gen Intel Core i7 / i5 / i3 / Xeon / Pentium / Celeron in LGA1150 Package
- 100% All Solid Capacitor design
- 4 Power Phase Design
- Supports Dual Channel DDR3 1600
- 2 x PCIe 2.0 x16, 2 x PCI
- Supports AMD Quad CrossFireX and CrossFireX
- Multi VGA Output Options : D-Sub, DVI-D, HDMI
- Qualcomm Atheros Gigabit LAN
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- 2 x SATA3, 2 x SATA2, 4 x USB 3.0 (2 x Front, 2 x Rear). 8 x USB 2.0
- Supports A-Tuning, XFast 555, Easy Driver Installer, FAN-Tastic Tuning, USB Key
Home Cloud - Remote Desktop Anytime, Anywhere
This motherboard supports Security Wake On Internet Technology with the onboard Qualcomm® Atheros® LAN, so you can connect with your PC from anywhere in the world. You will be able to power your PC on or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.
All Solid Capacitor Design
All the capacitors on this board are built with 100% all solid capacitors. With these solid caps, ASRock motherboards are allowed to perform more stably and ensure longer lifetime.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM, OC Tweaker and a whole lot more.
4 USB 3.0 (2 Front, 2 Back)
Besides the two USB 3.0 ports on the rear I/O supported by the chipset, this motherboard also has an added chip to support an additional front USB 3.0 header for two more USB 3.0 ports.
4 Power Phase Design
Compared to other competitors’ 3 Power Phase design, ASRock uses 4 Power Phase design and sturdy components for delivering smoother power to the CPU, thus enhancing the motherboard’s performance at lower temperatures.
XFast 555 Technology : XFast RAM / XFast LAN / XFast USB
5X Faster for Photoshop Execution
XFast RAM will create a virtual disk from the system memory to boost the performance. For Photoshop, It can even perform 5X faster than before.
Lower Latency In Game
XFast LAN can lower latency in the game after setting online game priority higher.
Time latency in World of Warcraft: Cataclysm
* Lower is better
USB Performance
Boosts up your USB speed
*The performance boost percentage may vary with a different configuration.
FAN-Tastic Tuning
Configure different fan speeds for respective temperatures using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.
USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Just plug in the USB Key and let your computer log in to windows automatically!
UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your PC.
Fast Boot
With ASRock’s exclusive Fast Boot technology, it takes less than 1.5 seconds* to logon to Windows® 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.
*The boot time may vary with a different configuration.
Dehumidifier
Users may prevent motherboard damages due to dampness by enabling “Dehumidifier Function”. When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
HDMI™ (High-Definition Multimedia Interface)
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
The most high-end H81 mATX that supports 2 front USB 3.0 ports, CrossFireX™ and Home Cloud
- A-Style : Home Cloud
- Supports 4th Gen Intel Core i7 / i5 / i3 / Xeon / Pentium / Celeron in LGA1150 Package
- 100% All Solid Capacitor design
- 4 Power Phase Design
- Supports Dual Channel DDR3 1600
- 2 x PCIe 2.0 x16, 2 x PCI
- Supports AMD Quad CrossFireX and CrossFireX
- Multi VGA Output Options : D-Sub, DVI-D, HDMI
- Qualcomm Atheros Gigabit LAN
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- 2 x SATA3, 2 x SATA2, 4 x USB 3.0 (2 x Front, 2 x Rear). 8 x USB 2.0
- Supports A-Tuning, XFast 555, Easy Driver Installer, FAN-Tastic Tuning, USB Key
Home Cloud - Remote Desktop Anytime, Anywhere
This motherboard supports Security Wake On Internet Technology with the onboard Qualcomm® Atheros® LAN, so you can connect with your PC from anywhere in the world. You will be able to power your PC on or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.
All Solid Capacitor Design
All the capacitors on this board are built with 100% all solid capacitors. With these solid caps, ASRock motherboards are allowed to perform more stably and ensure longer lifetime.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM, OC Tweaker and a whole lot more.
4 USB 3.0 (2 Front, 2 Back)
Besides the two USB 3.0 ports on the rear I/O supported by the chipset, this motherboard also has an added chip to support an additional front USB 3.0 header for two more USB 3.0 ports.
4 Power Phase Design
Compared to other competitors’ 3 Power Phase design, ASRock uses 4 Power Phase design and sturdy components for delivering smoother power to the CPU, thus enhancing the motherboard’s performance at lower temperatures.
XFast 555 Technology : XFast RAM / XFast LAN / XFast USB
5X Faster for Photoshop Execution
XFast RAM will create a virtual disk from the system memory to boost the performance. For Photoshop, It can even perform 5X faster than before.
Lower Latency In Game
XFast LAN can lower latency in the game after setting online game priority higher.
Time latency in World of Warcraft: Cataclysm
* Lower is better
USB Performance
Boosts up your USB speed
*The performance boost percentage may vary with a different configuration.
FAN-Tastic Tuning
Configure different fan speeds for respective temperatures using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.
USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Just plug in the USB Key and let your computer log in to windows automatically!
UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your PC.
Fast Boot
With ASRock’s exclusive Fast Boot technology, it takes less than 1.5 seconds* to logon to Windows® 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.
*The boot time may vary with a different configuration.
Dehumidifier
Users may prevent motherboard damages due to dampness by enabling “Dehumidifier Function”. When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
HDMI™ (High-Definition Multimedia Interface)
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
H81M
Data sheet
- .
- 1 x Front Audio1 x SPDIF Out
- PCI Express
- 2 x PCIe 2.0 x16
- Wireless
- -
- RAM Speeds
- 1600/1333/1066
- Accessories
- Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables
- USB Ports Supported
- 4 x USB 3.0 (2 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
- Storage
- 2 x SATA III2 x SATA II
- RAID
- -
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- 1150
Intel 1150 - CPU
- -
- Chipset
- Intel H81
- RAM Technology
- DDR3 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 16GB
- Multi-GPU Support
- Supports AMD Quad CrossFireX
- PCI
- 2 x PCI
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x DVI-D Port1 x HDMI Port1 x Optical SPDIF Out Port4 x USB 2.0 Ports2 x USB 3.0 Ports1 x RJ-45 LAN PortHD Audio Jacks
- Internal I/O Connectors
- 2 x USB 2.0 connectors1 x USB 3.0 connector1 x IR1 x Print Port1 x COM Port1 x Chassis Intrusion1 x TPM2 x CPU Fan (1 x 4-pin & 3-pin)2 x Chassis Fan (1 x 4-pin & 3-pin)1 x Power Fan (3-pin)1 x 24 pin ATX Power1 x 8 pin 12V Power
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 0.9240 kg
- Graphics Ports
- 1 x VGA1 x DVI-D1 x HDMI
- Graphics
- Supports Intel HD Graphics
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- No
Specific References
- EAN13
- 4717677321623
