TP-LINK (TL-SL1218MP) 16-Port 10/100Mbps + 2-Port GB Unmanaged PoE Switch, 2 combo GB SFP Slots, 16-Port PoE, Rackmountable
search
  • TP-LINK (TL-SL1218MP) 16-Port 10/100Mbps + 2-Port GB Unmanaged PoE Switch, 2 combo GB SFP Slots, 16-Port PoE
  • TP-LINK (TL-SL1218MP) 16-Port 10/100Mbps + 2-Port GB Unmanaged PoE Switch, 2 combo GB SFP Slots, 16-Port PoE
  • TP-LINK (TL-SL1218MP) 16-Port 10/100Mbps + 2-Port GB Unmanaged PoE Switch, 2 combo GB SFP Slots, 16-Port PoE
  • TP-LINK (TL-SL1218MP) 16-Port 10/100Mbps + 2-Port GB Unmanaged PoE Switch, 2 combo GB SFP Slots, 16-Port PoE
  • TP-LINK (TL-SL1218MP) 16-Port 10/100Mbps + 2-Port GB Unmanaged PoE Switch, 2 combo GB SFP Slots, 16-Port PoE
  • TP-LINK (TL-SL1218MP) 16-Port 10/100Mbps + 2-Port GB Unmanaged PoE Switch, 2 combo GB SFP Slots, 16-Port PoE
  • TP-LINK (TL-SL1218MP) 16-Port 10/100Mbps + 2-Port GB Unmanaged PoE Switch, 2 combo GB SFP Slots, 16-Port PoE, Rackmountable

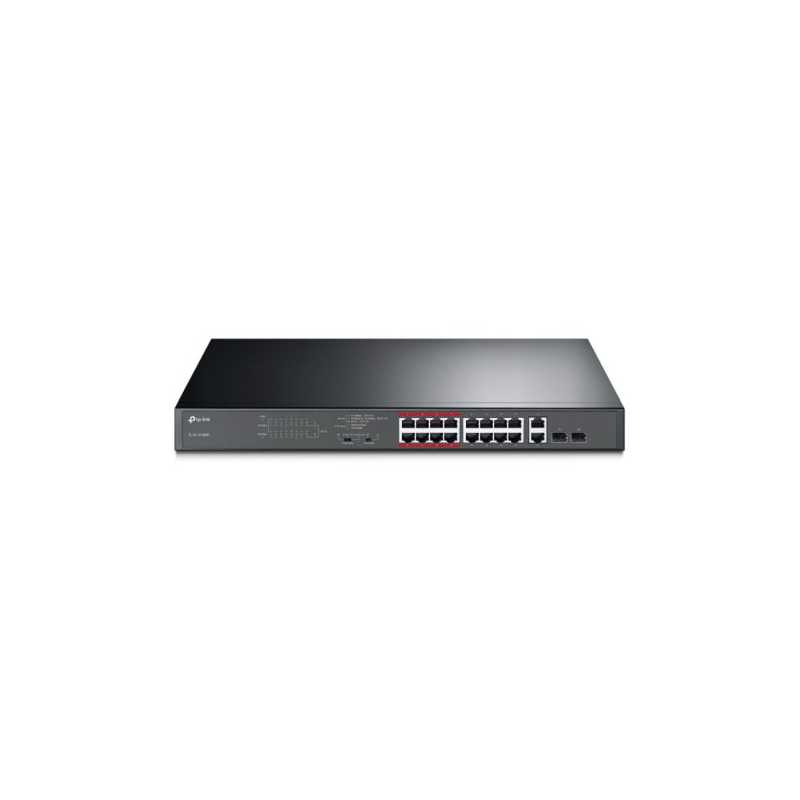

TP-Link TL-SL1218MP 16-Port Metal 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch (192W)

£148.01
VAT included
Stock status: Out of stock
Out of stock

Easy to Use PoE Switch with Innovative Design


Up To 250m Data and Power Transmission for Surveillance

  • 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
  • Up to 250m data and power transmission under extend mode specially designed for surveillance system
  • Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
  • High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
  • Easy to use, with no configuration and installation needed


High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.



Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.



Video Quality Guaranteed
To guarantee the quality of sensitive applications like video monitor, TL-SL12128MP offers higher priority options for those IPC connected ports.

Quantity
Out of stock

Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.


Specifications

HARDWARE FEATURES

Interface:
16 PoE+ 10/100Mbps RJ45 Ports
2 10/100/1000Mbps RJ45 Ports
2 Combo Gigabit SFP Slots

Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-X MMF, SMF

Fan Quantity:
2 Fans

Physical Security Lock:
Yes

Power Supply:
100-240V AC, 50/60 Hz

Backup Bandwidth:
7.2 Gbps

PoE+ Ports(RJ45):
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W

Mac Address Table:
8K

Dimensions ( W x D x H ):
17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)

Max Power Consumption:
18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)

Max Heat Dissipation:
63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)

SOFTWARE FEATURES

Advanced Features:
Compatible With IEEE 802.3at/af Compliant PDs
Port Priority Mode
Extend Mode (Up to 250m PoE power supply and data transmission)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control

Transmission Method:
Store-And-Forward

OTHERS

Certification:
CE, FCC, RoHS

Package Contents:
TL-SL1218MP, Power Cable, Installation Guide
TP-LINK
TL-SL1218MP

Data sheet

Data Transfer Rate
10/100 & 10/100/1000 Mbps
Warranty
Lifetime Warranty
Package Type
Retail
Package Weight
2.9530 kg
Dimensions
440 x 180 x 44 mm
Speed
10/100/1000
Power Supply
100-240V AC, 50/60Hz
Interface(s)
16 x 10/100Mbps RJ45 Ports2 x 10/100/1000Mbps RJ45 Ports2 x Gigabit SFP Slots
Ports
16 Ports
Environment (℃)
Operating Temperature: 0C~40C (32F~104F)Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90%RH non-condensingStorage Humidity: 5%~90%RH non-condensing
Rackmountable
Yes
Management
No
Number of Ports
16
PoE Ports (RJ45)
16 PoE+ 10/100Mbps RJ45 portsStandard: 802.3at/802.3af compliantPoE Ports: Port1- Port16PoE Power Budget: 192W
Switching Capacity
7.2Gbps
Environment
Operating Temperature: 0C~40C (32F~104F)Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90%RH non-condensingStorage Humidity: 5%~90%RH non-condensing
Advanced Functions
Extend Mode (Up to 250m PoE power supply and data transmission)
Mac Address Table
8k
Packet Forwarding Rate
5.36Mpps
Jumbo Frame
10KB
POE
Yes
RJ45 Data Transfer Rate
10/100 & 10/100/1000 Mbps
Managed/Unmanaged
Unmanaged
PoE capable
Yes
