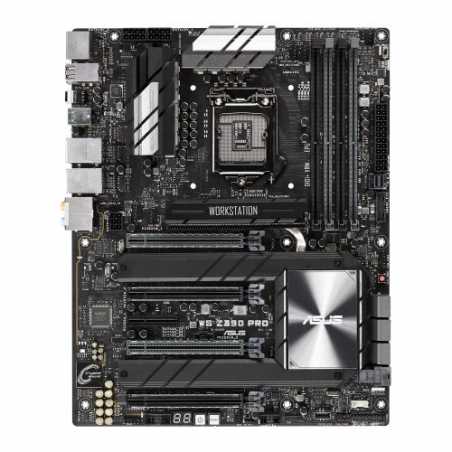

Asus WS Z390 PRO, Workstation, Intel Z390, 1151, ATX, HDMI, DP, Dual LAN, AI Overclocking, Quad-GPU Support, M.2
£425.73
VAT included
Intel LGA 1151 ATX motherboard with AI Overclocking, quad-GPU support, DDR4 4266 MHz, Dual M.2, Intel Optane memory ready, SATA 6Gb/s, USB 3.1 Gen 2 Type-C and front-panel connectors
- Quad-GPU supports: Fits up to four dual-slot graphics cards and supports NVIDIA® SLI™ or AMD CrossFireX™ GPU configurations.
- AI overclocking: Quickly optimises your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts.
- OptiMem II: Careful routing of traces and vias, plus ground layer optimisations to preserve signal integrity for improved memory overclocking
- Enhanced power solution: Premium components provide better power efficiency
- UEFI BIOS: New UEFI options include a search function that allows you to find settings easily
- Industry-leading cooling options: Comprehensive controls for fans and water pump, via Fan Xpert 4 or the acclaimed UEFI
- Dual M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability
- Ultra-fast storage: dual M.2 and U.2, plus USB 3.1 Gen 2 with Type-A and Type-C ports onboard and a front-panel connector.
Multi-GPU support
WS Z390 PRO fits up to four dual-slot graphics cards and supports both NVIDIA® SLI™ and AMD CrossFireX™ for multi-GPU setups that harness the full power of the latest graphics technologies, delivering the best performance for design, modeling, medical research and processing-intensive simulation and rendering applications.
Tune it your way
______________________________________________________________
WS Z390 PRO simplifies CPU overclocking with software and extensive tweaking options that give beginners and seasoned overclockers alike the tools to build well-tuned machines. A new memory trace layout provides stability and compatibility for both traditional DIMMs and RGB-infused memory, letting you pair a broad choice of DRAM kits with your build.
AI Overclocking
ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system.
5-way Optimisation
Overclocking Intelligence
Take care of complex tuning with just one click. ASUS 5-Way Optimisation is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimisation leverages the same onboard intelligence as AI Overclocking, but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the get-go.
Media-acclaimed UEFI BIOS
he UEFI BIOS is an early waypoint on any PC-building journey, and WS Z390 PRO offers one of the best in the business.
Cool and Reliable
______________________________________________________________
Designed to tackle compute workloads WS Z390 PRO has enhanced power delivery for multithreaded processors and an array of controllable headers for liquid loops and air coolers.
Cooler by design
WS Z390 PRO features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
M.2 heatsink
Keep your SSD cooler
WS Z390 PRO has an ultra-efficient heatsink to reduce M.2 SSD temperatures for optimal storage performance and improved SSD longevity.
Ultrafast Connectivity
______________________________________________________________
Intel Z390 chipset
The Intel® Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors. It provides improved performance by utilising serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
Intel LGA 1151 ATX motherboard with AI Overclocking, quad-GPU support, DDR4 4266 MHz, Dual M.2, Intel Optane memory ready, SATA 6Gb/s, USB 3.1 Gen 2 Type-C and front-panel connectors
- Quad-GPU supports: Fits up to four dual-slot graphics cards and supports NVIDIA® SLI™ or AMD CrossFireX™ GPU configurations.
- AI overclocking: Quickly optimises your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts.
- OptiMem II: Careful routing of traces and vias, plus ground layer optimisations to preserve signal integrity for improved memory overclocking
- Enhanced power solution: Premium components provide better power efficiency
- UEFI BIOS: New UEFI options include a search function that allows you to find settings easily
- Industry-leading cooling options: Comprehensive controls for fans and water pump, via Fan Xpert 4 or the acclaimed UEFI
- Dual M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability
- Ultra-fast storage: dual M.2 and U.2, plus USB 3.1 Gen 2 with Type-A and Type-C ports onboard and a front-panel connector.
Multi-GPU support
WS Z390 PRO fits up to four dual-slot graphics cards and supports both NVIDIA® SLI™ and AMD CrossFireX™ for multi-GPU setups that harness the full power of the latest graphics technologies, delivering the best performance for design, modeling, medical research and processing-intensive simulation and rendering applications.
Tune it your way
WS Z390 PRO simplifies CPU overclocking with software and extensive tweaking options that give beginners and seasoned overclockers alike the tools to build well-tuned machines. A new memory trace layout provides stability and compatibility for both traditional DIMMs and RGB-infused memory, letting you pair a broad choice of DRAM kits with your build.
AI Overclocking
ASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system.
5-way Optimisation
Overclocking Intelligence
Take care of complex tuning with just one click. ASUS 5-Way Optimisation is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimisation leverages the same onboard intelligence as AI Overclocking, but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the get-go.
Media-acclaimed UEFI BIOS
he UEFI BIOS is an early waypoint on any PC-building journey, and WS Z390 PRO offers one of the best in the business.
Cool and Reliable
Designed to tackle compute workloads WS Z390 PRO has enhanced power delivery for multithreaded processors and an array of controllable headers for liquid loops and air coolers.
Cooler by design
WS Z390 PRO features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
M.2 heatsink
Keep your SSD cooler
WS Z390 PRO has an ultra-efficient heatsink to reduce M.2 SSD temperatures for optimal storage performance and improved SSD longevity.
Ultrafast Connectivity
Intel Z390 chipset
The Intel® Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors. It provides improved performance by utilising serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
90SW00L0-M0EAY0
Data sheet
- .
- 1 x 6-pin EATX 12V1 x 24-pin EATX2 x 8-pin EATX 12V1 x Front audio1 x System panel1 x 5-pin EXT_FAN1 x MemOK! II switch1 x Power-on button1 x Reset button1 x Clear CMOS button2 x U.21 x COM port1 x RGB
- PCI Express
- 4 x PCIe 3.0 x161 x PCIe x4
- Wireless
- -
- RAM Speeds
- 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz
- Accessories
- ASUS Q-Shield1 x 2-Way SLI bridge1 x COM port cable6 x SATA cables2 x M.2 Screw Package1 x CPU installation tool3-Way & 4-Way SLI bridges1 x Q-Connector1 x 2-port USB 2.0 module1 x Ext Cable for RGB strips
- USB Ports Supported
- 6 x USB 3.1 Gen 2 (5 Type-A & 1 Type-C at back)2 x USB 3.1 Gen 2 (2 Type-A or C at mid-board)2 x USB 3.1 Gen 1 (at mid-board)6 x USB 2.0 ports (4 at back, 2 at mid-board)
- Storage
- 6 x SATA III2 x M.2 x4 (2242/2260/2280/22110) - SATA & PCIe2 x U.2
- RAID
- RAID 0, 1, 5, 10
- Warranty
- 3 Years
- Motherboard Type
- Server / Workstation
- Form Factor
- ATX
- Socket
- Intel 1151 - Coffee Lake
- Chipset
- Intel Z390
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports NVIDIA Quad-GPU SLISupports NVIDIA 4-Way SLISupports AMD Quad-GPU CrossFireXSupports AMD 4-Way CrossFireX
- LAN
- Dual GB LAN
- Audio
- Realtek ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Back Panel I/O Ports
- 1 x DisplayPort1 x HDMI2 x LAN (RJ45)6 x USB 3.1 Gen 2 (5 Type-A+1 Type-C) 4 x USB 2.01 x USB BIOS Flashback Button1 x 8-channel Audio I/O
- Internal I/O Connectors
- 1 x USB 3.1 Gen21 x USB 3.1 Gen 11 x USB 2.02 x M.21 x TPM6 x SATA 6Gb/1 x CPU Fan1 x CPU OPT Fan3 x Chassis Fan1 x H_AMP fan1 x W_PUMP+1 x Thunderbolt
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 2.0000 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 2 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- No
- PCI/PCI Express
- 4 x PCIe 3.0 x161 x PCIe x4
