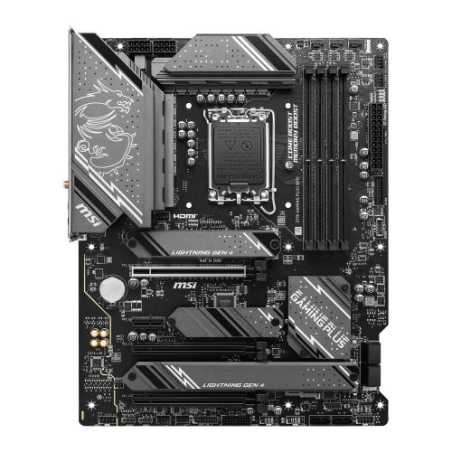

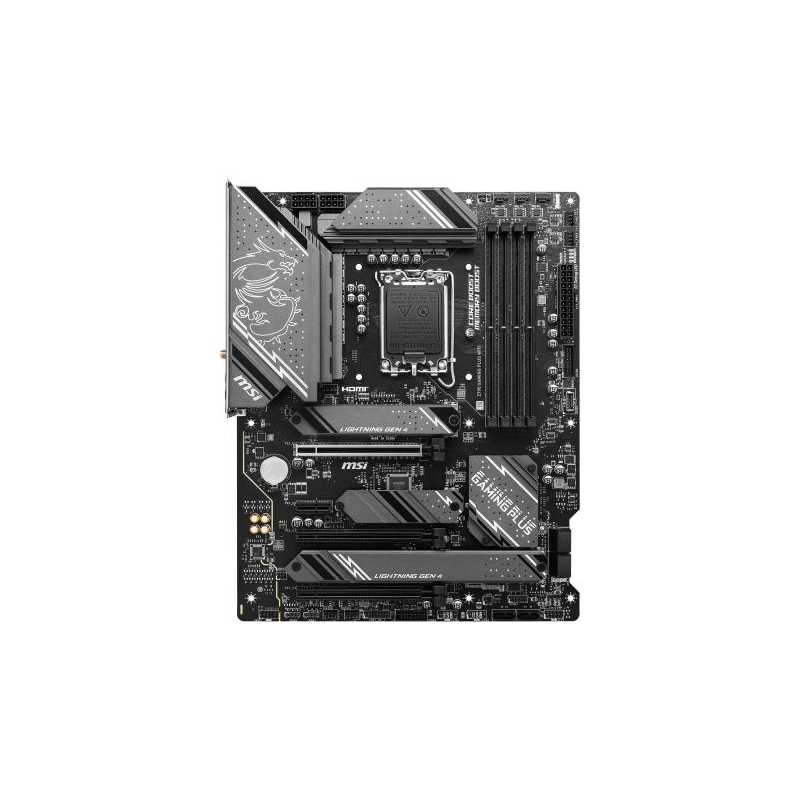

MSI Z790 GAMING PLUS WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 4x M.2
£214.56
VAT included
Delivered within 1-2 days.
Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage performance.
M.2 Shield FROZR
M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
Z790 GAMING PLUS WIFI
20 Items
Data sheet
- .
- 1 x USB4 card (JTBT_U4_1, supports RTD3)4 x USB 2.04 x USB 5Gbps Type-A1 x USB 10Gbps Type-C
- Wireless
- Intel Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3, FIPS, FISMA
- RAM Speeds
- Up to 7200(OC)
- Accessories
- Wi-Fi Antenna2 x SATA CablesEZ M.2 ClipsM.2 Screw / Standoff SetDVD DriverCable StickersQuick Installation GuideEU Regulatory Notice
- USB Ports Supported
- Rear:1 x USB 20Gbps Type-C 1 x USB 10Gbps Type-A2 x USB 5Gbps Type-A4 x USB 2.0Front:1 x USB 10Gbps Type-C4 x USB 5Gbps Type-A4 x USB 2.0
- Storage
- 4 x SATA III4 x M.2M.2_1 (22110/2280/2260/2242) - PCIe 4.0 x4M.2_2 (2280/2260/2242) - PCIe 4.0 x4M.2_3 (2280/2260/2242) - SATA & PCIe 4.0 x4M.2_4 (2280/2260/2242) - SATA & PCIe 4.0 x4
- RAID
- Supports RAID 0, 1, 5 and 10 for SATA storage devicesSupports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1700
- Chipset
- Intel Z790
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports non-ECC, un-buffered memorySupports Intel XMP3.0 OC
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 2.5GB LAN
- Audio
- Realtek ALC897 Codec7.1-Channel High Definition Audio
- Back Panel I/O Ports
- 1 x USB 20Gbps Type-C 1 x USB 10Gbps Type-A2 x USB 5Gbps Type-A4 x USB 2.01 x DisplayPort 1.41 x HDMI 2.11 x PS/2 Keyboard/Mouse Combo1 x RJ-451 x Audio Line In4 x Audio Line Out1 x Microphone In2 x SMA Antenna
- Internal I/O Connectors
- 1 x Power (ATX_PWR)2 x Power (CPU_PWR)1 x CPU Fan1 x Pump Fan6 x System Fan2 x Front Panel1 x Chassis Intrusion1 x Front Audio1 x Tuning Controller (JDASH)2 x Addressable V2 RGB LED2 x RGB LED1 x TPM pin TPM 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 2.0100 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- 1 x PCIe 5.0 x161 x PCIe 4.0 x162 x PCIe 3.0 x1
- Wi-Fi
- Yes (Wi-Fi)
