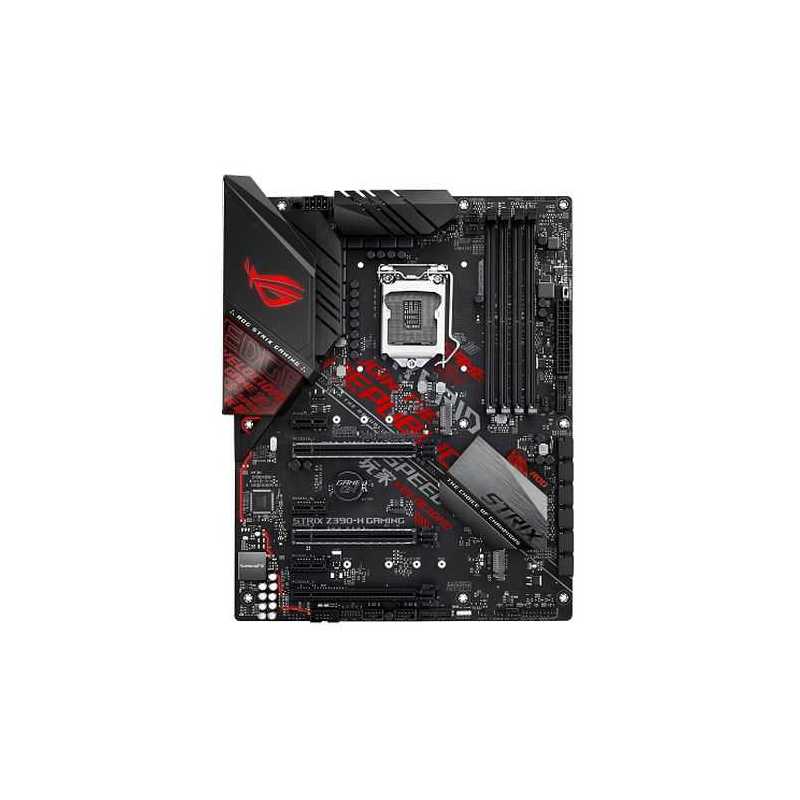

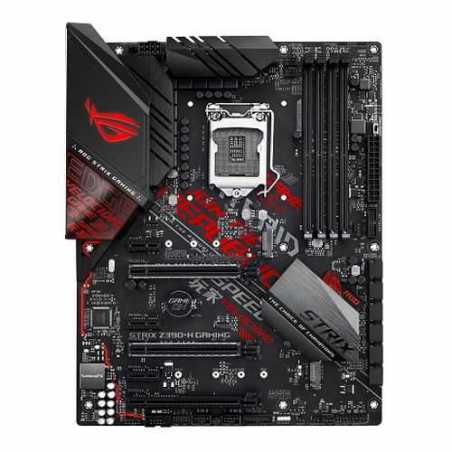

Asus ROG STRIX Z390-H GAMING, Intel Z390, 1151, ATX, 4 DDR4, XFire/SLI, HDMI, DP, RGB Lighting, M.2
£240.42
VAT included
Intel Z390 LGA 1151 ATX gaming motherboard with DDR4 4266 MHz+ support, dual M.2, SATA 6Gbps, HDMI, and USB 3.1 Gen 2
- LGA1151 socket for 9th/ 8th Gen Intel® Core™ desktop processors
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors
- Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action
- Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum
ROG Strix Z390-H Gaming revitalizes the classic ROG red-and-black color scheme, adding a futuristic cyber-text pattern for a stunning modern style. It's loaded with essentials, including the latest connectivity plus intuitive ROG software optimization. All this and more makes ROG Strix Z390-H Gaming the perfect choice for all types of gamer and any level of ambition.
Solid Hardware Specs for Gaming and More
With comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus support for faster memory and storage, ROG Strix Z390-H Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance
Design, Customization, and Setup
A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix Z390-H Gaming wonderfully easy.
Tune your Rig the Way you Want
The ROG Strix Z390-H Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.
The Power of AMD
Intel Z390 chipset
The Intel® Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
90MB0YU0-M0EAY0
Data sheet
- .
- 1 x Aura RGB, 1 x MemOK!_II switch, 1 x COM port, 1 x TPM, 1 x Front panel audio, 1 x System panel, 1 x Clear CMOS jumper
1 x Aura RGB1 x MemOK!_II switch1 x COM port1 x TPM1 x Front panel audio1 x System panel1 x Clear CMOS jumper - PCI Express
- "8th Gen CPUs
8th Gen CPUs: 2 x PCIe 3.0 x16 slots (support x16, x8/x8)Intel Z390 Chipset: 1 x PCIe 3.0 x16 slot (max. at x2 mode)3 x PCIe 3.0 x1 slots - Wireless
- -
- RAM Speeds
- 4133(OC)*/4000(OC)*/3866(OC)*/3733(OC)*/3600(OC)*/3466(OC)*/3400(OC)*/3333(OC)*/3300(OC)*/3200(OC)*/3000(OC)*/2800(OC)*/2666/2400/2133 MHz
- Accessories
- 2 x 2-in-1 SATA 6Gb/s cables, 1 x SLI HB Bridge (2-WAY-M), 1 x Ext Cable for RGB Strips (80cm), 1 x Fan holder, 1 x M.2 Screw Package, 1 x ROG Strix series sticker, 1 x ROG Strix thank you card, 1 x Pack of cable tie
2 x 2-in-1 SATA 6Gb/s cables1 x SLI HB Bridge (2-WAY-M)1 x Ext Cable for RGB Strips (80cm)1 x Fan holder1 x M.2 Screw Package1 x ROG Strix series sticker1 x ROG Strix thank you card1 x Pack of cable tie - USB Ports Supported
- "4 x USB 3.1 Gen2 (Type-A at back panel), 6 x USB 3.1 Gen1 (2 at back, 4 at mid-board), 4 x USB 2.0 (4 at mid-board)"
4 x USB 3.1 Gen2 (Type-A at back panel)6 x USB 3.1 Gen1 (2 at back, 4 at mid-board)4 x USB 2.0 (4 at mid-board) - Storage
- 6 x SATA III, 1 x M.2 Socket (2242/2260/2280) - SATA & PCIe, 1 x M.2 Socket (2242/2260/2280/22110) - PCIe
6 x SATA III1 x M.2 Socket (2242/2260/2280) - SATA & PCIe1 x M.2 Socket (2242/2260/2280/22110) - PCIe - RAID
- "RAID 0, 1, 5, 10"
RAID 0, 1, 5, 10 - Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- 1151 - Coffee Lake
Intel 1151 - Coffee Lake - Chipset
- Intel Z390
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports NVIDIA 2-Way/Quad-GPU SLI, Supports AMD 3-Way/Quad-GPU CrossFireX
Supports NVIDIA 2-Way/Quad-GPU SLISupports AMD 3-Way/Quad-GPU CrossFireX - PCI
- -
- LAN
- GB LAN
- Audio
- ROG SupremeFX S1220A 8-Channel High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse, 1 x HDMI, 1 x DisplayPort, 2 x USB 3.1 Gen1, 4 x USB3.1 Gen2, 1 x Anti-surge LAN, 5 x Audio jacks, 1 x Optical S/PDIF out
1 x PS/2 keyboard/mouse1 x HDMI1 x DisplayPort2 x USB 3.1 Gen14 x USB3.1 Gen21 x Anti-surge LAN5 x Audio jacks1 x Optical S/PDIF out - Internal I/O Connectors
- 2 x USB 3.1 Gen 1, 2 x USB 2.0, 6 x SATA 6Gb/s ports , 2 x M.2, 1 x 4-Pin CPU_FAN, 1 x 4-Pin CPU_OPT fan, 2 x 4-Pin Chassis fan, 1 x 4-Pin AIO_PUMP, 1 x CPU_OV, 1 x Thermal sensor, 1 x 24-pin EATX, 1 x 8-pin EATX 12V
2 x USB 3.1 Gen 12 x USB 2.06 x SATA 6Gb/s ports 2 x M.21 x 4-Pin CPU_FAN1 x 4-Pin CPU_OPT fan2 x 4-Pin Chassis fan1 x 4-Pin AIO_PUMP1 x CPU_OV1 x Thermal sensor1 x 24-pin EATX1 x 8-pin EATX 12V - CPU Support
- Click here for CPU support
See manufacturers link (next to product images) - Package Type
- Retail
- Package Weight
- 1.5400 kg
- Graphics Ports
- 1 x HDMI, 1 x DisplayPort
1 x HDMI1 x DisplayPort - Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- M.2 Slot(s)
- Yes
Yes (M.2) - No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes
Yes (RGB)
Specific References
- EAN13
- 4718017122429
