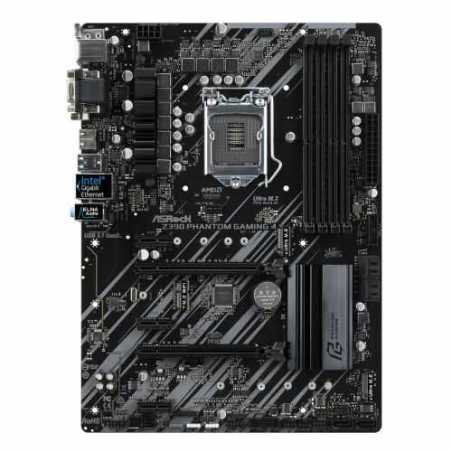

Asrock Z390 PHANTOM GAMING 4, Intel Z390, 1151, ATX, DDR4, CrossFire, VGA, DVI, HDMI, RGB Lighting
search
  • Asrock Z390 PHANTOM GAMING 4, Intel Z390, 1151, ATX, DDR4, CrossFire, VGA, DVI, HDMI, RGB Lighting, M.2
  • Asrock Z390 PHANTOM GAMING 4, Intel Z390, 1151, ATX, DDR4, CrossFire, VGA, DVI, HDMI, RGB Lighting
  • Asrock Z390 PHANTOM GAMING 4, Intel Z390, 1151, ATX, DDR4, CrossFire, VGA, DVI, HDMI, RGB Lighting
  • Asrock Z390 PHANTOM GAMING 4, Intel Z390, 1151, ATX, DDR4, CrossFire, VGA, DVI, HDMI, RGB Lighting
  • Asrock Z390 PHANTOM GAMING 4, Intel Z390, 1151, ATX, DDR4, CrossFire, VGA, DVI, HDMI, RGB Lighting

Asrock Z390 PHANTOM GAMING 4, Intel Z390, 1151, ATX, DDR4, CrossFire, VGA, DVI, HDMI, RGB Lighting, M.2

£136.14
VAT included
Stock status: Out of stock
Out of stock
  • Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
  • 10 Power Phase Design
  • Supports DDR4 4300MHz+ (OC)
  • 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • AMD Quad CrossFireX™ and CrossFireX™
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 USB 3.1 Gen2 (Rear Type-A+C), 6 USB 3.1 Gen1 (4 Front, 2 Rear)
  • Intel® Gigabit LAN
  • ASRock Polychrome SYNC



Rule your own Lighting Way - Polychrome RGB

In addition to the built-in LED illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.




Dual M.2 For SSD

Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.




ASRock Intel® 4-Layer Memory POOL Technology

POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.




Supports Type 22110 M.2

Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance




Intel® LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!




PCI-E STEEL SLOTS

The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.



Intel® Optane™ Memory Ready

Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.



Super Alloy Motherboard

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

10 Power Phase
Designed with an 10 Power Phase Design, this motherboard provides completely smooth power delivery to the CPU and offers unmatched overclocking capabilities and enhanced performance with the lowest temperature.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.




Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.




Solid Capacitor Design

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.




ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.




Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.




Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Quantity
Out of stock

  • Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
  • 10 Power Phase Design
  • Supports DDR4 4300MHz+ (OC)
  • 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • AMD Quad CrossFireX™ and CrossFireX™
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 USB 3.1 Gen2 (Rear Type-A+C), 6 USB 3.1 Gen1 (4 Front, 2 Rear)
  • Intel® Gigabit LAN
  • ASRock Polychrome SYNC



Rule your own Lighting Way - Polychrome RGB
In addition to the built-in LED illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.




Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.




ASRock Intel® 4-Layer Memory POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.




Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance




Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!




PCIe Steel Slots
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.



Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.






Super Alloy Motherboard

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

10 Power Phase
Designed with an 10 Power Phase Design, this motherboard provides completely smooth power delivery to the CPU and offers unmatched overclocking capabilities and enhanced performance with the lowest temperature.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.




Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.




Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.




ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.




Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.




Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
ASROCK
Z390 PHANTOM GAMING 4

Data sheet

.
2 x USB 3.1 Gen1, 1 x Performance Mode / Easy OC
2 x USB 3.1 Gen11 x Performance Mode / Easy OC
PCI Express
2 x PCIe 3.0 x16, 3 x PCIe 3.0 x1
2 x PCIe 3.0 x163 x PCIe 3.0 x1
Wireless
-
RAM Speeds
4300+(OC)*/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/, 3600(OC)/3200(OC)/2933(OC)/2800(OC)/2666/2400/2133 MHz
4300+(OC)*/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/ 3600(OC)/3200(OC)/2933(OC)/2800(OC)/2666/2400/2133 MHz
Accessories
Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 3 x Screws for M.2 Sockets
Quick Installation GuideSupport CDI/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets
USB Ports Supported
"2 x USB 3.1 Gen 2 (Type-A & C at back), 6 x USB 3.1 Gen 1 (2 at back, 4 at mid-board), 5 x USB 2.0 (2 at back, 3 at mid-board)"
2 x USB 3.1 Gen 2 (Type-A & C at back)6 x USB 3.1 Gen 1 (2 at back, 4 at mid-board)5 x USB 2.0 (2 at back, 3 at mid-board)
Storage
6 x SATA III, 1 x M.2 (2230/2242/2260/2280) - SATA & PCIe, 1 x M.2 ( 2230/2242/2260/2280/22110) - SATA & PCIe
6 x SATA III1 x M.2 (2230/2242/2260/2280) - SATA & PCIe1 x M.2 ( 2230/2242/2260/2280/22110) - SATA & PCIe
RAID
"RAID 0, 1, 5, 10"
RAID 0, 1, 5, 10
Warranty
3 Year Replacement Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
1151 - Coffee Lake
Intel 1151 - Coffee Lake
Chipset
Intel Z390
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
64GB
Multi-GPU Support
Supports AMD Quad-GPU CrossFireX
PCI
-
LAN
GB LAN
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
Back Panel I/O Ports
1 x Antenna Ports, 1 x PS/2 Mouse/Keyboard, 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 2 x USB 2.0, 1 x USB 3.1 Gen2 Type-A, 1 x USB 3.1 Gen2 Type-C, 2 x USB 3.1 Gen1, 1 x RJ-45 LAN, HD Audio Jacks
1 x Antenna Ports1 x PS/2 Mouse/Keyboard1 x D-Sub1 x DVI-D1 x HDMI2 x USB 2.01 x USB 3.1 Gen2 Type-A1 x USB 3.1 Gen2 Type-C2 x USB 3.1 Gen11 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x COM Port, 1 x TPM, 1 x Power LED and Speaker, 2 x RGB LED, 1 x Addressable LED, 1 x CPU Fan, 3 x Chassis/Water Pump Fan, 1 x 24 pin ATX, 1 x 8 pin 12V, 1 x Front Audio, 1 x Thunderbolt AIC, 2 x USB 2.0
1 x COM Port1 x TPM1 x Power LED and Speaker2 x RGB LED1 x Addressable LED1 x CPU Fan3 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio1 x Thunderbolt AIC2 x USB 2.0
CPU Support
Click here for CPU support
See manufacturers link (next to product images)
Package Type
Retail
Package Weight
1.2800 kg
Graphics Ports
1 x VGA, 1 x DVI-D, 1 x HDMI
1 x VGA1 x DVI-D1 x HDMI
Additional Features
See Overview
Graphics
Supports Intel HD Graphics
M.2 Slot(s)
Yes
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
RGB Lighting
Yes
Yes (RGB)

Specific References

EAN13
4717677336924
