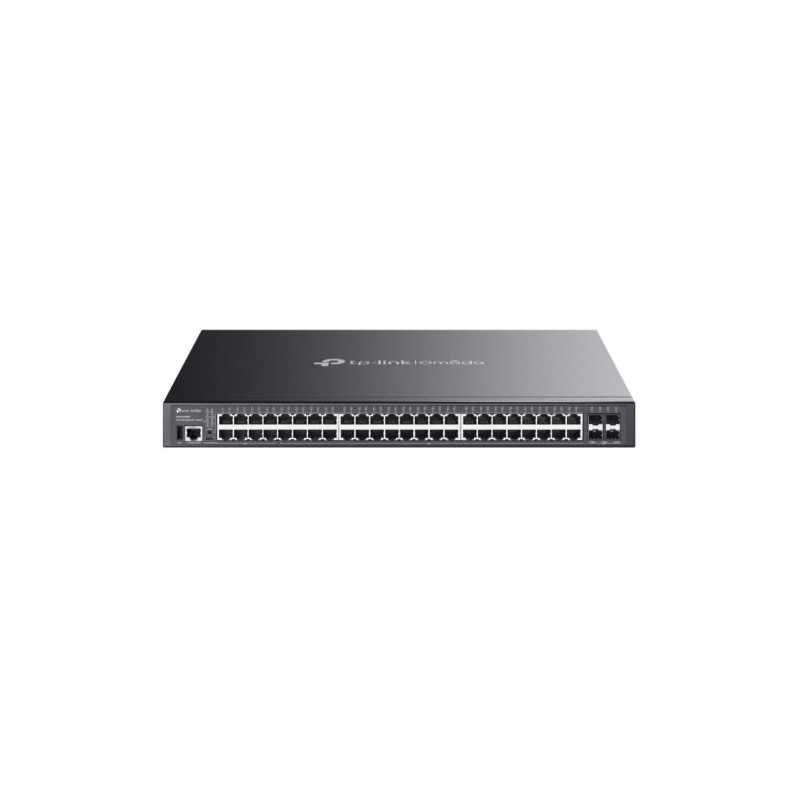

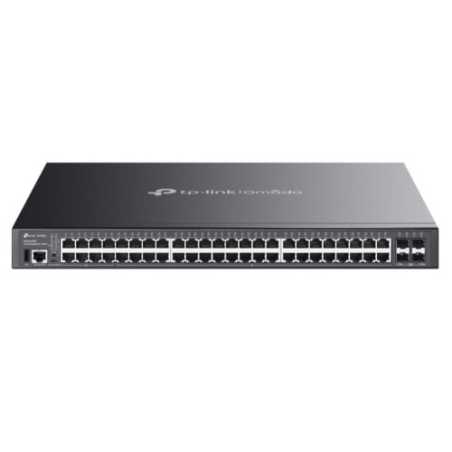

TP-LINK (SG5452XMPP) Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4x 10G Slots, Rackmountable
£1,092.85
VAT included
Delivered within 1-2 days.
Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4x 10G Slots
- 8x Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
- 40x Gigabit 802.3af/at PoE+ ports (Max 30W per port)
- 4x 10 Gbps SFP+ slots
- Up to 770W total PoE budget*
- Fast PoE and Perpetual PoE
- Physical stacking up to 4 units for built-in redundancy and performance
- L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
- Security strategies: ACL, Port Security, DoS Defend, 802.1X
- ERPS supports rapid protection and recovery in a ring topology
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
What This Product Does
Omada SG5452XMPP is a dependable entry-level L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts a 770W PoE budget,* 48x gigabit RJ45 ports (8x PoE++, 40x PoE+), 4x 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452XMPP offers a reliable networking solution for SMEs, and ISPs.
IEEE 802.3af/at/bt-compliant Power over Ethernet
8x IEEE 802.3af/at/bt-compliant and 40x IEEE 802.3af/at-compliant PoE ports supply up to 770W total power to 802.3af, 802.3at, and 802.3bt devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.
High-speed Connectivity and Powerful Stacking
48x gigabit RJ45 ports and 4x 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).*** The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG5452XMPP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors. The maximum power output of every single PoE++ port is 90W.
**Only one 10G RJ45 SFP+ module can be inserted at a time.
***These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
SG5452XMPP
1 Item
Data sheet
- .
- L2 and L2+ Features:Link AggregationSpanning Tree ProtocolPort-based and VLAN-based Loopback Detection802.3x Flow ControlERPSMirroringRSPANMAC Address TableMulticast
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Dimensions
- (WxDxH) 440 x 330 x 44 mm
- Power Supply
- 100-240 V~ 50/60 HzMax. Power Consumption:893.6 W (220V/50Hz) ( with 770 W PD connected @ 25 °C)942.7 W (110V/60Hz) ( with 770 W PD connected @ 25 °C)
- Interface(s)
- 48 x 10/100/1000 Mbps RJ45 Ports (8x PoE++, 40× PoE+)4 x 1/10 Gbps SFP+ Slots1 x USB 2.0 Port1 x RJ45 Console Port1 x USB Type-C Console Port
- Package Contents
- SG5452XMPP SwitchPower CordConsole CableRackmount KitsRubber FeetQuick Installation Guide
- Rackmountable
- Yes
- Number of Ports
- 48
- PoE Ports (RJ45)
- Standard: 802.3af/at/bt compliantPoE++ Ports: Ports 1~8 (up to 90W per Port)PoE+ Ports: Ports 9~48 (up to 30W per Port)Power Budget: 770WFast PoEPerpetual PoE
- Switching Capacity
- 176 Gbps per Unit
- Environment
- Operating Temperature: -5–40°CStorage Temperature: -40–70°C (-40–158°F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
- Quality of Service
- Class of ServiceBandwidth ControlVoice VLANUser-Defined OUISmoother PerformanceAction for Flows
- Mac Address Table
- 16 K
- Packet Forwarding Rate
- 130.94 Mpps
- Jumbo Frame
- 9 KB
- VLAN
- Max 4K VLAN Group (802.1q VLAN)802.1Q Tagged VLANMAC VLAN Entries: 60Multicast VLANManagement VLANVLAN VPN (QinQ): Max 256 entriesGVRPProtocol VLAN: Protocol Template 16, Protocol VLAN 12 entriesVoice VLANPrivate VLAN
- POE
- Yes
- Managed
- Yes
- Max RJ45 Transfer Rate
- 10/100/1000 Mbps
- Max SFP Transfer Rate
- 10G SFP
