Asus TUF GAMING A620AM-PLUS WIFI, AMD A620A, AM5, Micro ATX, 4 DDR5, HDMI, 2 DP, Wi-Fi 6, 2.5G LAN, 2x M.2
search
  • Asus TUF GAMING A620AM-PLUS WIFI, AMD A620A, AM5, Micro ATX, 4 DDR5, HDMI, 2 DP, Wi-Fi 6, 2.5G LAN, 2x M.2

Asus TUF GAMING A620AM-PLUS WIFI, AMD A620A, AM5, Micro ATX, 4 DDR5, HDMI, 2 DP, Wi-Fi 6, 2.5G LAN, 2x M.2

£145.89
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock

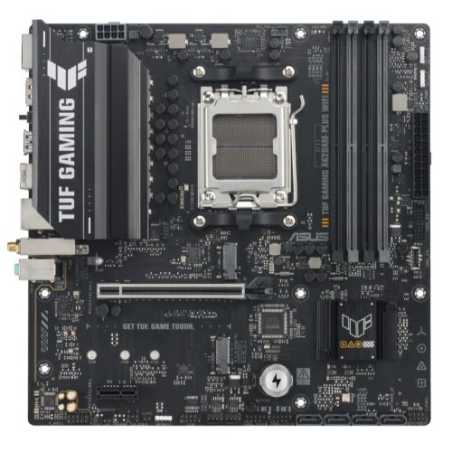

ASUS TUF GAMING A620AM-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability.

Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

  • AMD A620A mATX motherboard
  • Advanced AI PC ready
  • DDR5
  • PCIe 4.0 x16 slot
  • Dual PCIe 4.0 M.2 slots
  • Wi-Fi 6
  • Realtek 2.5Gb Ethernet
  • dual DisplayPort,
  • HDMI
  • Rear USB 10Gbps Type-A ports
  • Front USB 5Gbps Type-C connector
  • BIOS FlashBack
  • M.2 Q-Latch
  • Aura Sync





Intelligent Control
  • AI Cache Boost - Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.
  • UEFI BIOS - The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
  • ASUS DriverHub - Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
  • Armoury Crate - Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.





Digital Power Design

TUF GAMING A620AM-PLUS series motherboards feature an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
  • Six Layered PCB Design - The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
  • Digi+VRM Control - The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.





Memory & Storage
  • DRAM Overclocking Performance - Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
  • DDR5 Dominance - For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.
  • Asus AEMP - ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.
  • M.2 PCIe 4.0 Support - Dual M.2 slots support up to PCIe 4.0 and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fast data transfer speeds.





Cooler by Design
  • Enhanced VRM Heatsink - The extensive surface area of this heatsink covers the MOSFETs and chokes to improve thermal performance.
  • Multiple Temperature Sources - Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
  • Smart Fan Protection - A dedicated integrated circuit protects each fan header from excess heat and electrical currents.
  • Superb PCH Heatsink - A surface area for the chipset cooler maximizes system performance and heat dissipation.
  • 4-Pin PWM/DC Fan - All onboard fan headers support auto-detection of PWM or DC fans.
  • Cooler Compatibility - ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.





Connectivity
  • PCIe 4.0 for Graphics Card - TUF GAMING A620AM-PLUS series motherboards offer PCIe 4.0 slot connectivity for the GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
  • Rear USB 10Gbps Type-A - Extensive USB support ensures connections to a wide array of external devices. This motherboard includes two USB 10Gbps Type-A ports on the rear I/O panel that delivers transfer speeds of up to 10Gbps.
  • Front USB 5Gbps Type-C - This motherboard features a USB 5Gbps Type-C® front panel connector for speedy data transfers of up to 5Gbps.





Easy PC DIY
  • M.2 Q-Latch - The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
  • Q-LED Core - The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
  • BIOS FlashBack - BI0S FlashBack™ is a safe and simple way to update Bl0S. Just drop the (UEFI) BlOS file onto a FAT32-formatted USB stick, plug it into the USB BlOS FlashBack™ port, and press the button. Updates can even be performed without having memory or a CPU installed.





Protection
  • SafeSlot Core+ - SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
  • ESD Guards - ASUS added special TVS diodes to boost electrostatic discharge prevention by up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge – well above the industry standard.
  • TUF LANGuard - TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, helping to protect the motherboard from lightning strikes and static electricity.





Ultrafast Networking
  • WiFi 6 - WiFi 6 ensures stable connections and low latency.
  • 2.5Gb Ethernet - On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 2.5X faster than 1Gb connections.





Audio
  • Realtek 7.1 Channel Audio - The unique audio codec designed in close collaboration with Realtek for TUF GAMING A620AM-PLUS series motherboards feature an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.





Lighting
  • Outshine The Competition - ASUS Aura Sync offers synchronized lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.
  • Addressable Gen2 RGB Header - Automatically optimize lighting effects for the number of LEDs present in compatible ARGB gear.




ASUS
90MB1MZ0-M0EAY0

Data sheet

.
1 x Front Panel Audio1 x S/PDIF Out1 x 10-1 pin Front Panel System
Wireless
Wi-Fi 61x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.3
RAM Speeds
Up to 7600+MT/s(OC)
Accessories
2 x SATA 6Gb/s cables1 x ASUS Wi-Fi moving antenna1 x I/O shield2 x Screw packages for M.2 SSD1 x TUF GAMING sticker1 x Quick start guide
USB Ports Supported
Rear:2 x USB 10Gbps Type-A4 x USB 2.0Front:1 x USB 5Gbps Type-C2 x USB 5Gbps4 x USB 2.0
Storage
2 x SATA III3 x M.2Ryzen 9000 & 7000 Series CPUs:M.2_1 (2280) - PCIe 4.0 x4M.2_2 (2242/2260/2280) - PCIe 4.0 x4Ryzen 8000 Series CPUs:M.2_1 (2280) - PCIe 4.0 x4M.2_2 (2242/2260/2280) - PCIe 4.0 x4/x2
RAID
Ryzen 9000 Series CPUs: RAID 0/1/5/10Ryzen 8000 Series CPUs: RAID 0/1Ryzen 7000 Series CPUs: RAID 0/1/10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM5
Chipset
AMD A620A
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)ECC and Non-ECC Un-buffered DIMM*Supports AMD EXPOASUS AEMP*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
RAM Slots
4 x DIMM
Maximum Memory
256GB
LAN
2.5GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
2 x USB 10Gbps Type-A4 x USB 2.02 x DisplayPort1 x HDMI1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet3 x Audio jacks1 x BIOS FlashBack button1 x PS/2 keyboard/mouse combo
Internal I/O Connectors
1 x 4-pin CPU Fan2 x 4-pin Chassis Fan1 x 24-pin Main 1 x 8-pin +12V CPU2 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 5Gbps Type-C1 x USB 5Gbps2 x USB 2.03 x Addressable RGB Gen21 x Clear CMOS1 x COM Port
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI2 x DisplayPort
Additional Features
See Overview
Graphics
Integrated GraphicsGraphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
2.5GB LAN
PCI/PCI Express
Ryzen 9000 & 7000 Series CPUs:1 x PCIe 4.0 x16 (supports x16 mode)Ryzen 8000 Series CPUs:1 x PCIe 4.0 x16 (supports x8/x4 mode)AMD B850 Chipset:1 x PCIe 3.0 x1
Wi-Fi
Yes (Wi-Fi)
