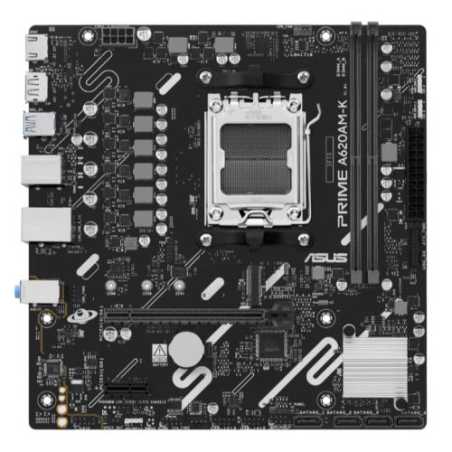

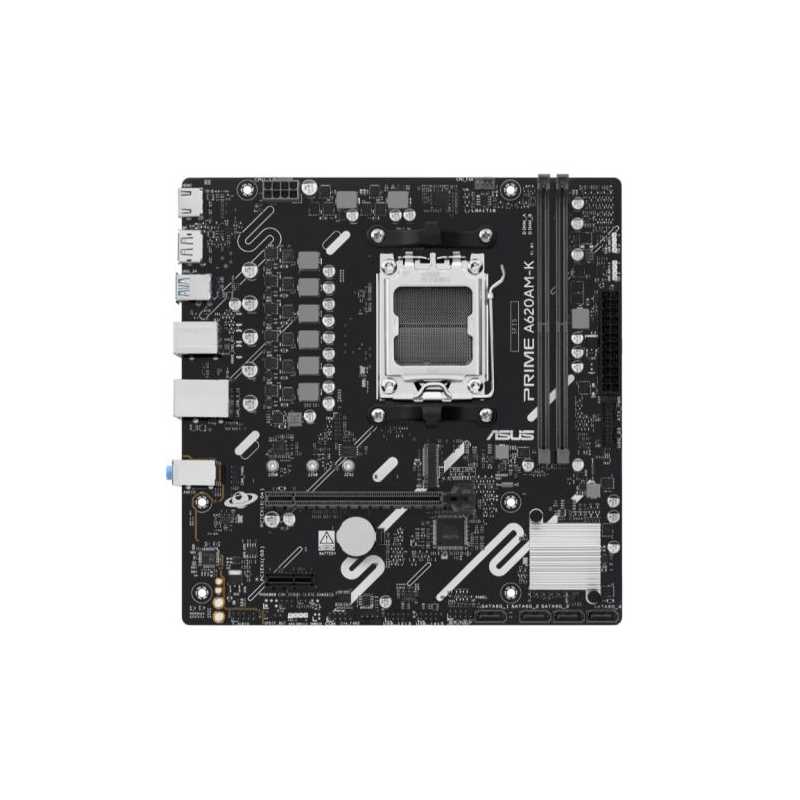

Asus PRIME A620AM-K, AMD A620A, AM5, Micro ATX, 2 DDR5, HDMI, DP, GB LAN, 1x M.2
search
  • Asus PRIME A620AM-K, AMD A620A, AM5, Micro ATX, 2 DDR5, HDMI, DP, GB LAN, 1x M.2

Asus PRIME A620AM-K, AMD A620A, AM5, Micro ATX, 2 DDR5, HDMI, DP, GB LAN, 1x M.2

£103.61
VAT included
Stock status: Very low
Last 10 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.

The PRIME A620AM-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  • AMD A620A (AM5 Socket) micro-ATX motherboard
  • DDR5
  • PCIe 4.0 x16 and PCIe 4.0 M.2 support
  • DisplayPort
  • HDMI
  • Rear and front USB 5Gbps Type-A
  • SATA 6 Gbps
  • Aura Sync





Performance
  • Digital Power Design - PRIME A620AM-K features 6+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.





Enhanced Memory & Storage Performance
  • Enhanced DDR5 performance - Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME A620AM-K maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits. For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance. For those looking to surpass stock DDR5 speeds, the PRIME A620AM-K offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.
  • PCIe 4.0 M.2 Support - PRIME A620AM-K offers one M.2 slot that supports data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.





Cooler by design

The PRIME A620AM-K motherboard is engineered with onboard chipset heatsink and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
  • ASUS Fan Xpert 2+ - ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.





Empowering connections

This motherboard offers a versatile range of connectivity, including support for PCIe 4.0 slot, 1Gb Ethernet and an arsenal of USB ports connection.
  • Realtek 1Gb Ethernet - Realtek 1Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
  • High Speed Transferring - Numerous USB ports support high-end rigs loaded with peripherals, including four rear USB 5Gbps Type-A ports and a front USB 5Gbps Type-A connector for transmission speeds of up to 5Gbps





Personalization

The PRIME A620AM-K enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
  • UEFI BIOS - The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
  • ASUS DriverHub - Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
  • Armoury Crate - Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
  • Aura Sync - Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
  • Addressable Gen2 RGB headers - Three addressable RGB Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.





DIY friendly

The PRIME A620AM-K motherboard features EZ PC DIY that simplify and speed up the PC building process, making DIY easy and convenient.
  • SafeSlot Core - SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots.
  • Q-LED Core - The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.




ASUS
90MB1GX0-M0EAY0
10 Items

Data sheet

.
1 x S/PDIF Out1 x SPI TPM (14-1 pin)1 x 10-1 pin Front Panel System
Wireless
-
RAM Speeds
7200+MT/s(OC) with Ryzen 9000 & 7000 CPUs7600+MT/s(OC) with Ryzen 8000 CPUs
Accessories
2 x SATA 6Gb/s cables1 x I/O shield1 x Screw package for M.2 SSD1 x Quick start guide
USB Ports Supported
Rear:4 x USB 5Gbps Type-A2 x USB 2.0Front:2 x USB 5Gbps4 x USB 2.0
Storage
2 x SATA III1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
RAID
Ryzen 9000 Series CPUs: RAID 0/1/5/10Ryzen 8000 Series CPUs: RAID 0/1Ryzen 7000 Series CPUs: RAID 0/1/10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM5
Chipset
AMD A620A
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)Non-ECC Un-buffered DIMM*Supports AMD (EXPOASUS Enhanced Memory Profile (AEMP)*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
RAM Slots
2 x DIMM
Maximum Memory
128GB
LAN
GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
4 x USB 5Gbps Type-A2 x USB 2.01 x DisplayPort1 x HDMI1 x Realtek 1Gb Ethernet3 x Audio jacks1 x PS/2 keyboard/mouse combo
Internal I/O Connectors
1 x 4-pin CPU Fan2 x 4-pin Chassis Fan1 x 24-pin Main Power1 x 8-pin +12V CPU Power1 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 5Gbps2 x USB 2.03 x Addressable RGB Gen21 x Clear CMOS1 x COM Port1 x Front Panel Audio
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated GraphicsGraphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
PCI/PCI Express
Ryzen 9000 & 7000 Series CPUs:1 x PCIe 4.0 x16 (supports x16 mode)Ryzen 8000 Series CPUs:1 x PCIe 4.0 x16 (supports x8/x4 mode)AMD B850 Chipset:1 x PCIe 3.0 x1
