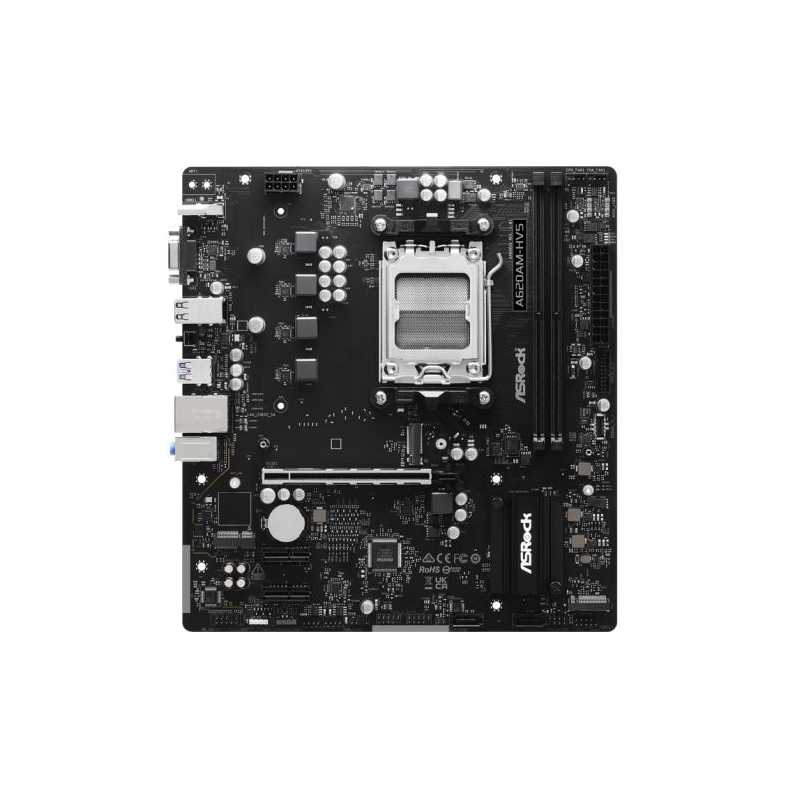

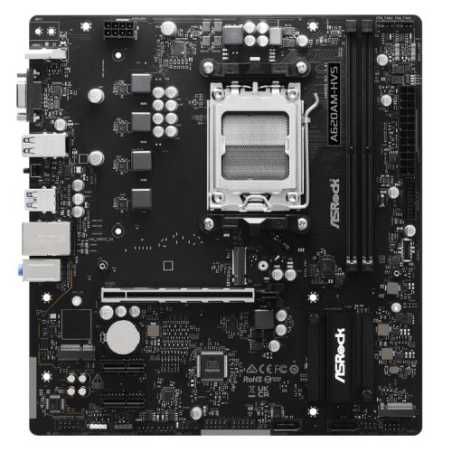

Asrock A620AM-HVS, AMD A620A, AM5, Micro ATX, 2 DDR5, VGA, HDMI, GB LAN, 2x M.2
search
  • Asrock A620AM-HVS, AMD A620A, AM5, Micro ATX, 2 DDR5, VGA, HDMI, GB LAN, 2x M.2

Asrock A620AM-HVS, AMD A620A, AM5, Micro ATX, 2 DDR5, VGA, HDMI, GB LAN, 2x M.2

£79.14
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock



Built to deliver reliable performance with versatile features, perfect for daily tasks.

  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • Dr.MOS Power Design, 2oz PCB
  • 2 x DDR5 DIMMs
  • Supports Dual Channel, up to 6800+ (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: 1 HDMI, 1 D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 1 Hyper M.2 (PCIe Gen4x4)
  • 1 Ultra M.2 (PCIe Gen3x4 & SATA3)
  • 2 SATA3
  • 1 USB 3.2 Gen1 Type-C (Front)
  • 6 USB 3.2 Gen1 (4 Rear, 2 Front)
  • 8 USB 2.0 (4 Rear, 4 Front)
  • Realtek Gigabit LAN
  • Supports BIOS Flashback






2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.






Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.






Intelligent Cooling Design
  • PWM/DC Fan Support - ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
  • Fan-Tastic Tuning - ASRock Phantom Gaming Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.





Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.






Polychrome RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.






SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.






M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.






EZ Setting
  • Auto Driver Installer - No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
  • BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.





Post Status Checker

Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.



ASROCK
A620AM-HVS

Data sheet

Wireless
-
RAM Speeds
Up to 6800+(OC)
Accessories
1 x I/O Shield2 x SATA Data Cables1 x Screw for M.2 Socket
USB Ports Supported
Rear:4 x USB 5Gbps Type-A4 x USB 2.0Front:1 x USB 5Gbps Type-C2 x USB 5Gbps Type-A4 x USB 2.0
Storage
2 x SATA III2 x M.2M.2_1 (2280) - PCIe 4.0 x4M.2_2 (2260/2280) - SATA & PCIe 3.0 x4
RAID
Supports RAID 0 and RAID 1 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM5
Chipset
AMD A620A
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)Supports ECC/non-ECC, un-buffered memorySupports XMP and EXPO
RAM Slots
2 x DIMM
Maximum Memory
128GB
LAN
GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Back Panel I/O Ports
2 x Antenna Mounting Points1 x VGA1 x HDMI4 x USB 3.2 Gen1 Type-A4 x USB 2.01 x RJ-45 LAN1 x BIOS Flashback ButtonHD Audio Jacks
Internal I/O Connectors
1 x Power LED and Speaker1 x RGB LED3 x Addressable LED1 x CPU Fan3 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Panel Audio2 x USB 2.01 x USB 3.2 Gen11 x Front Panel Type C USB 3.2 Gen1
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
To be confirmed
Graphics Ports
1 x VGA1 x HDMI
Additional Features
See Overview
Graphics
Integrated GraphicsGraphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
PCI/PCI Express
1 x PCIe 4.0 x16 (PCIE1), supports x16 mode*2 x PCIe 3.0 x1 (PCIE2 and PCIE3)*PCIE1 will run at Gen4x16 with 9000 and 7000 series CPUs, Gen4x8 with 8000 (Phoenix 1) series CPUsand Gen4x4 with 8000 (Phoenix 2) series CPUs.
