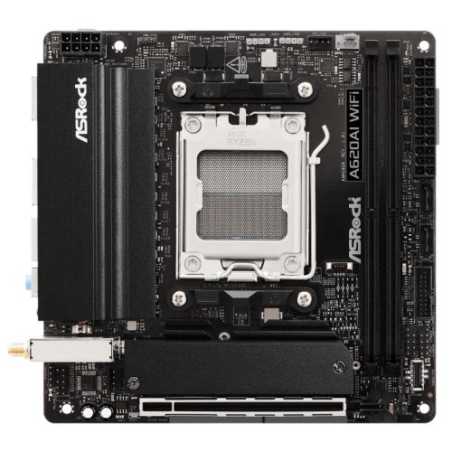

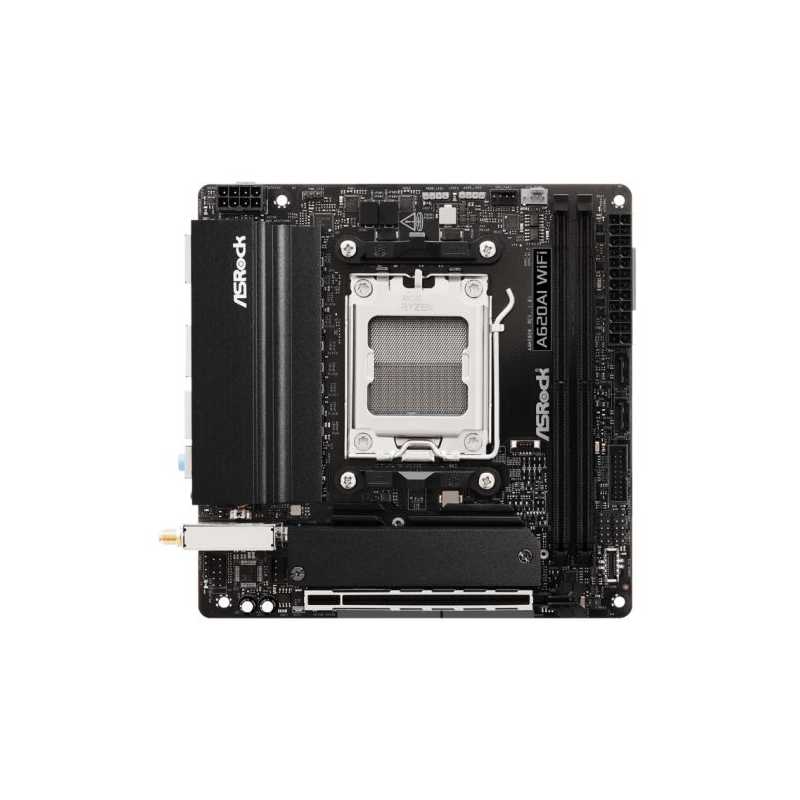

Asrock A620AI WIFI, AMD A620A, AM5, Mini ITX, 2 DDR5, HDMI, Wi-Fi 6E, 2.5G & GB LAN, 2x M.2
search
  • Asrock A620AI WIFI, AMD A620A, AM5, Mini ITX, 2 DDR5, HDMI, Wi-Fi 6E, 2.5G & GB LAN, 2x M.2

Asrock A620AI WIFI, AMD A620A, AM5, Mini ITX, 2 DDR5, HDMI, Wi-Fi 6E, 2.5G & GB LAN, 2x M.2

£138.79
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock



Built to deliver reliable performance with versatile features, perfect for daily tasks.

  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • 8+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC
  • 2 x DDR5 DIMMs
  • Supports Dual Channel, up to 8200+ (OC)
  • 1 PCIe 4.0 x16
  • Graphics Output Options: 1 HDMI
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 1 Hyper M.2 (PCIe Gen4x4)
  • 1 Ultra M.2 (PCIe Gen3x4)
  • 2 SATA3
  • 1 USB 3.2 Gen2 Type-C (Rear)
  • 2 USB 3.2 Gen2 (Rear)
  • 1 USB 3.2 Gen1 Type-C (Front)
  • 3 USB 3.2 Gen1 (1 Rear, 2 Front)
  • 4 USB 2.0 (2 Rear, 2 Front)
  • Realtek 2.5G LAN, Gigabit LAN
  • 802.11axe WiFi 6E + Bluetooth
  • Supports BIOS Flashback









Optimized VRM Design
  • 8+2+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
  • Dr. MOS - Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
  • Hi-Density Power Connector - CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.





8 Layer PCB

The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!






DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.






Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.






Intelligent Cooling Design
  • Aluminum Heatsink - The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
  • PWM/DC Fan Support - ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
  • Fan-Tastic Tuning - ASRock Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.





Wi-Fi 6E 802.11axe

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.






Dual LAN Design

Elevate your network's performance, security, and flexibility with our Dual LAN configuration. Experience 2.5Gbps and Gigabit speeds, while benefiting from failover protection, VLAN segmentation, and more.






Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.






Polychrome RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.






SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.






EZ Setting
  • Auto Driver Installer - No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
  • BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.




ASROCK
A620AI WIFI

Data sheet

Wireless
802.11ax Wi-Fi 6E ModuleSupports IEEE 802.11a/b/g/n/ac/axeSupports Dual-Band 2x2 with ext 6GHz band support2 antennas - 2 (Transmit) x 2 (Receive) diversity techSupports Bluetooth 5.2 + High speed class IISupports MU-MIMO
RAM Speeds
Up to 8200+(OC)
Accessories
1 x I/O Shield2 x SATA Data Cables2 x ASRock WiFi 2.4/5/6 GHz Antennas2 x Screws for M.2 Sockets
USB Ports Supported
Rear:1 x USB 10Gbps Type-C1 x USB 10Gbps Type-A1 x USB 5Gbps Type-A2 x USB 2.0Front:1 x USB 5Gbps Type-C2 x USB 5Gbps Type-A2 x USB 2.0
Storage
2 x SATA III2 x M.2M.2_1 (2280) - PCIe 4.0 x4M.2_2 (2280) - SATA & PCIe 3.0 x4
RAID
Supports RAID 0 and RAID 1 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Mini ITX
Socket
AMD AM5
Chipset
AMD A620A
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)Supports ECC/non-ECC, un-buffered memorySupports XMP and EXPO
RAM Slots
2 x DIMM
Maximum Memory
128GB
LAN
2.5GB LAN & GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Back Panel I/O Ports
2 x Antenna1 x HDMI2 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2 Type-C1 x USB 3.2 Gen12 x USB 2.02 x RJ-45 LAN1 x BIOS Flashback ButtonHD Audio Jacks
Internal I/O Connectors
2 x Addressable LED1 x CPU Fan1 x Chassis Fan1 x AIO Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Panel Audio1 x USB 2.01 x USB 3.2 Gen11 x Front Panel Type C USB 3.2 Gen1
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
To be confirmed
Graphics Ports
1 x HDMI
Additional Features
See Overview
Graphics
Integrated GraphicsGraphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
2 x LAN
Max LAN Speed
2.5GB LAN
PCI/PCI Express
1 x PCIe 4.0 x16 (supports x16 mode)**will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
Wi-Fi
Yes (Wi-Fi)
