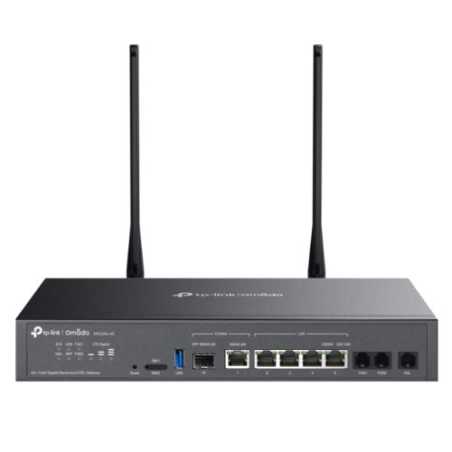

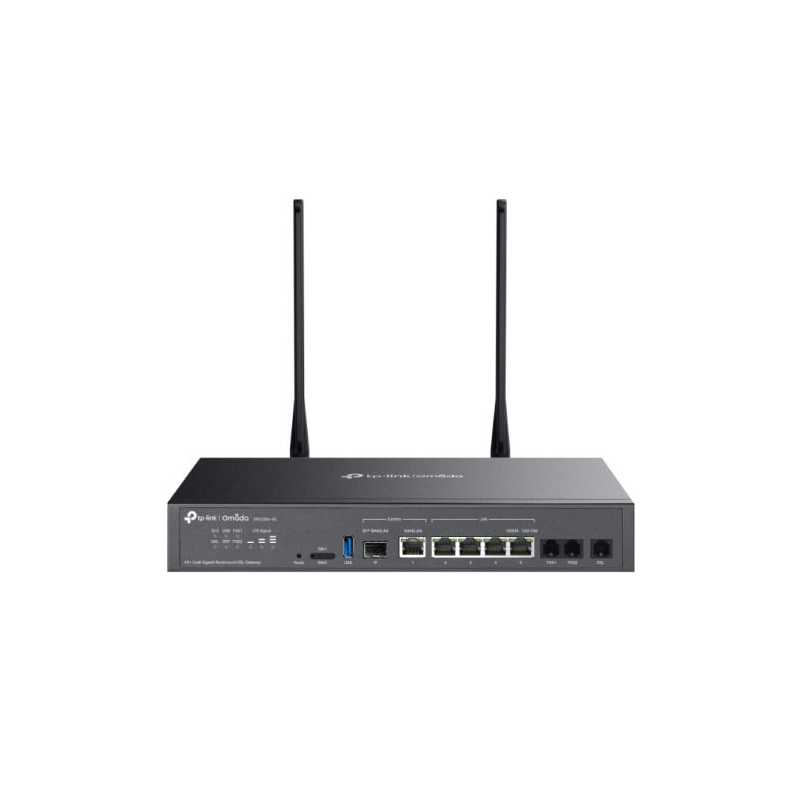

TP-LINK (DR3220v-4G) Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway, 4G+ Cat6 up to 300Mbps, VDSL2 35b, USB, VoIP Support, Central
£407.15
VAT included
Delivered within 1-2 days.
Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway
- Support 4G+ Cat6 up to 300 Mbps
- Super VDSL (VDSL2 35b): Supports 350Mbps DSL Access
- VDSL2/ADSL2+/ADSL2/ADSL Compatibility
- 1x DSL Port, 2x FXS Ports, 1x Gigabit SFP/RJ45 Combo WAN/LAN Port, 4x Gigabit RJ45 LAN Ports, 1x USB 3.0 Port
- 2x Nano SIM for 4G/LTE Failover
- DPI Security Support
- IPSec / PPTP / L2TP / OpenVPN / WireGuard / GRE / SSL VPN
- Load Balancing Across DSL, 4G, and Ethernet WAN for Optimized Connectivity
- Centralized Cloud Management
- Desktop / Rack-Mounting
Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports Super VDSL (VDSL2 35b) and is compatible with VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Versatile Connectivity
DR3220v-4G's compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, 4G access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.
High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
DR3220V-4G
6 Items
Data sheet
- .
- Management Features:Automatic Device DiscoveryIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot ScheduleCaptive Portal Configuration
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Additional Features
- Flash: 256 MB NANDDRAM: 512 MB DDR4Desktop / Rack-mountingIP-based Bandwidth ControlLoad BalanceIP-based Session Limit
- Dimensions
- (WxDxH) 294 x 180 x 44 mm (Antenna dimensions notincluded)
- Type
- VDSL2/ADSL2 Router
- Power Supply
- 100-240V/50-60Hz 0.6AMax Power Consumption:8.55 W (No Link)24.4 W (Full load + USB)
- Interface(s)
- 1 x Combo Gigabit SFP/RJ45 (1 SFP WAN/LAN + 1 WAN/LAN )4 x RJ45 Gigabit LAN1 x DSL Port2 x FXS Ports1 x Dual-SIM Nano SIM slot (4G+ Cat6)
- Package Contents
- DR3220v-4GPower CordEthernet CablePhone CableRubber FeetSIM Card Eject PinRackmount KitAntenna Extension BaseQuick Installation Guide
- Wireless Functions
- -
- Button(s)
- Reset Button
- Connectivity
- Wired
- Max Wired Transfer Rate
- 10/100/1000 Mbps
- Signal Rate
- Support 4G+ Cat6 up to 300 MbpsSuper VDSL (VDSL2 35b): Supports 350Mbps DSL Access
- Environment
- Operating Temperature: 0C°~40°C (32°F ~104°F)Storage Temperature: -40°C to 70°C (-40 °F to 158 °F)Operating Humidity: 10% to 90% non-condensingStorage Humidity: 5% to 90% non-condensing
- Security
- Access Control:Source/Destination IP Based Access ControlFiltering:Web Group FilteringURL FilteringWeb SecurityARP Inspection:Sending GARP PacketsARP ScanningIP-MAC Binding:Attack DefenseTCP/UDP/ICMP Flood DefenseBlock TCP Scan (Stealth FIN/X
- DHCP
- DHCP ServerDHCPv6 PD Server (only in Standalone Mode)DHCP Options CustomizationDHCP Address ReservationMulti-IP InterfacesMulti-Net DHCP
- Antenna(s)
- LTE: Two 3dBi Omnidirectional Detachable Antennas
- Dynamic DNS
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
- USB Application
- Supports USB LTE dongle and USB Storage
- Port/NAT Forwarding
- 66 Byte Packet Forwarding Rate:1,453,489 pps / 1,453,488 pps1,518 Byte Packet Forwarding Rate:81274 pps/ 91275 pps
