ASRock H810M-H Intel Socket Motherboard, 2 x DDR5 DIMM Slots, 1 x Hyper M.2 Socket , ASRock Intel 4-Layer Memory POOL 1 x HDMI P

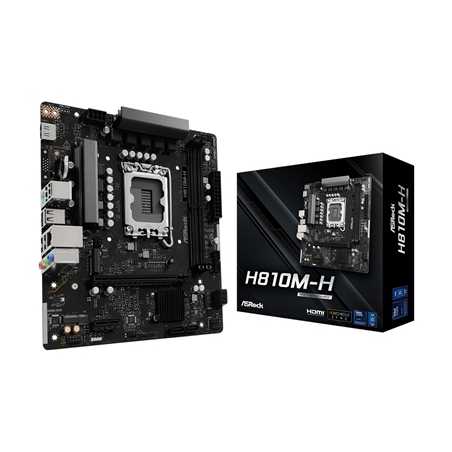

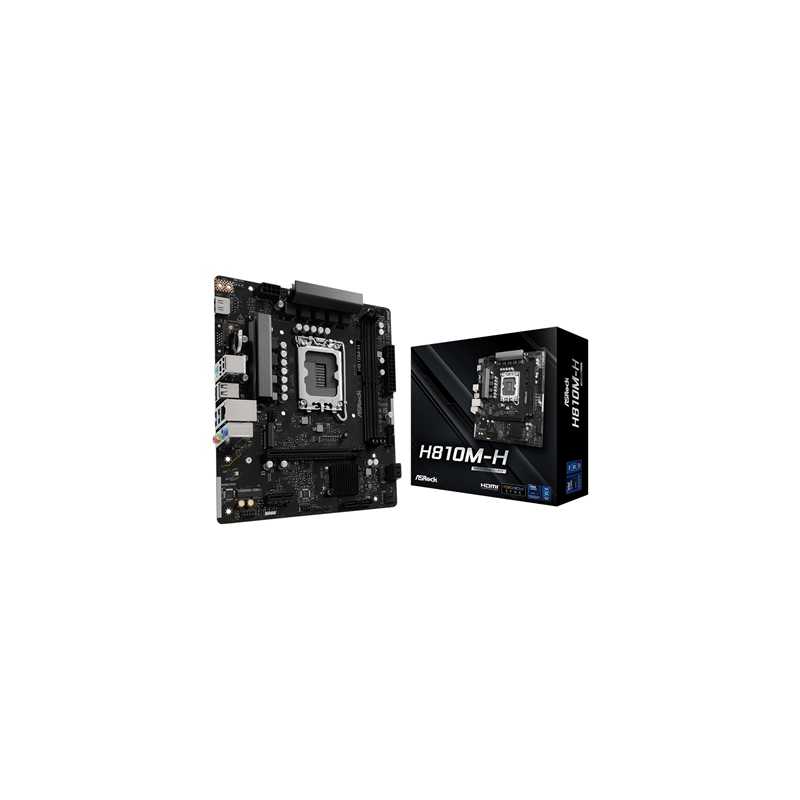

ASRock H810M-H

X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.

High Speed M.2 Solution
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Intelligent Cooling Design
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!



Unique Feature

Superb Productivity
Dual Channel DDR5
Rock-Solid Durability
6+1+1+1+1 Power Phase
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology

EZ Update
ASRock Auto Driver Installer

CPU
Supports Intel Core Ultra Processors (Series 2) (LGA1851)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration

Chipset
Intel H810

Memory
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 6400
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 128GB
Supports Intel Extreme Memory Profile (XMP) 3.0x

BIOS
256Mb AMI UEFI Legal BIOS with GUI support

Graphics
Intel Xe LPG Graphics Architecture
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H

Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
1 x PCIe 4.0 x1 Slot (PCIE2)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage
Chipset:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors

USB
Chipset:
4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
6 x USB 2.0 (4 Rear, 2 Front)

Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

Rear Panel I/O
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Polychrome SYNC
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

Accessories
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket

Form Factor
Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

OS
Microsoft Windows 11 64-bit

Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
