- Online only
Netac Basic NTBSD5P56SP-16 8GB (1x 16GB) DIMM System Memory, 5600MHz, DDR5, CL46 - Bulk
£187.11
VAT included
Delivered within 1-2 days.

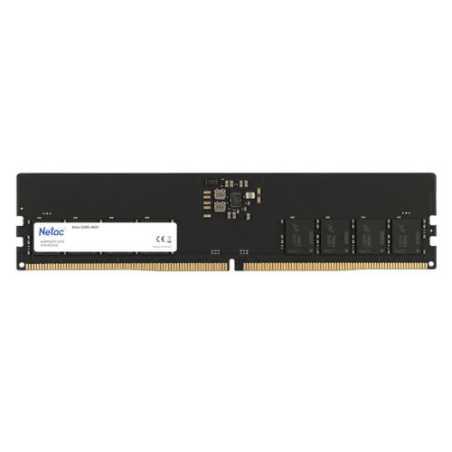

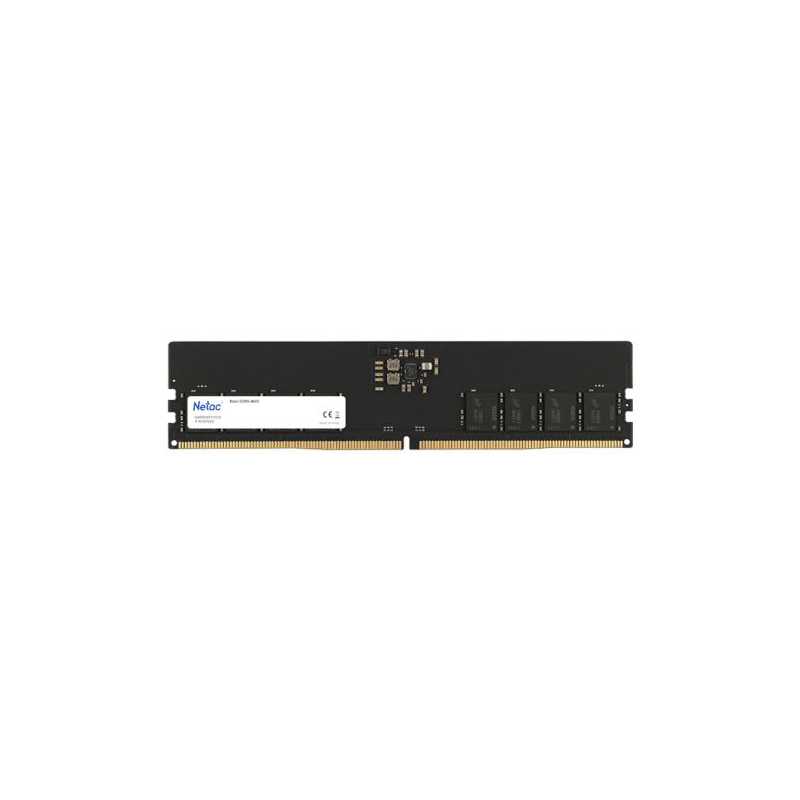

Netac NTBSD5P56SP-16 16GB DIMM System Memory, DDR5, 5600MHz, 1 x 16GB, 288 Pin, 1.35v, CL46-45-45-90 Bulk Packed
Netac Unbuffered DDR5 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules)are low power, high-speed operation memory modules that use DDR5 SDRAM devices. Each 288- pin DIMM uses gold contact fingers. The SDRAM Unbuffered DIMM is intended for use as main memory when installed in systems such as PCs.
Features
DRAM VDD/VDDQ = 1.1V Typical / DRAM VPP = 1.8V Typical / VDDSPD = 1.8V to 2.0V
32 Bank with x4/x8 / 16 Bank with x16
8 BG(Bank Group) for X4/X8/X16 configurations
BL16, BC8 OTF, BL32, BL32 OTF supported
Same Bank Refresh
Input Clock Frequency Change
Multi-Purpose Command (MPC)
Per DRAM Addressability (PDA)
Connectivity Test (CT) / ZQ Calibration
DFE (Decision Feedback Equalization) for DQ
DQS Interval Oscillator
On-Die ECC
CRC (Cyclic Redundancy Check)
Package Output Driver Test Mode
Memory Capacity
16GB (1 x 16GB)
Memory Type
DDR5
Module Type
DIMM
Memory Speed
DDR5-5600MHz
Pin Configuration
288-pin
Registered/Unbuffered
Unbuffered
Error Correction
Non-ECC
CL-tRCD-tRP-tRAS
46-45-45-90
Heat Sink
/
Working Voltage
1.1v
Netac Unbuffered DDR5 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules)are low power, high-speed operation memory modules that use DDR5 SDRAM devices. Each 288- pin DIMM uses gold contact fingers. The SDRAM Unbuffered DIMM is intended for use as main memory when installed in systems such as PCs.
Features
DRAM VDD/VDDQ = 1.1V Typical / DRAM VPP = 1.8V Typical / VDDSPD = 1.8V to 2.0V
32 Bank with x4/x8 / 16 Bank with x16
8 BG(Bank Group) for X4/X8/X16 configurations
BL16, BC8 OTF, BL32, BL32 OTF supported
Same Bank Refresh
Input Clock Frequency Change
Multi-Purpose Command (MPC)
Per DRAM Addressability (PDA)
Connectivity Test (CT) / ZQ Calibration
DFE (Decision Feedback Equalization) for DQ
DQS Interval Oscillator
On-Die ECC
CRC (Cyclic Redundancy Check)
Package Output Driver Test Mode
Memory Capacity
16GB (1 x 16GB)
Memory Type
DDR5
Module Type
DIMM
Memory Speed
DDR5-5600MHz
Pin Configuration
288-pin
Registered/Unbuffered
Unbuffered
Error Correction
Non-ECC
CL-tRCD-tRP-tRAS
46-45-45-90
Heat Sink
/
Working Voltage
1.1v
NTBSD5P56SP-16
20 Items
Data sheet
- Warranty
- Lifetime
- Form Factor
- DIMM
- DDR Type
- DDR5
- Package Type
- Retail
- Package Weight
- 0.0300 kg
- Heatsink
- No
- Series
- Netac Basic
- Size
- 1 x 16GB
- Speed
- 5600MHz
- Compliance
- PC5-44800
- Pins
- 288-pin
- CAS Latency
- CL46
- Data Integrity Check
- ECC
- Voltage
- 1.1V
- Additional Information
- See Overview
- Timings
- 46-45-45-90
- Capacity
- 16GB
- LED Lighting
- -
- Individual Module Size
- 16GB
- Total Capacity
- 16GB Total
- RGB
- No
