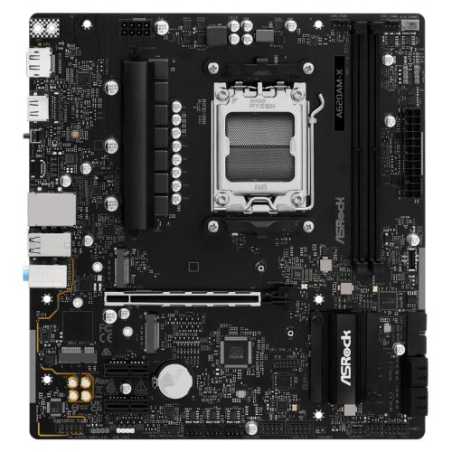

Asrock A620AM-X, AMD A620A, AM5, Micro ATX, 2 DDR5, HDMI, DP, 2.5G LAN, 2x M.2
£87.22
VAT included
Delivered within 1-2 days.
X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 6+1+1 Power Design, Dr.MOS for VCore
- 2 x DDR5 DIMMs
- Supports Dual Channel, up to 8000+ (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec
- 2 Hyper M.2 (PCIe Gen4x4)
- 4 SATA3
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
- 5 USB 3.2 Gen1 (3 Rear, 2 Front)
- 6 USB 2.0 (2 Rear, 4 Front)
- Realtek 2.5G LAN
- Supports BIOS Flashback
Optimized VRM Design
- Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
- Dr. MOS - Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.
- Hi-Density Power Connector - CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Intelligent Cooling Design
- Aluminum Heatsink - The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
- PWM/DC Fan Support - ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
- Fan-Tastic Tuning - ASRock Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Polychrome RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
EZ Setting
- Auto Driver Installer - No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.
Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.
A620AM-X
20 Items
Data sheet
- .
- 1 x Front Panel Type-C USB 3.2 Gen1
- Wireless
- -
- RAM Speeds
- Up to 8000+(OC)
- Accessories
- 1 x User Manual1 x I/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets
- USB Ports Supported
- Rear:1 x USB 5Gbps Type-C3 x USB 5Gbps Type-A2 x USB 2.0Front:1 x USB 5Gbps Type-C2 x USB 5Gbps Type-A4 x USB 2.0
- Storage
- 4 x SATA III2 x M.2M.2_1 (2280) - PCIe 4.0 x4M.2_2 (2260/2280) - PCIe 4.0 x4
- RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- AMD AM5
- Chipset
- AMD A620A
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports ECC/non-ECC, un-buffered memorySupports XMP and EXPO
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 128GB
- LAN
- 2.5GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna Mounting Points1 x HDMI1 x DisplayPort 1.41 x USB 3.2 Gen1 Type-C3 x USB 3.2 Gen1 Type-A2 x USB 2.01 x RJ-45 LAN1 x BIOS Flashback ButtonHD Audio Jacks
- Internal I/O Connectors
- 1 x SPI TPM1 x Power LED and Speaker1 x RGB LED3 x Addressable LED2 x CPU Fan3 x Chassis Fan1 x AIO Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Panel Audio2 x USB 2.01 x USB 3.2 Gen1
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- To be confirmed
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- 1 x PCIe 4.0 x16 (PCIE1), supports x16 mode2 x PCIe 3.0 x1 (PCIE2 and PCIE3)
